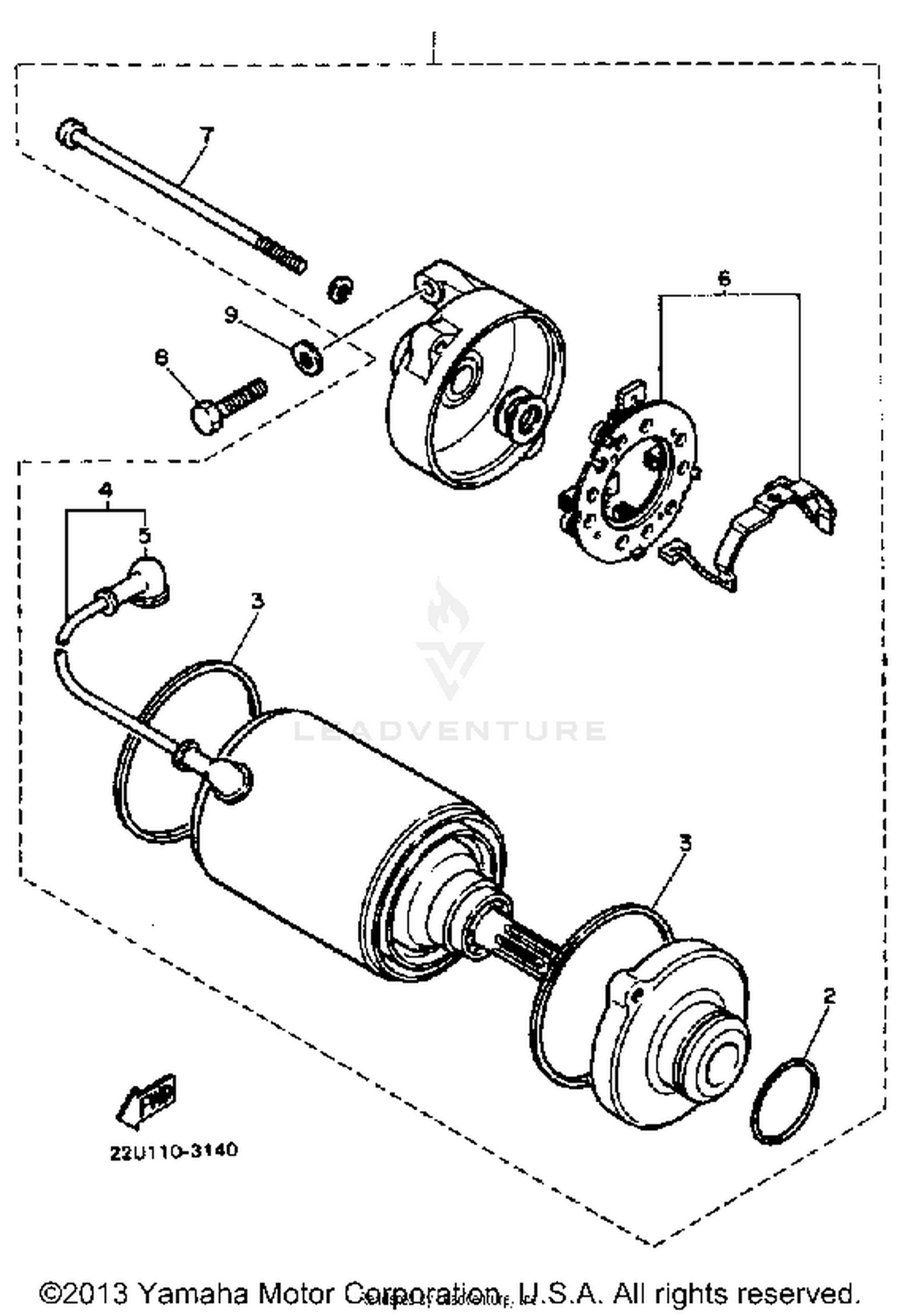

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY
22U-81800-60-00
Superseded by 3JB-81890-00-00
|
$542.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
5H0-81847-01-00
|
$31.99 | ||
|
Unavailable |
|||
|
#3
GASKET
4G0-81844-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE, STARTER
22U-81815-00-00
|
$39.36 | ||
|
Unavailable |
|||
|
#5
CAP
5H0-81871-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#6
BRUSH HOLDER ASSEMBLY
1VJ-81840-00-00
|
$103.99 | ||
|
Unavailable |
|||
|
#7
BOLT
22U-81826-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#8
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
