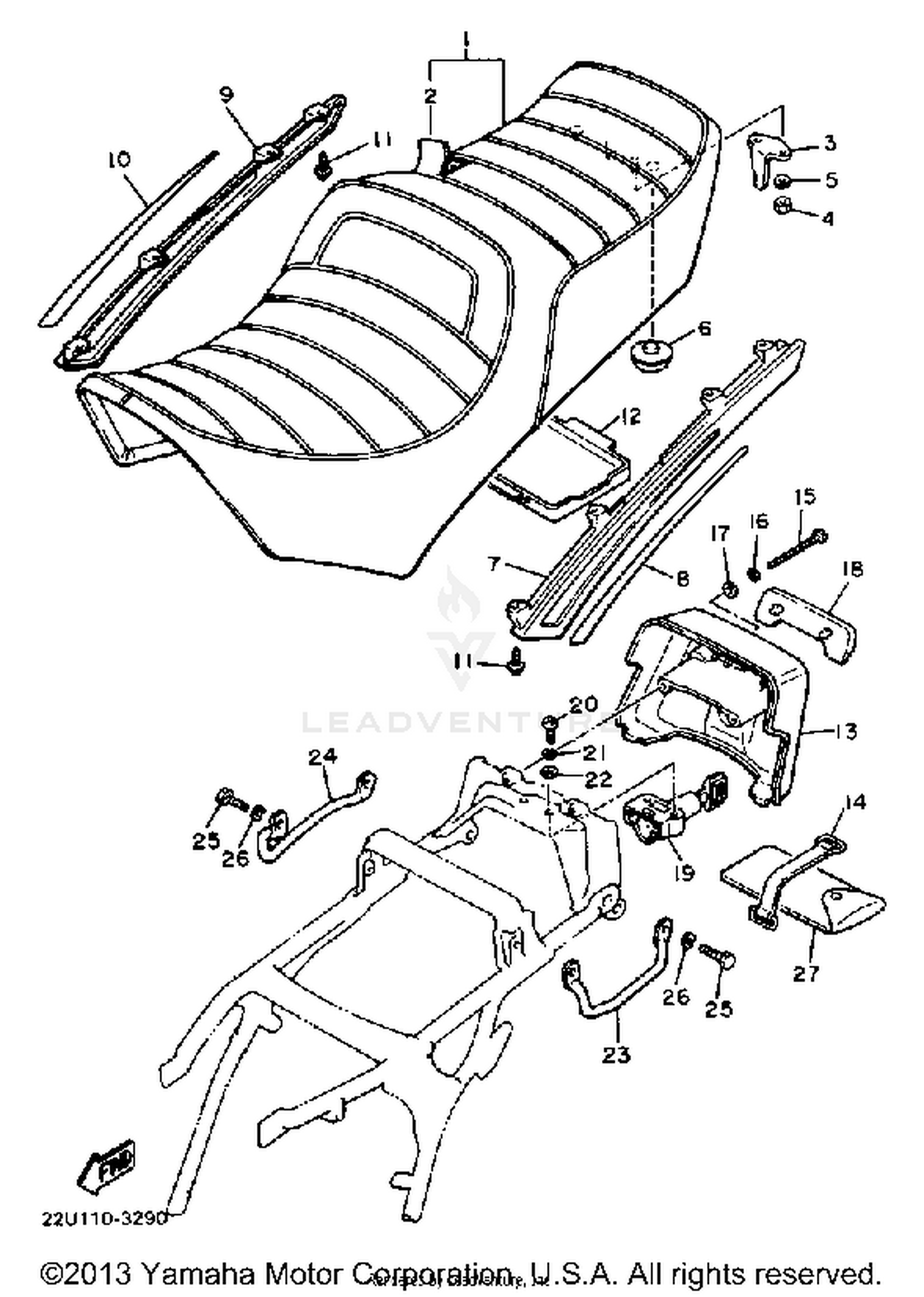

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSEMBLY
26M-W2472-00-00
|
$348.99 | ||
|
Unavailable |
|||
|
#2
COVER, DOUBLE SEAT
22U-24731-00-00
|
$181.99 | ||
|
Unavailable |
|||
|
#3
BRACKET, SEAT
22U-24728-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#4
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
MOLD, SEAT
22U-24785-01-00
|
$56.99 | ||
|
Unavailable |
|||
|
#8
GRAPHIC, TAIL COVER
22U-24757-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#9
MOLD 2
22U-2478K-01-00
|
$112.99 | ||
|
Unavailable |
|||
|
#10
GRAPHIC, TAIL COVER
22U-24767-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#11
SCREW, TAPPING
90167-05012-00
|
$0.70 | ||
|
Unavailable |
|||
|
#12
LID
395-28185-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOX 1
22U-2473R-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#14
BAND, BATTERY
122-82131-00-00
Superseded by 26L-82131-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD (92580-06560-00
92580-06560-00
Superseded by 98580-06560-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
EMBLEM
22U-24786-00-00
|
$24.29 | ||
|
Unavailable |
|||
|
#19
SEAT LOCK ASSEMBLY
22U-24705-00-00
|
$122.99 | ||
|
Unavailable |
|||
|
#20
SCREW,PAN
98516-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
HANDLE, STANDING
22U-21165-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#24
STAY, REAR
22U-21275-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#25
BOLT
97016-08020-00
Superseded by 97017-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
TOOL KIT
5A8-W2810-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
