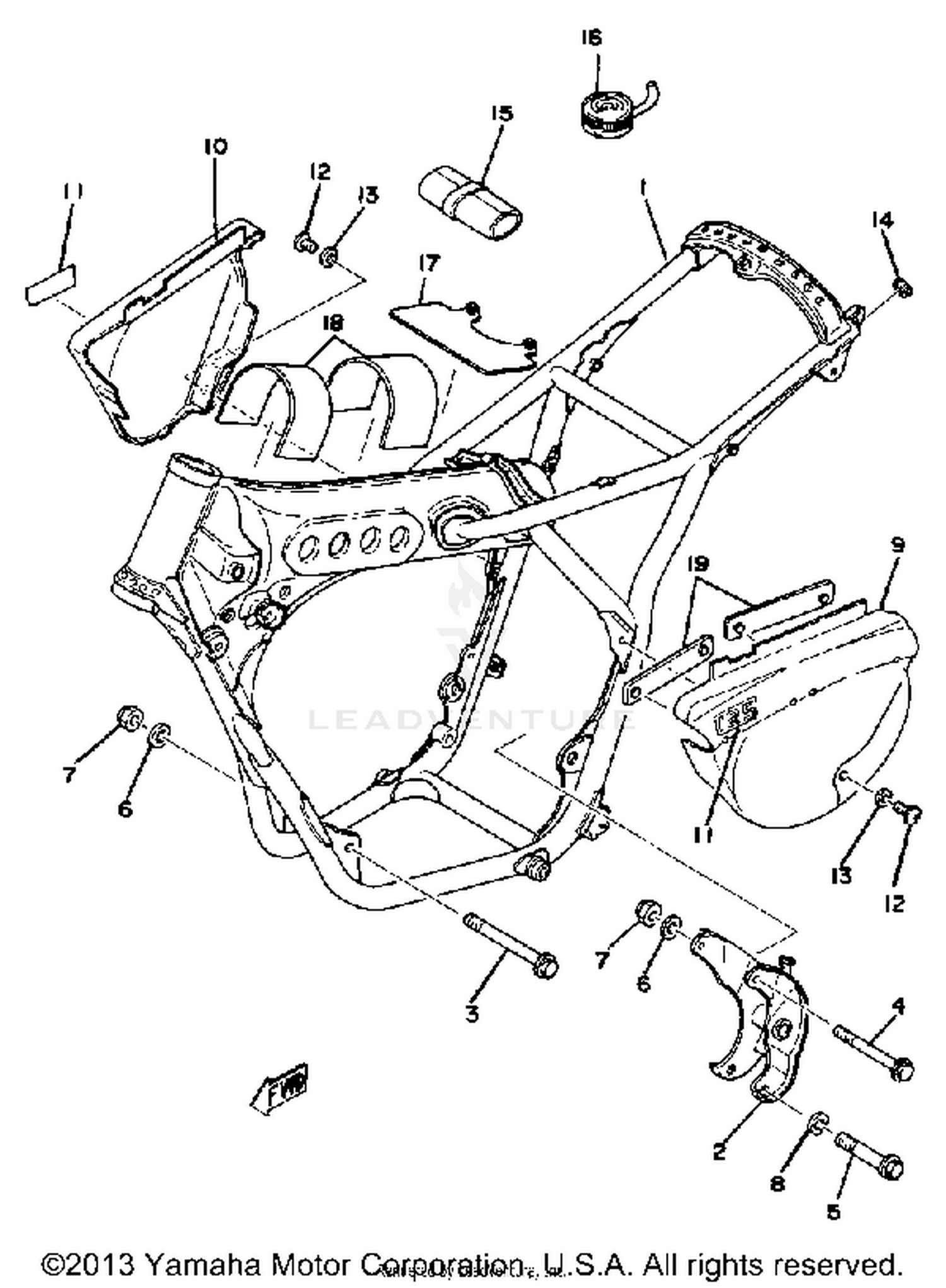

Frame - Side Cover Yz125d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
1W1-21110-00-33
|
$302.99 | ||
|
Unavailable |
|||
|
#2
ENGINE BRKT
1W1-21410-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
90105-08099-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, WASHER BASED
90105-08100-00
|
$2.60 | ||
|
Unavailable |
|||
|
#5
BOLT, WASHER BASED
90105-10037-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, SIDE 1
1W1-21711-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#10
COVER, SIDE 2
1W1-21721-02-00
|
$36.99 | ||
|
Unavailable |
|||
|
#11
EMBLEM, PROTECTOR
1K6-14729-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#12
SCREW, BIND
98903-06012-00
Superseded by 98980-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
UNAVAILABLE IN PRICE BOOK
90201-05067-00
|
|||
|
Unavailable |
|||
|
#14
PLUG
90339-12003-00
|
$1.88 | ||
|
Unavailable |
|||
|
#15
TOOL KIT
401-28100-11-00
|
$8.46 | ||
|
Unavailable |
|||
|
#16
GAUGE, AIR
1W1-2811A-00-00
|
$43.19 | ||
|
Unavailable |
|||
|
#17
DAMPER, LOCATING 1
1W1-24181-00-00
|
$9.48 | ||
|
Unavailable |
|||
|
#18
DAMPER, LOCATING 3
1W1-24183-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#19
SEAL 1
537-21732-00-00
|
$6.44 | ||
|
Unavailable |
|||
