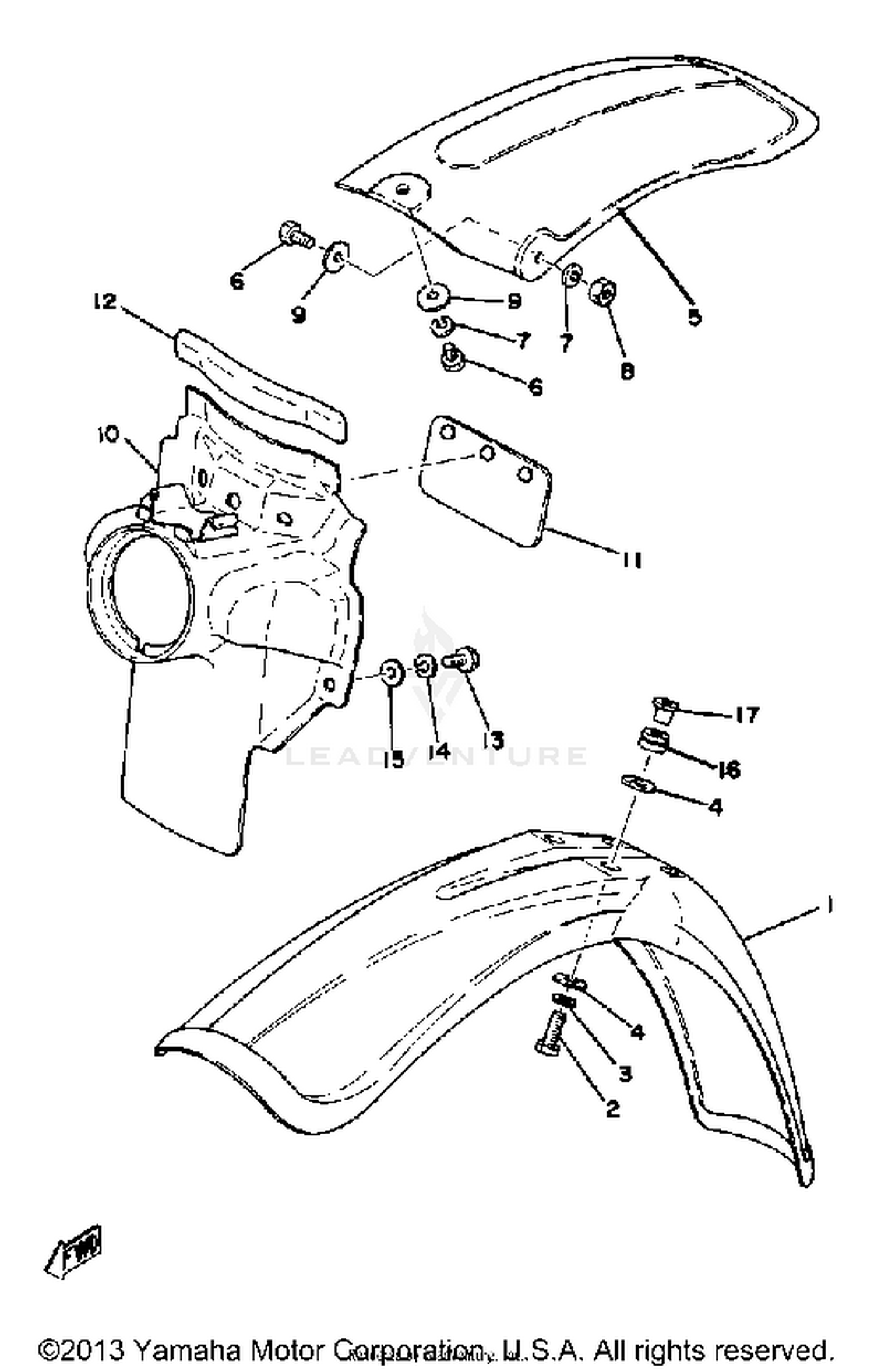

Front Fender - Rear Fender Yz125d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
5X6-21511-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER, REAR (1W1-21611-00)
2K6-21611-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#6
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#8
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
|
#10
GUARD, MUD
1W2-21620-90-00
|
$23.99 | ||
|
Unavailable |
|||
|
#11
FLAP
1M1-21621-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER
565-21746-00-00
|
$13.72 | ||
|
Unavailable |
|||
|
#13
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#15
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
|
#16
GROMMET
90480-14198-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
