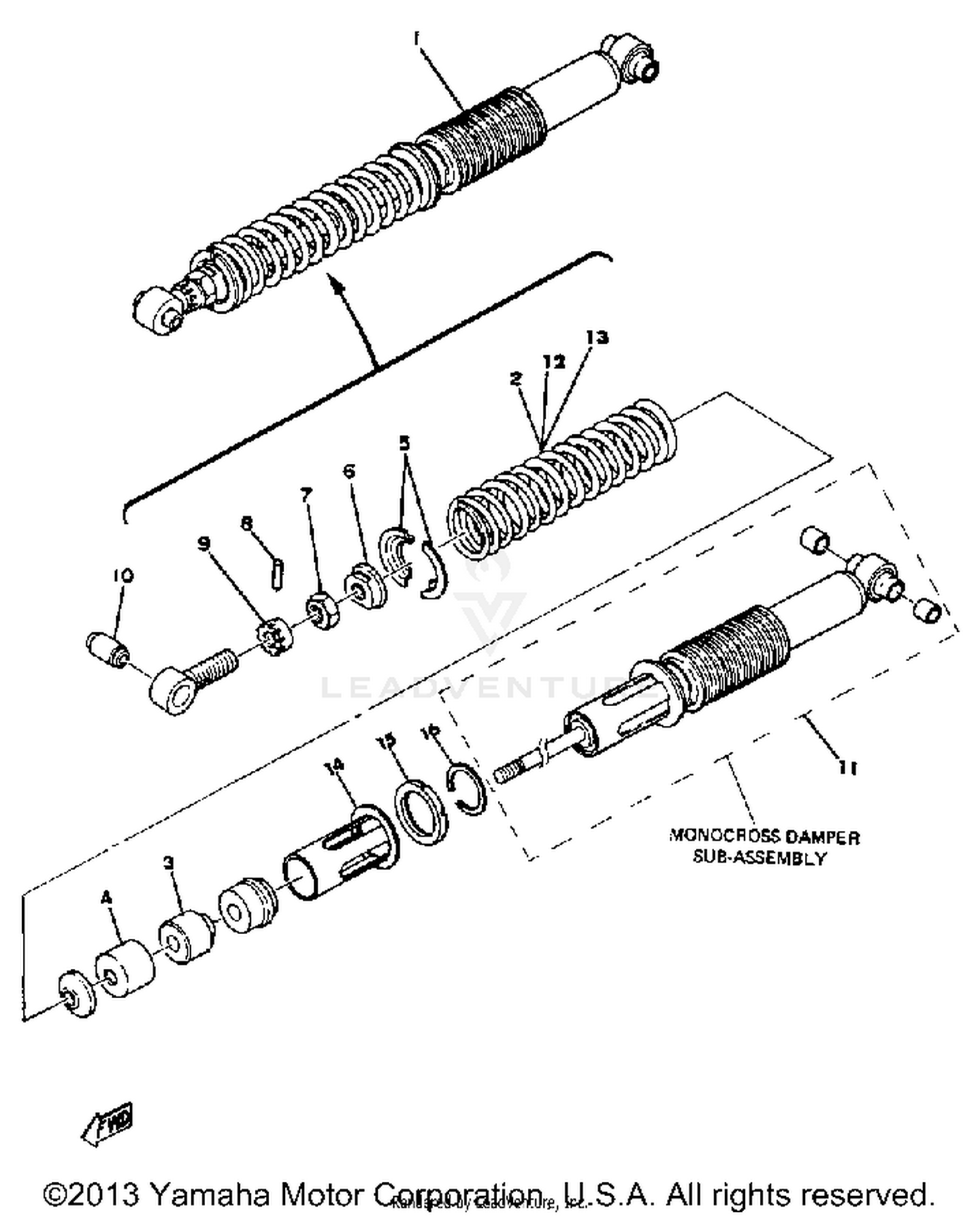

Rear Cushion Yz125d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK/ABS ASSEMBLY, REAR
1W1-22210-00-00
|
$187.99 | ||
|
Unavailable |
|||
|
#2
SPRING, COMPRESSION
90501-98466-00
|
$32.87 | ||
|
Unavailable |
|||
|
#3
BUMP, STOP
1W1-22493-00-00
|
$9.48 | ||
|
Unavailable |
|||
|
#4
COVER
1W1-22221-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#5
GUIDE, SPRING 1
1W1-22214-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#6
SEAT, SPRING UPPER
1W1-22213-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#7
NUT
90170-20320-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, DOWEL
93604-26132-00
|
$2.00 | ||
|
Unavailable |
|||
|
#9
NUT, ADJUSTING
1W1-22497-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#10
BUSH, REAR SHOCK ABSORBER
1YW-22216-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER SUB-ASSEMBLY.
1W1-22401-00-00
|
$135.99 | ||
|
Unavailable |
|||
|
#12
SPRING, COMPRESSION
90501-98477-00
|
$37.35 | ||
|
Unavailable |
|||
|
#13
SPRING, COMPRESSION
90501-98478-00
|
$37.35 | ||
|
Unavailable |
|||
|
#14
GUIDE, SPRING 2
1W1-22224-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#15
SEAT, SPRING LOWER
1W1-22223-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#16
CIRCLIP, OUTER
93440-50058-00
|
$1.83 | ||
|
Unavailable |
|||
