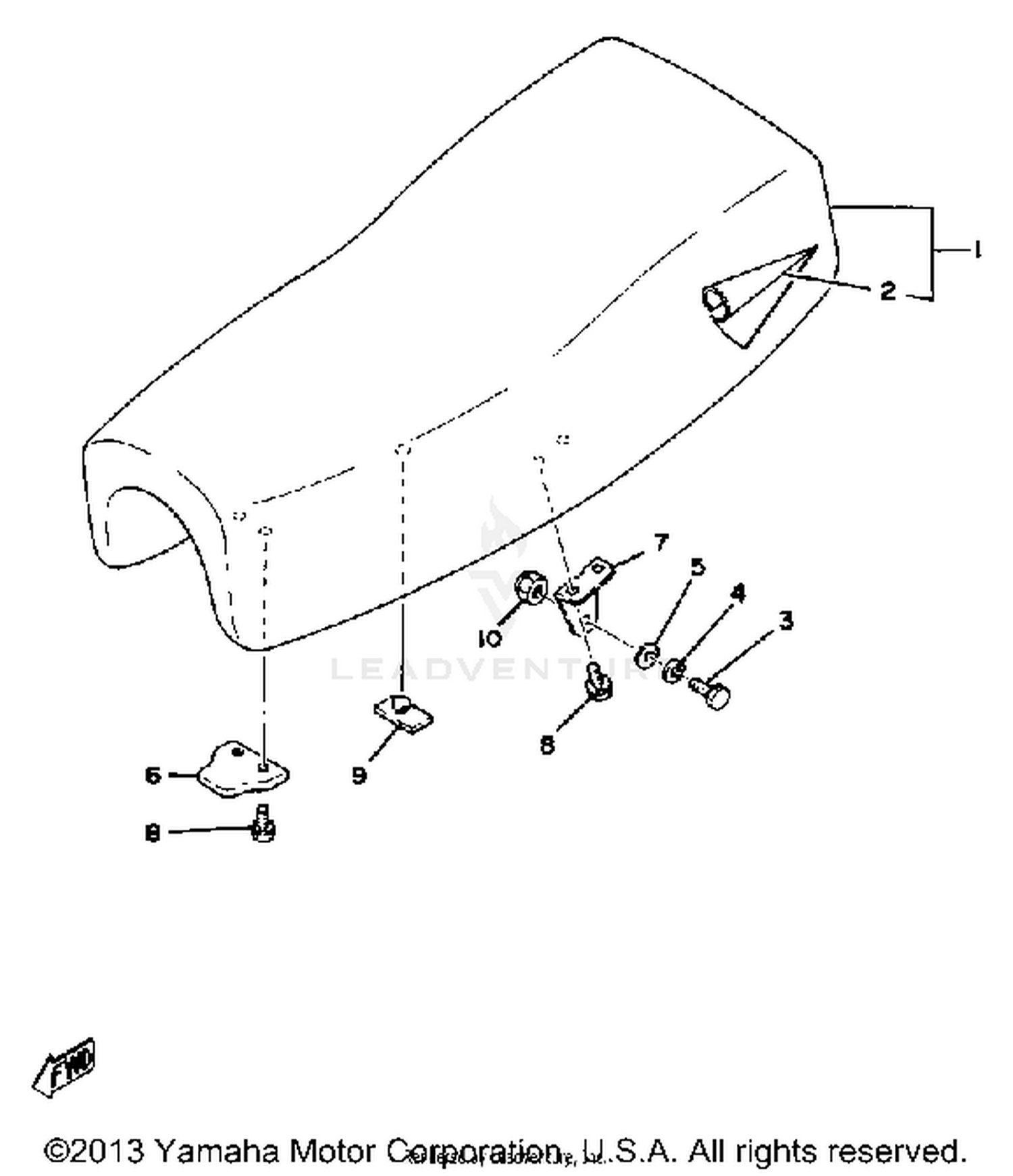

Seat Yz125d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEMI-DBL-SEAT ASSEMBLY
2K6-W2473-00-00
|
$114.99 | ||
|
Unavailable |
|||
|
#2
COVER, SM-DBL SEAT
1W4-24771-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#3
BOLT, HEXAGON
97013-06035-00
Superseded by 97014-06035-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, SEAT
1M1-24748-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#7
BRACKET, SEAT
1W1-24738-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#8
BOLT
90101-06304-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, SEAT
509-24724-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
