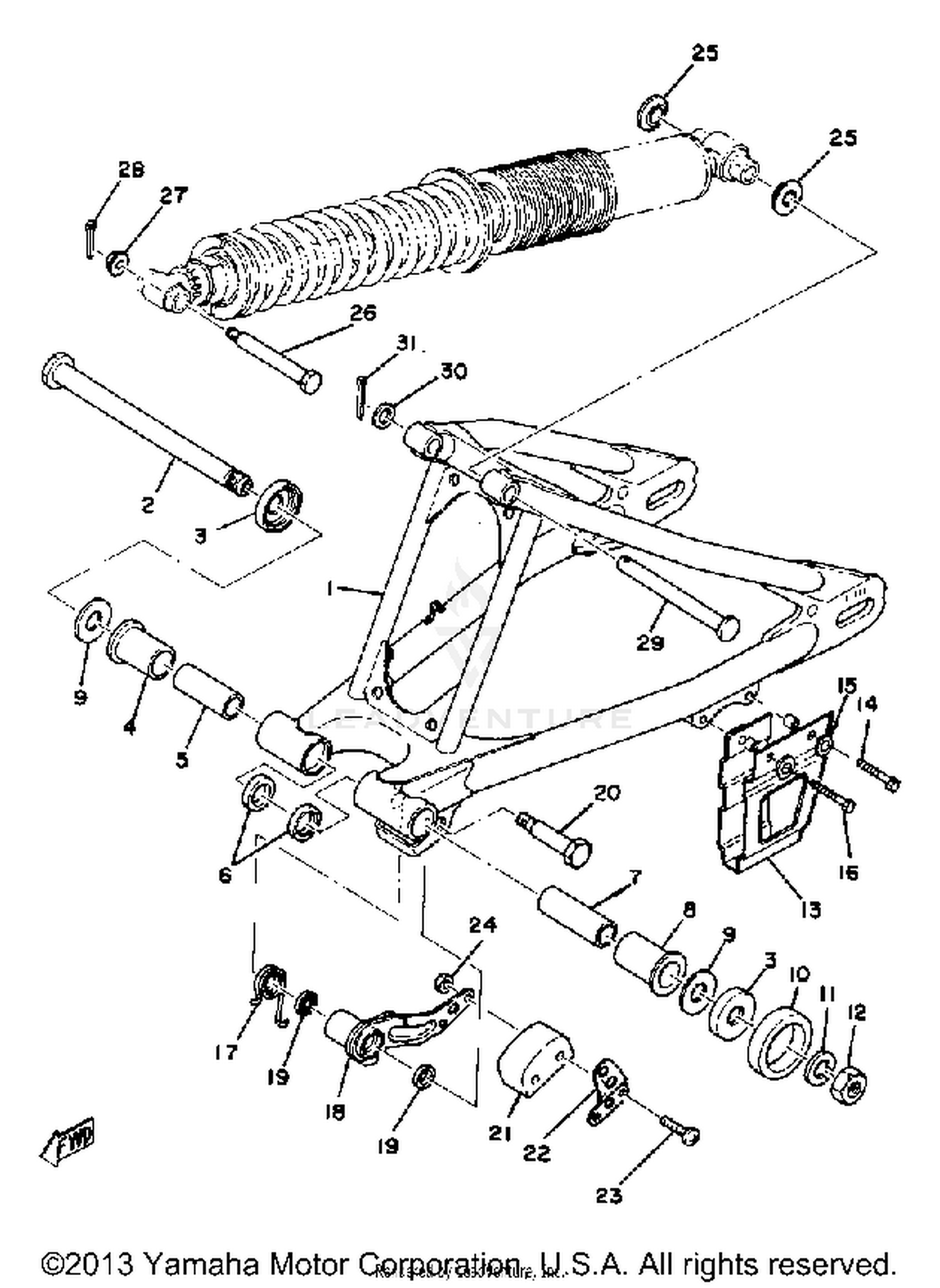

Rear Arm Yz125d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
1W1-22110-01-33
|
$138.99 | ||
|
Unavailable |
|||
|
#2
SHAFT, PIVOT
1W1-22141-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#3
COVER, THRUST 1
322-22128-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, SPEC''L NYLON
90386-22102-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, SOLID
90380-16054-00
|
$25.99 | ||
|
Unavailable |
|||
|
#6
OIL SEAL
93109-22019-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, SOLID
90380-16055-00
|
$28.99 | ||
|
Unavailable |
|||
|
#8
BUSH
3Y1-22184-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM (0.3T)
240-22127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, GUARD
1W1-22151-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#11
WASHER
92901-16100-00
Superseded by 92907-16100-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90170-16111-00
|
$9.99 | ||
|
Unavailable |
|||
|
#13
BOLT, HEXAGON W/W
97313-06055-00
Superseded by 97E95-06555-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT
97001-06018-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#
GUARD, CHAIN
2W6-22153-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#
GUARD CHAIN
99999-00989-00
|
$26.99 | ||
|
Unavailable |
|||
|
#14
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT
97001-06018-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Unavailable |
|||
|
#15
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#16
BOLT, HEXAGON W/W
97313-06055-00
Superseded by 97E95-06555-00
|
$1.25 | ||
|
Unavailable |
|||
|
#
BOLT
97313-06045-00
Superseded by 97013-06045-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, TORSION
90508-35350-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ARM, TENSIONER
1W1-22179-01-00
|
$18.22 | ||
|
Unavailable |
|||
|
#19
OIL SEAL
93104-14044-00
Superseded by 93109-14021-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (90109-10533-00)
90109-10483-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
TENSIONER (2N0-22178-00-00)
ACC-11130-00-25
|
$9.45 | ||
|
Unavailable |
|||
|
#22
GUIDE, CHAIN
1W1-22187-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98501-05035-00
Superseded by 98507-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
95311-05700-00
Superseded by 95317-05700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, THRUST 1
1W1-22128-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
90109-08480-00
|
$9.55 | ||
|
Unavailable |
|||
|
#27
NUT, SPEC''L SHAPE
90179-08243-00
|
$4.70 | ||
|
Unavailable |
|||
|
#28
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, CLEVIS
90240-12060-00
Superseded by 90240-12059-00
|
$9.99 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
92990-12600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
