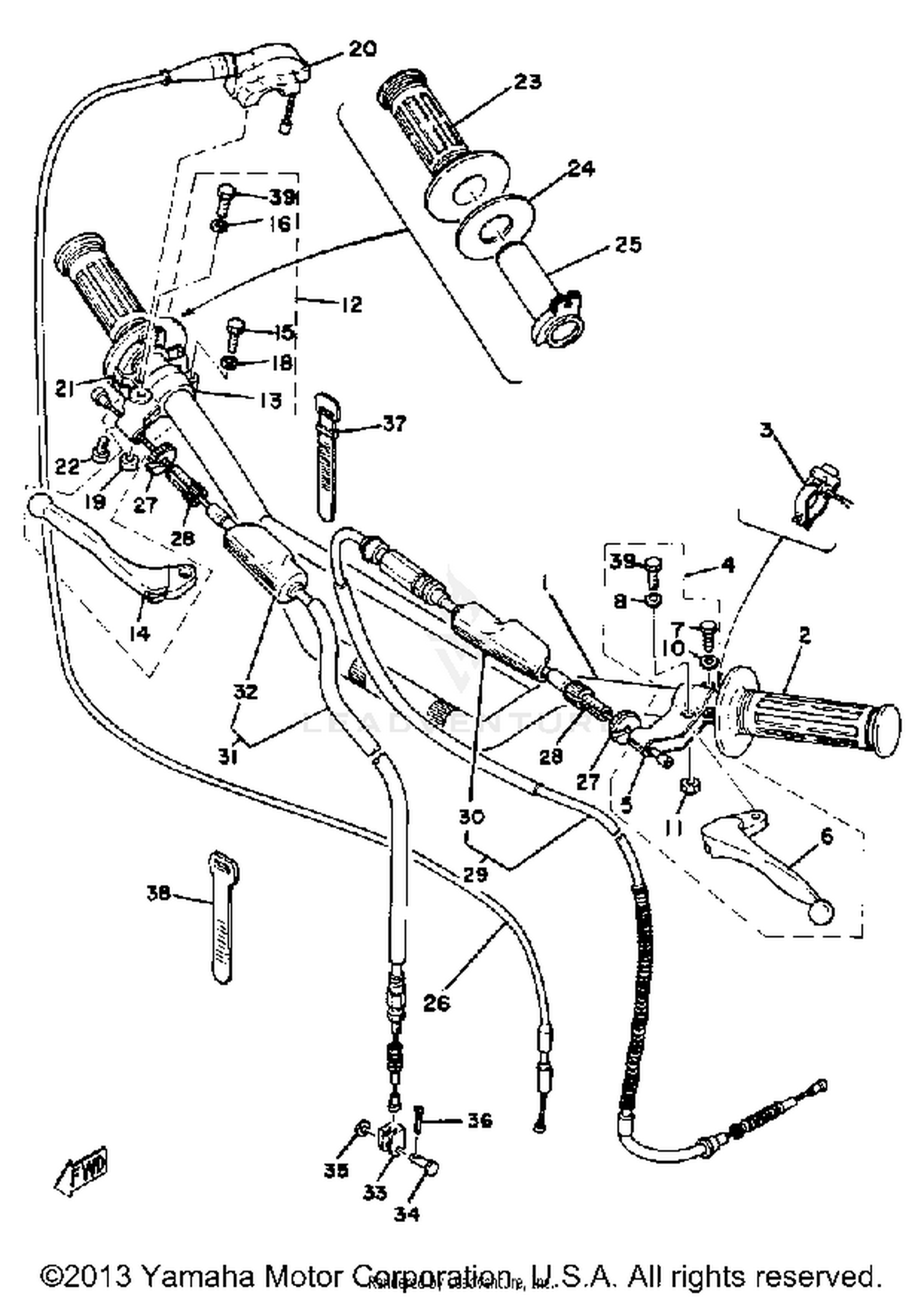

Handle - Wire Yz125d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
1W1-26111-03-00
Superseded by 2A8-26111-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP LH (L.H.)
1E6-26241-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH, HANDLE 1
23X-83976-00-00
Superseded by 23X-83976-01-00
|
$35.99 | ||
|
Unavailable |
|||
|
#4
LEVER HOLDER ASSEMBLY 1 (583-82
583-82910-11-00
|
$37.99 | ||
|
Unavailable |
|||
|
#5
HOLDER, LEVER 1
214-82911-01-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER L
1J3-83912-20-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (661)
97003-06022-00
Superseded by 97013-06022-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER HOLDER ASSEMBLY 2
583-82920-11-00
|
$33.99 | ||
|
Unavailable |
|||
|
#13
HOLDER, LEVER 2
516-82921-30-00
|
$63.99 | ||
|
Unavailable |
|||
|
#14
LEVER R
2A6-83922-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (661)
97003-06022-00
Superseded by 97013-06022-00
|
$0.85 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Unavailable |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#19
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
CAP, GRIP UPPER
322-26281-00-98
|
$28.99 | ||
|
Unavailable |
|||
|
#21
CAP, GRIP UNDER
322-26282-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
GRIP RH (R.H.)
583-26242-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
RING, LEAF
1W1-26249-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#25
TUBE, THROTTLE GUIDE
322-26243-00-00
Superseded by 22W-26243-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CABLE, THROTTLE 1 (1130MM)
1W1-26311-02-00
Superseded by 2K8-26311-01-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90123-08013-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CABLE, CLUTCH
1W1-26335-00-00
|
$50.99 | ||
|
Unavailable |
|||
|
#30
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CABLE, BRAKE
1W1-26341-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#32
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#33
JOINT, CABLE
156-26347-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Unavailable |
|||
|
#36
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#38
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
90109-06797-00
Superseded by 90109-061F3-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
