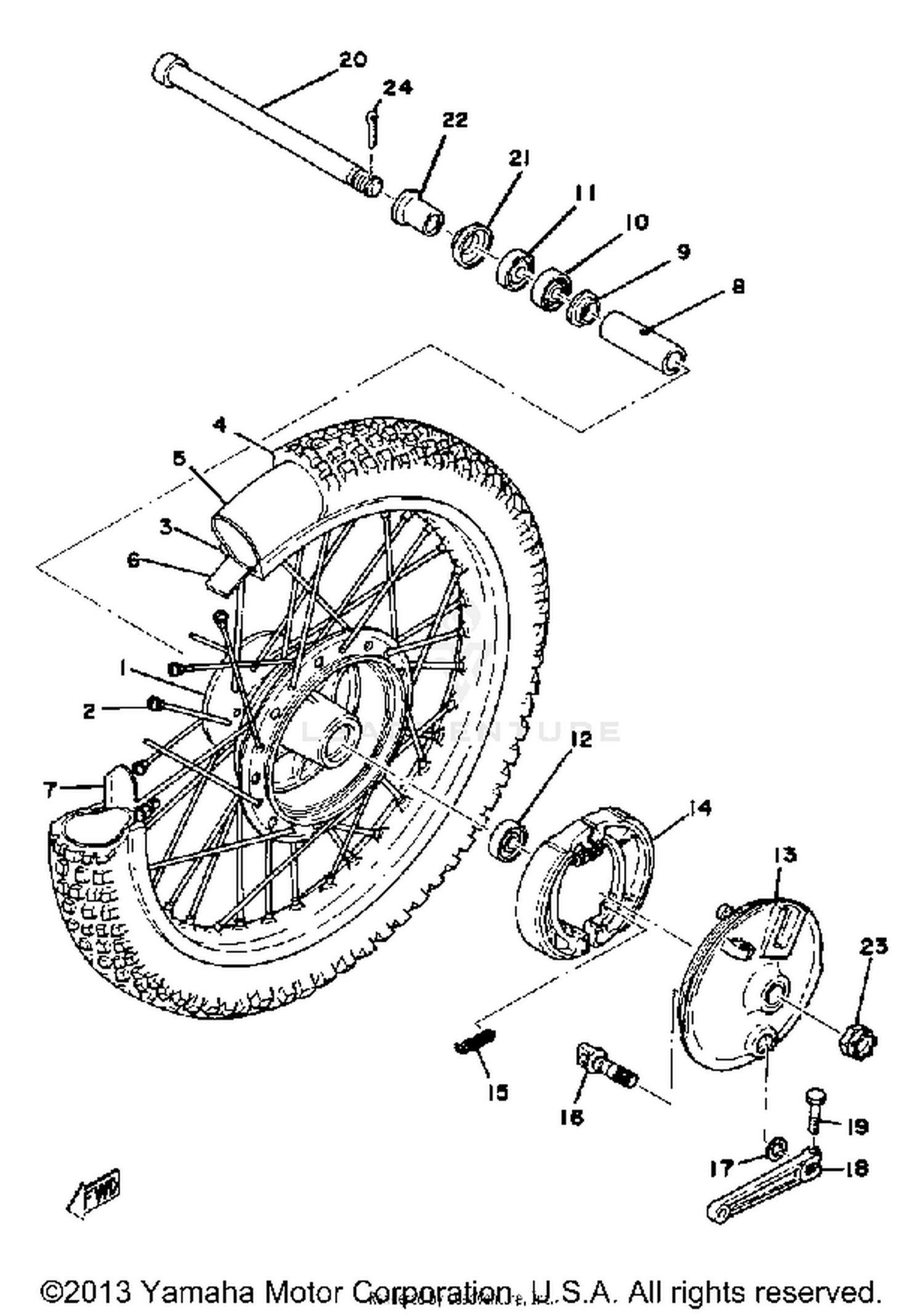

Front Wheel Yz125d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
248-25111-00-98
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#
HUB, FRONT
1K7-25111-10-98
|
$132.99 | ||
|
Unavailable |
|||
|
#
SPOKE SET, FRONT
2W6-25104-02-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPOKE SET, INNER 1
345-25196-90-00
|
$7.68 | ||
|
Unavailable |
|||
|
#
RIM 1.60X21
94416-21326-00
|
$513.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, FRONT
345-25104-01-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPOKE SET, OUTER 1
345-25197-90-00
|
$7.68 | ||
|
Unavailable |
|||
|
#
300X21 BS M7
94130-21226-00
|
$41.68 | ||
|
Unavailable |
|||
|
#3
RIM 1.60X21
94416-21265-00
|
$266.99 | ||
|
Unavailable |
|||
|
#
TUBE (MCS 2.75/3.00-21 TR6)
94227-21123-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
275X21 BS M7
94127-21216-00
|
$36.99 | ||
|
Unavailable |
|||
|
#5
TUBE 2.75/3.00-21
94225-21186-00
Superseded by 94227-21293-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, RIM
94327-21024-00
|
$4.60 | ||
|
Unavailable |
|||
|
#
SPACER
90560-15116-00
|
$13.99 | ||
|
Unavailable |
|||
|
#7
SPACER, BEAD
1T1-25194-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FLANGE, SPACER 2
146-25116-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
90560-12261-00
Superseded by 90560-12138-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#
OIL SEAL
93102-20009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FLANGE, SPACER
109-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BEARING
93306-20226-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93102-18008-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BRAKE SHOE PLT ASSEMBLY (1W1-25
1W1-25016-11-98
|
$285.99 | ||
|
Unavailable |
|||
|
#12
PLATE, BRAKE SHOE
401-25121-00-98
|
$45.99 | ||
|
Unavailable |
|||
|
#
BRAKE SHOE KIT
322-W2535-00-00
Superseded by 322-W253A-10-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRAKESHOE SET-2PCS (326-25330-1
326-W2536-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#14
SPRING, TENSION
90506-16150-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
CAMSHAFT
23X-25151-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#15
CAMSHAFT
122-25351-02-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SEAL, CAMSHAFT
137-25159-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#
LEVER, CAMSHAFT 1
322-25155-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#16
SEAL, CAMSHAFT
137-25159-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER, CAMSHAFT 1 (401-25155-00
401-25155-11-00
|
$32.99 | ||
|
Unavailable |
|||
|
#18
BOLT
97313-06020-00
Superseded by 97080-06020-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#
AXLE, WHEEL
1W1-25181-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COVER, HUB DUST
322-25118-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
AXLE, WHEEL
401-25181-01-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COLLAR
90387-15600-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-12100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, HUB DUST
2K5-25118-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-12095-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLAIN
92990-12200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, CASTLE
90171-12005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Unavailable |
|||
