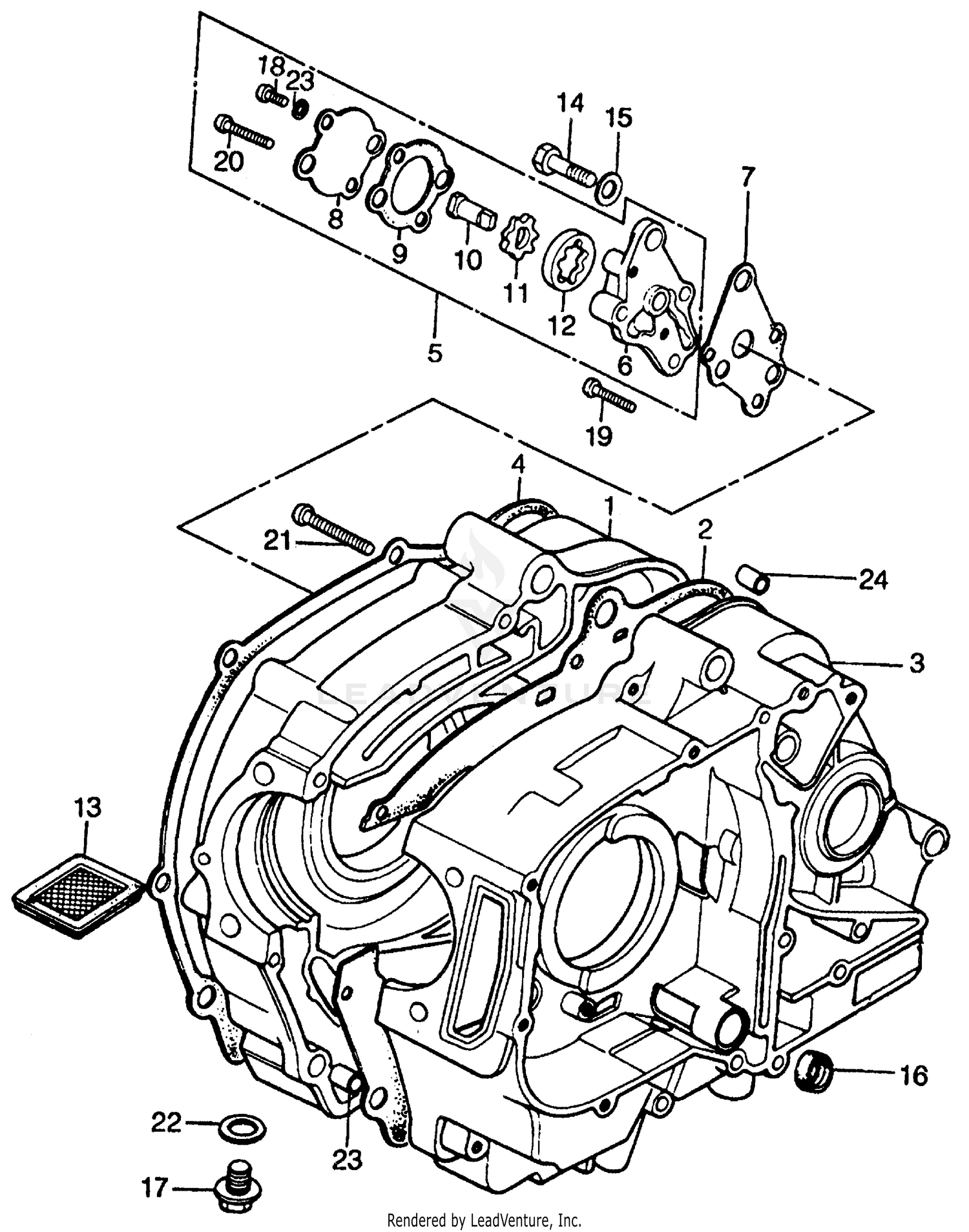

Crankcase + Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R. (NOT AVAILABLE)
11100-052-040
|
$269.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE
11191-052-000
Superseded by 11191-052-306
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKCASE, L. (NOT AVAILABLE)
11200-918-670
|
$303.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, R. CRANKCASE COVER
11393-028-020
Superseded by 11393-028-306
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, R. CRANKCASE COVER
11393-028-306
|
$14.58 | ||
|
Unavailable |
|||
|
#5
PUMP ASSY., OIL (NOT AVAILABLE)
15100-053-010
|
$43.61 | ||
|
Available to order. Add to View Price |
|||
|
#6
BODY, OIL PUMP
15111-053-020
|
$27.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, OIL PUMP BODY
15119-028-030
Superseded by 15119-028-306
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, OIL PUMP BODY
15119-028-306
|
$1.75 | ||
|
Unavailable |
|||
|
#8
COVER, OIL PUMP (NOT AVAILABLE)
15121-028-060
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, OIL PUMP COVER
15128-028-030
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
DRIVESHAFT, OIL PUMP (NOT AVAILABLE)
15181-028-050
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROTOR, OIL PUMP (INNER)
15331-053-010
Superseded by 15331-053-014
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROTOR, OIL PUMP (INNER)
15331-053-014
|
$5.92 | ||
|
Unavailable |
|||
|
#12
ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)
15332-035-000
Superseded by 15332-035-004
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)
15332-035-004
|
$5.29 | ||
|
Unavailable |
|||
|
#13
SCREEN, OIL FILTER
15421-035-010
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, OIL JOINT (NOT AVAILABLE)
90015-028-000
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, OIL PIPE JOINT
90405-001-000
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (11.6X19X6)
91204-HB2-003
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (11.6X19X6)
91204-071-003
Superseded by 91204-HB2-003
|
$8.90 | ||
|
Unavailable |
|||
|
#16
OIL SEAL (11.6X19X6)
91204-121-711
Superseded by 91204-HB2-003
|
$8.90 | ||
|
Unavailable |
|||
|
#17
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN (5X12)
93500-05012-0A
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (6X16)
93500-06016
Superseded by 93500-06016-0A
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (6X16)
93500-06016-0A
|
$1.15 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN (6X25)
93500-06025
Superseded by 93500-06025-0A
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (6X40)
93500-06040
Superseded by 93500-06040-0A
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (6X40)
93500-06040-0A
|
$1.42 | ||
|
Unavailable |
|||
|
#22
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING (5MM)
94111-05000
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN A, DOWEL (10X14)
94301-10140
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
