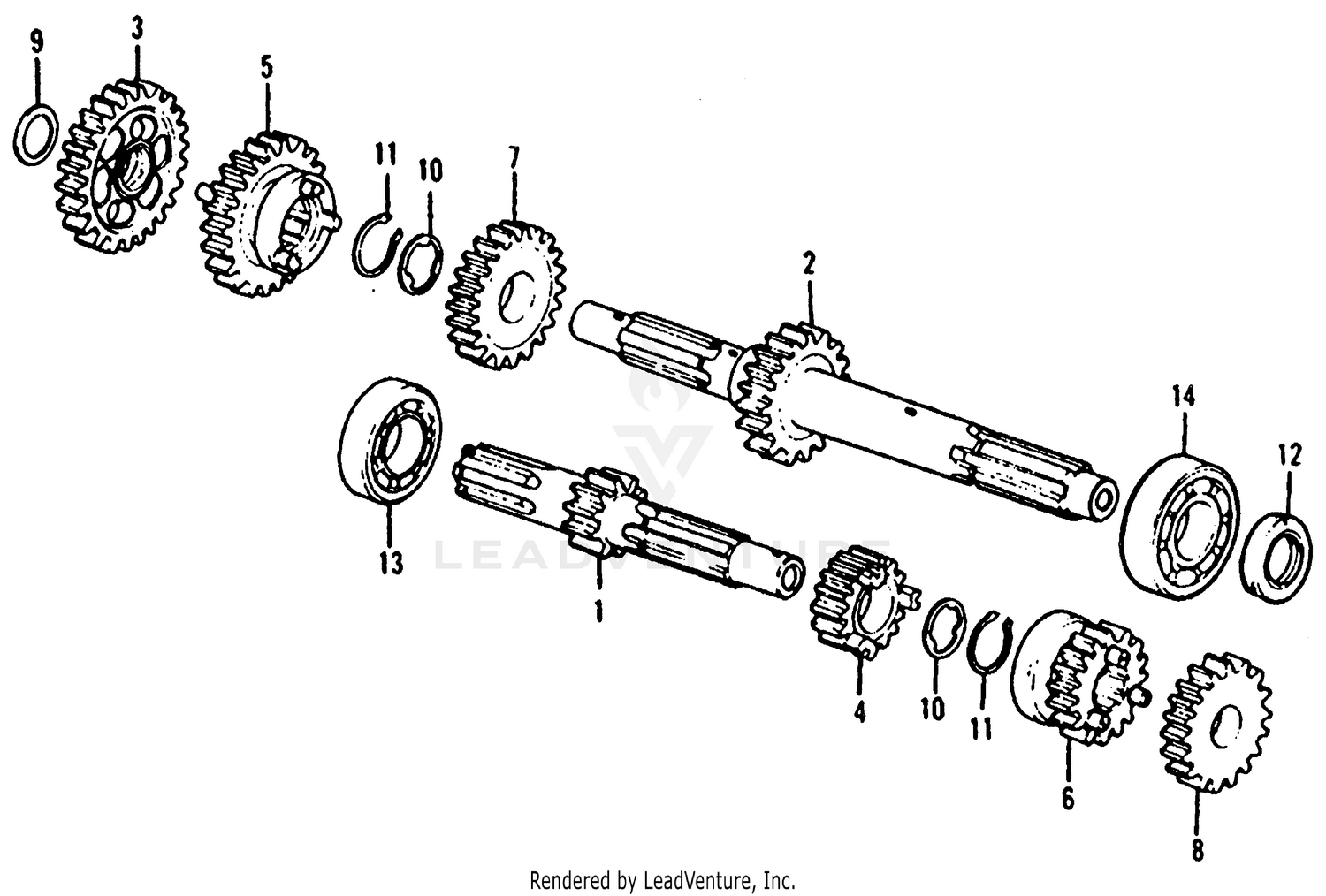

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (13T)
23211-028-070
|
$65.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT, TRANSMISSION (23T)
23220-053-030
|
$122.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, COUNTERSHAFT LOW (33T)
23421-096-000
|
$42.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, MAINSHAFT SECOND (18T) (NOT AVAILABLE)
23431-052-040
|
$48.06 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, COUNTERSHAFT SECOND (29T) (NOT AVAILABLE)
23441-052-020
|
$66.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, MAINSHAFT THIRD (21T)
23451-052-010
|
$60.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, COUNTERSHAFT THIRD (25T)
23461-052-000
|
$48.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT TOP (24T)
23471-052-000
|
$51.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, THRUST (14MM)
90451-001-000
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPLINE (18MM)
90461-028-000
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP (18MM)
90601-030-000
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL (27X37X7)
91201-053-005
Superseded by 91205-943-003
|
$13.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL (27X37X7)
91205-943-003
|
$13.42 | ||
|
Unavailable |
|||
|
#13
BEARING, RADIAL BALL (6004)
96100-60040-00
|
$18.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, RADIAL BALL (6204)
96100-62040-00
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
