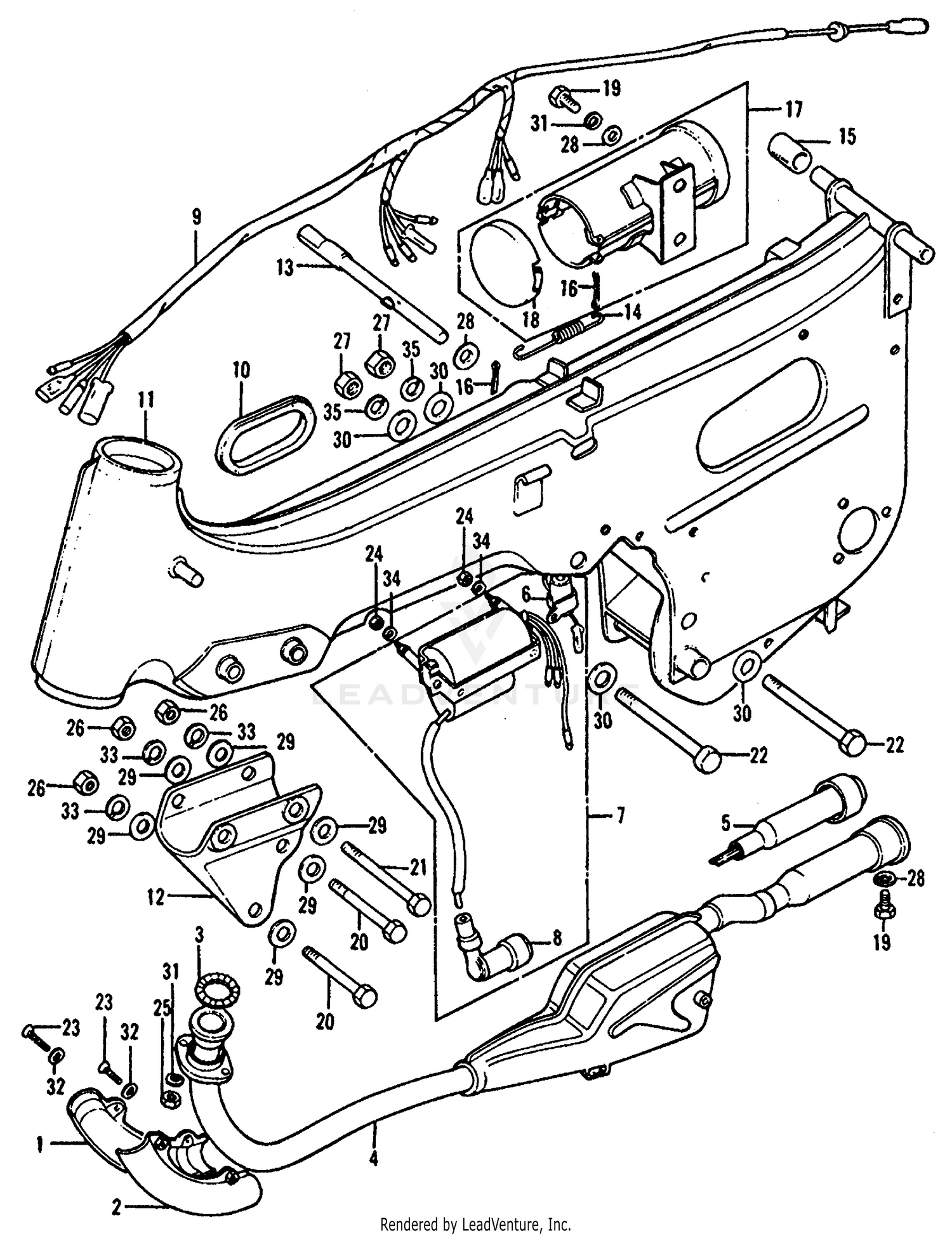

Frame + Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER A, EX. PIPE *MRCR2* (CHROME PLATING) (NOT AVAILABLE)
18241-918-670XW
|
$24.94 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER B, EX. PIPE *MRCR2* (CHROME PLATING) (NOT AVAILABLE)
18242-918-670XW
|
$27.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, EX. PIPE
18291-028-000
Superseded by 18291-028-306
|
$8.77 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, EX. PIPE
18291-028-306
|
$8.77 | ||
|
Unavailable |
|||
|
#4
MUFFLER, EX. (NOT AVAILABLE)
18300-918-305
Superseded by 18300-918-306
|
$363.77 | ||
|
Available to order. Add to View Price |
|||
|
#4
MUFFLER, EX. (NOT AVAILABLE)
18300-918-306
|
$363.77 | ||
|
Unavailable |
|||
|
#5
PIPE, DIFFUSER
18330-942-000
|
$29.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
CONDENSER
30250-052-000
|
$26.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
COIL ASSY., IGNITION
30500-918-405
|
$81.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
COIL ASSY., IGNITION
30500-918-670
Superseded by 30500-918-405
|
$81.93 | ||
|
Unavailable |
|||
|
#8
CAP ASSY., NOISE SUPPRESSOR
30600-918-670
Superseded by 30700-KE2-942
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP ASSY., NOISE SUPPRESSOR
30700-152-153
Superseded by 30700-KE2-942
|
$20.71 | ||
|
Unavailable |
|||
|
#8
CAP ASSY., NOISE SUPPRESSOR
30700-152-163
Superseded by 30700-KE2-942
|
$20.71 | ||
|
Unavailable |
|||
|
#9
WIRE HARNESS (NOT AVAILABLE)
32100-942-000
|
$69.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET, WIRE HARNESS (NOT AVAILABLE)
32984-918-000
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
FRAME *NH1* (BLACK)
50100-942-010B
|
$923.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
HANGER, ENGINE (NOT AVAILABLE)
50121-942-000
|
$78.43 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD (6MM) (NOT AVAILABLE)
50221-942-000
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, COVER SETTING (NOT AVAILABLE)
50222-918-000
|
$8.92 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, SEAT MOUNTING
50801-918-000
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, COTTER (2.0X35)
94201-20350
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOX ASSY., TOOL (NOT AVAILABLE)
89500-918-000
Superseded by 89500-943-000
|
$59.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOX ASSY., TOOL (NOT AVAILABLE)
89500-943-000
|
$59.02 | ||
|
Unavailable |
|||
|
#18
CAP, TOOL BOX *NH1* (BLACK) (NOT AVAILABLE)
89502-918-000B
|
$9.14 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.42 | ||
|
Unavailable |
|||
|
#19
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.42 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX. (8X63) (NOT AVAILABLE)
92000-08063-0A
Superseded by 92200-08063-0A
|
$0.94 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEX. (8X85) (SOURCE: VINTAGE PARTS INC.)
92000-08085-0A
Superseded by 92101-08085-0A
|
$1.52 | ||
|
Unavailable |
|||
|
#21
BOLT, HEX. (8X85) (SOURCE: VINTAGE PARTS INC.)
92101-08085-0A
|
$1.52 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX. (10X120)
92000-10120-0A
Superseded by 92101-10120-0A
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. (10X120)
92101-10120-0A
|
$3.81 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN (5X16)
93500-05016-0A
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, HEX. (5MM)
94001-05000-0S
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEX. (6MM)
94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#26
NUT, HEX. (8MM)
94001-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, HEX. (10MM)
94001-10000-0S
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#28
WASHER, PLAIN (6MM)
94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#29
WASHER, PLAIN (8MM)
94101-08000
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLAIN (10MM)
94101-10000
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPRING (6MM)
94111-06000
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLAIN (5MM)
94101-05000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPRING (8MM)
94111-08000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, SPRING (5MM)
94111-05000
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SPRING (8MM)
94111-10000
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
