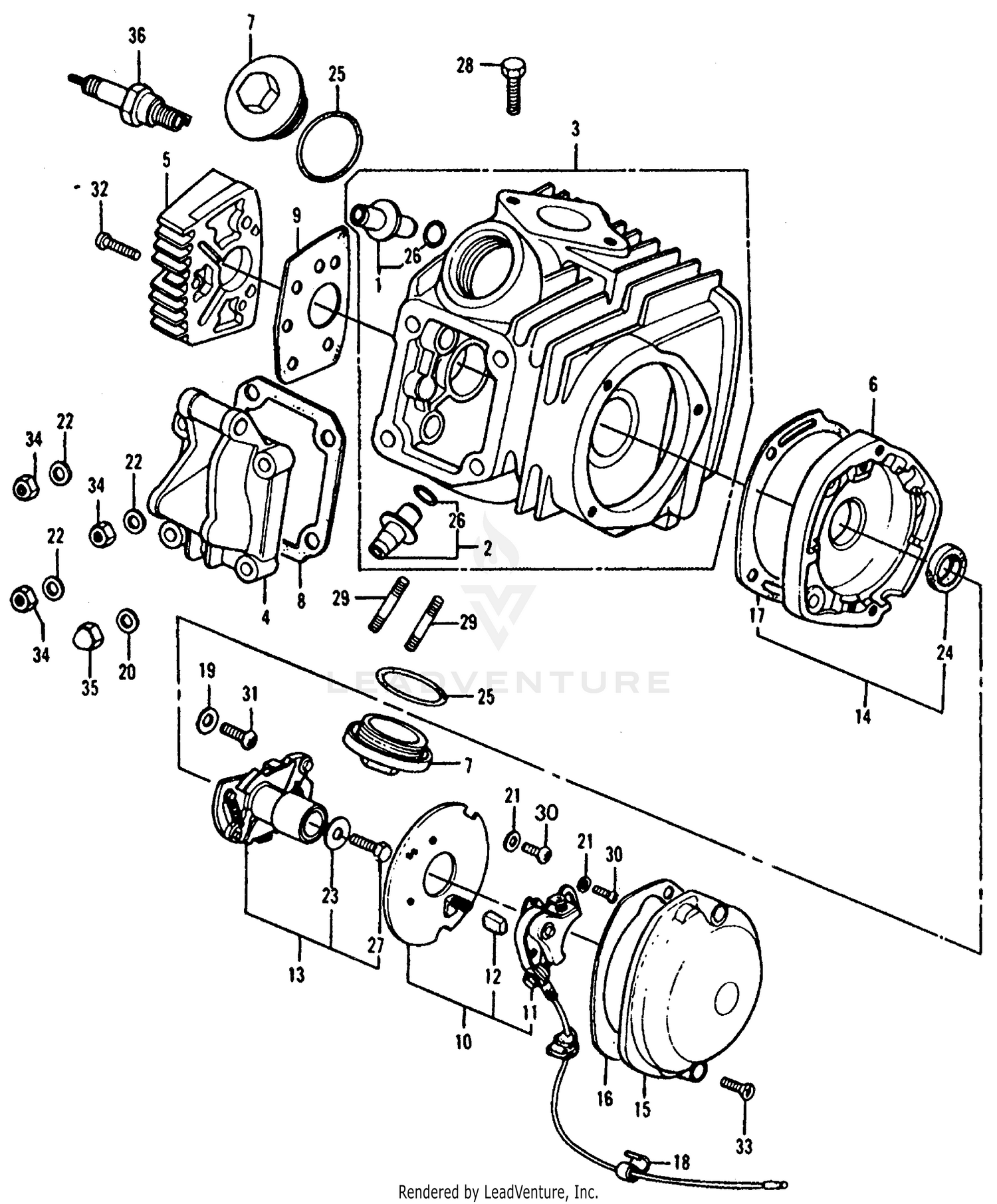

Cylinder Head + Cylinder Head Cover Diagram

Item MSRP Qty
#1 GUIDE, VALVE
12021-VM6-000
Superseded by 12021-943-000
 $11.71
Available to order.
Add to View Price
#1 GUIDE, VALVE
12021-028-340
Superseded by 12021-943-000
 $11.71
Unavailable
#1 GUIDE, VALVE
12021-943-000
 $11.71
Unavailable
#1 GUIDE, VALVE
12201-028-340
Superseded by 12021-943-000
 $11.71
Unavailable
#2 GUIDE, IN./EX. VALVE
12021-128-405
 $21.07
Available to order.
Add to View Price
#2 GUIDE, IN./EX. VALVE
12023-028-330
Superseded by 12021-128-405
 $21.07
Unavailable
#2 GUIDE, IN./EX. VALVE
12023-028-340
Superseded by 12021-128-405
 $21.07
Unavailable
#2 GUIDE, IN./EX. VALVE
12023-028-790
Superseded by 12021-128-405
 $21.07
Unavailable
#2 GUIDE, IN./EX. VALVE
12023-943-000
Superseded by 12021-128-405
 $21.07
Unavailable
#2 GUIDE, IN./EX. VALVE
12232-028-790
Superseded by 12021-128-405
 $21.07
Unavailable
#3 CYLINDER HEAD (NOT AVAILABLE)
12200-028-792
 $154.12
Available to order.
Add to View Price
#4 COVER, CYLINDER HEAD
12301-918-000
 $72.08
Available to order.
Add to View Price
#5 COVER, VALVE ROCKER ARM SIDE
12331-028-000
Superseded by 12331-028-020
 $16.18
Available to order.
Add to View Price
#5 COVER, VALVE ROCKER ARM SIDE
12331-028-010
Superseded by 12331-028-020
 $16.18
Unavailable
#5 COVER, VALVE ROCKER ARM SIDE
12331-028-020
 $16.18
Unavailable
#5 COVER, VALVE ROCKER ARM SIDE
12331-128-000
Superseded by 12331-028-020
 $16.18
Unavailable
#6 BASE, POINTS (NOT AVAILABLE)
12332-028-030
Superseded by 12332-028-040
 $24.04
Available to order.
Add to View Price
#7 CAP, VALVE ADJ.
12361-028-000
 $10.21
Available to order.
Add to View Price
#8 GASKET, CYLINDER HEAD COVER
12391-028-000
Superseded by 12391-121-630
 $5.70
Available to order.
Add to View Price
#8 GASKET, CYLINDER HEAD COVER
12391-028-306
Superseded by 12391-121-630
 $5.70
Unavailable
#8 GASKET, CYLINDER HEAD COVER
12391-121-630
 $5.70
Unavailable
#9 GASKET, R. CYLINDER HEAD SIDE COVER
12394-028-010
Superseded by 12394-121-630
 $5.36
Available to order.
Add to View Price
#9 GASKET, R. CYLINDER HEAD SIDE COVER
12394-028-020
Superseded by 12394-121-630
 $5.36
Unavailable
#9 GASKET, R. CYLINDER HEAD SIDE COVER
12394-121-630
 $5.36
Unavailable
#10 POINTS ASSY. (DENSO)
30200-107-014
 $67.95
Available to order.
Add to View Price
#11 POINTS (DENSO)
30202-107-004
 $49.88
Available to order.
Add to View Price
#11 POINTS (TOYO)
30202-107-154
 $32.33
Available to order.
Add to View Price
#12 FELT, OIL (KOKUSAN) (NOT AVAILABLE)
30205-028-004
Superseded by 30205-028-003
 $1.87
Available to order.
Add to View Price
#13 ADVANCER ASSY., SPARK (DENSO) (NOT AVAILABLE)
30220-918-004
 $156.95
Available to order.
Add to View Price
#14 BASE ASSY., POINTS
30360-028-020
Superseded by 30360-028-030
 $47.83
Available to order.
Add to View Price
#14 BASE ASSY., POINTS
30360-028-030
 $47.83
Unavailable
#15 COVER, POINTS
30370-028-000
 $18.26
Available to order.
Add to View Price
#15 COVER, POINTS
30370-128-000
Superseded by 30370-028-000
 $18.26
Unavailable
#16 GASKET, POINT COVER
30391-028-000
Superseded by 30391-459-952
 $5.06
Unavailable
#16 GASKET, POINT COVER
30391-459-950
Superseded by 30391-459-952
 $5.06
Unavailable
#17 GASKET, POINTS BASE
30392-028-020
Superseded by 30392-028-306
 $4.00
Available to order.
Add to View Price
#17 GASKET, POINTS BASE
30392-028-306
 $4.00
Unavailable
#18 CLIP, POINT LEAD WIRE (NOT AVAILABLE)
32901-028-000
 $2.06
Available to order.
Add to View Price
#19 WASHER, SEALING (6MM)
90441-028-010
 $3.21
Available to order.
Add to View Price
#20 WASHER, SEALING (8MM)
90442-028-000
 $1.92
Available to order.
Add to View Price
#21 WASHER (5MM)
90482-028-000
 $2.40
Available to order.
Add to View Price
#22 WASHER (8MM)
90483-028-000
 $1.66
Available to order.
Add to View Price
#23 WASHER, SPARK ADVANCER SETTING
90486-028-000
 $2.44
Available to order.
Add to View Price
#24 OIL SEAL (13X22X5)
91201-028-005
 $9.74
Available to order.
Add to View Price
#25 O-RING (33.5X3.0)
91302-200-000
Superseded by 91304-HB3-003
 $9.25
Available to order.
Add to View Price
#25 O-RING (33.5X3.0)
91302-943-003
Superseded by 91304-HB3-003
 $9.25
Unavailable
#25 O-RING (33.5X3.0)
91304-HB3-003
 $9.25
Unavailable
#26 O-RING (9.5X1.6)
91306-028-000
 $3.47
Available to order.
Add to View Price
#27 BOLT, HEX. (6X14) BOLT, FLANGE (6X14)
92000-06014
Superseded by 92101-06014-0A
 $1.45
Available to order.
Add to View Price
#27 BOLT, HEX. (6X14)
92101-06014-0A
 $1.45
Unavailable
#28 BOLT, HEX. (6X32)
92000-06032
Superseded by 92101-06032-0A
 $1.71
Available to order.
Add to View Price
#28 BOLT, HEX. (6X32)
92000-06032-0A
Superseded by 92101-06032-0A
 $1.71
Unavailable
#28 BOLT, HEX. (6X32)
92101-06032-0A
 $1.71
Unavailable
#29 BOLT, STUD (6X18)
92700-06031
Superseded by 92900-06018-0B
 $1.64
Available to order.
Add to View Price
#29 BOLT, STUD (6X18)
92900-06018-0B
 $1.64
Unavailable
#30 SCREW, PAN (5X10)
93500-05010-0A
 $0.90
Available to order.
Add to View Price
#31 SCREW, PAN (6X12)
93500-06012
Superseded by 93500-06012-0A
 $0.98
Available to order.
Add to View Price
#31 SCREW, PAN (6X12)
93500-06012-0A
 $0.98
Unavailable
#31 SCREW, PAN (6X12)
93500-06012-00
Superseded by 93500-06012-0A
 $0.98
Unavailable
#32 SCREW, PAN (6X20)
93500-06020
Superseded by 93500-06020-0A
 $1.02
Available to order.
Add to View Price
#32 SCREW, PAN (6X20)
93500-06020-0A
 $1.02
Unavailable
#33 SCREW, OVAL (5X22)
93700-05022-0B
 $0.96
Available to order.
Add to View Price
#34 NUT, HEX. (8MM)
94001-08000-0S
 $1.32
Available to order.
Add to View Price
#35 NUT, CAP (8MM)
94021-08000-0S
 $1.64
Available to order.
Add to View Price
#36 SPARK PLUG (D8HA) (NGK)
98066-58714
Superseded by 98066-58717
 $2.70
Available to order.
Add to View Price
#36 SPARK PLUG (D8HA) (NGK)
98066-58717
 $2.70
Unavailable
