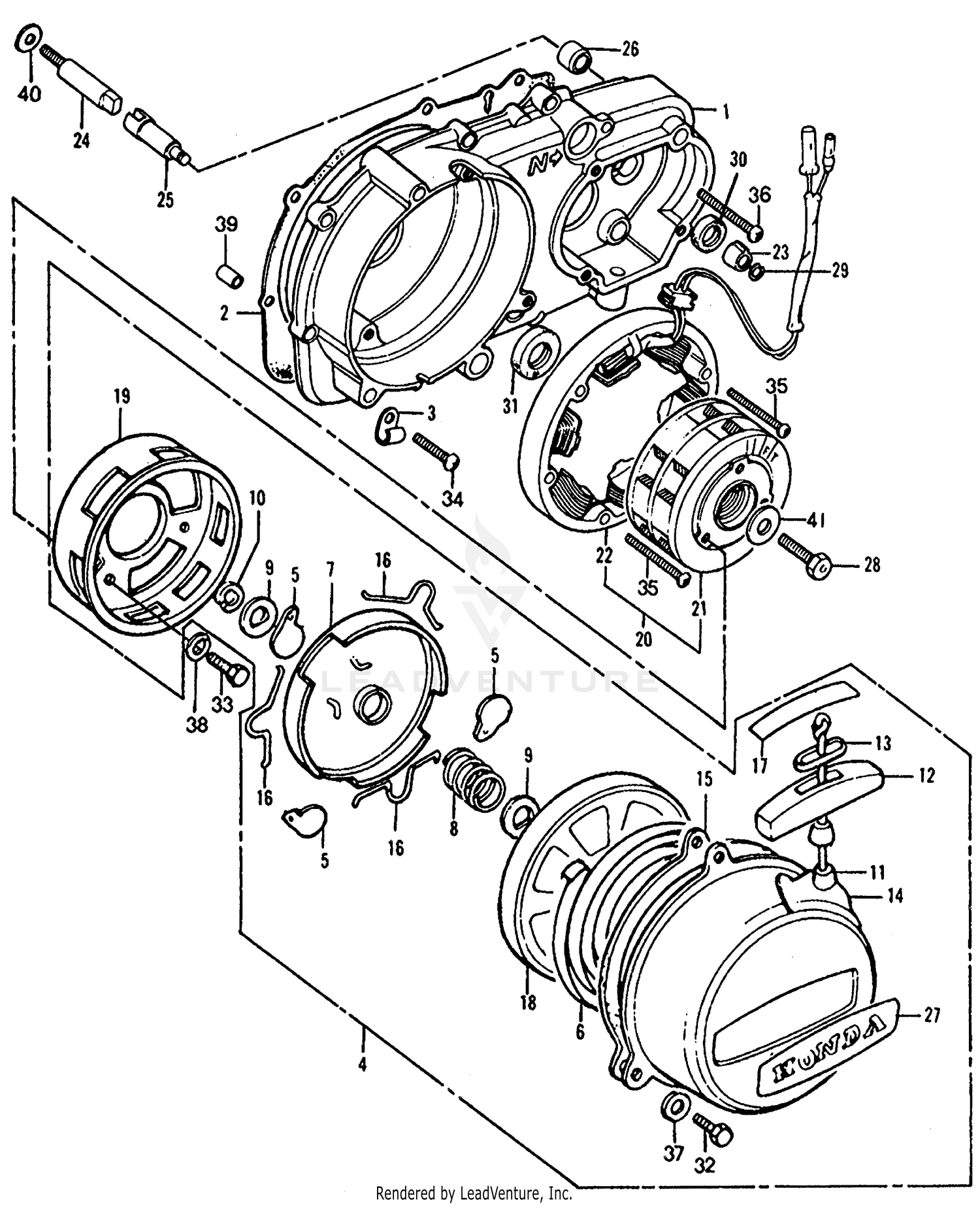

Left Crankcase Cover + Alternator + Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE
11341-918-010
|
$151.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, L. CRANKCASE COVER
11395-918-000
Superseded by 11395-918-306
|
$15.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, L. CRANKCASE COVER
11395-918-306
|
$15.16 | ||
|
Unavailable |
|||
|
#3
CLAMP, OVERFLOW TUBE
16236-045-000
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
STARTER ASSY., RECOIL *NH35* (CLOUD SILVER) (NOT AVAILABLE)
28400-918-000AU
|
$368.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
RATCHET, STARTER
28401-918-000
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, RECOIL STARTER
28402-918-000
|
$41.01 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, FRICTION
28403-918-000
|
$20.23 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, FRICTION
28404-918-000
|
$10.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (NOT AVAILABLE)
28405-918-000
|
$3.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
E-RING
28406-918-000
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROPE, RECOIL STARTER (NOT AVAILABLE)
28407-918-000
|
$63.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
KNOB, STARTER
28408-943-004
|
$18.96 | ||
|
Unavailable |
|||
|
#13
STOPPER, STARTER ROPE
28409-918-000
|
$4.69 | ||
|
Unavailable |
|||
|
#14
CASE, RECOIL STARTER *NH35* (CLOUD SILVER)
28410-918-010AU
|
$139.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, RECOIL STARTER
28411-918-300
Superseded by 28411-918-306
|
$7.74 | ||
|
Unavailable |
|||
|
#15
GASKET, RECOIL STARTER
28411-918-306
|
$7.74 | ||
|
Unavailable |
|||
|
#16
SPRING, SETTING
28413-918-000
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
TAPE, KNOB (NOT AVAILABLE)
28414-918-000
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
PULLEY, RECOIL STARTER
28420-918-000
|
$57.68 | ||
|
Available to order. Add to View Price |
|||
|
#19
PULLEY, STARTER
28430-918-000
|
$27.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE)
31100-918-004
|
$379.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROTOR (DENSO) (NOT AVAILABLE)
31101-918-004
|
$204.83 | ||
|
Available to order. Add to View Price |
|||
|
#22
STATOR (DENSO) (NOT AVAILABLE)
31102-918-004
|
$209.73 | ||
|
Available to order. Add to View Price |
|||
|
#23
INDICATOR, NEUTRAL
35762-HF7-000
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#23
INDICATOR, NEUTRAL
35762-918-020
Superseded by 35762-HF7-000
|
$5.02 | ||
|
Unavailable |
|||
|
#24
SHAFT A, NEUTRAL INDICATOR (NOT AVAILABLE)
35763-918-000
|
$21.09 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHAFT B, NEUTRAL INDICATOR (NOT AVAILABLE)
35764-918-000
|
$30.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR, NEUTRAL INDICATOR SHAFT (NOT AVAILABLE)
35765-918-000
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#27
EMBLEM, RECOIL STARTER (NOT AVAILABLE)
87101-918-300
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, ROTOR SETTING (NOT AVAILABLE)
90026-259-000
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#29
CIRCLIP (5MM)
90605-230-000
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL (12X21X4) (ARAI)
91201-035-010
Superseded by 91201-035-015
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL (20.8X35X8) (ARAI)
91201-943-013
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, HEX. (6X16)
92000-06016
Superseded by 92101-06016-0A
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, HEX. (6X16)
92000-06016-0A
Superseded by 92101-06016-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#32
BOLT, HEX. (6X16)
92000-06016-1A
Superseded by 92101-06016-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#32
BOLT, HEX. (6X16)
92100-06016-0A
Superseded by 92101-06016-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#32
BOLT, HEX. (6X16)
92101-06016-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#32
BOLT, HEX. (6X16)
92200-06016-0A
Superseded by 92101-06016-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#33
BOLT, HEX. (6X16)
92000-06016-49
Superseded by 92101-06016-4J
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, HEX. (6X16)
92101-06016-4J
|
$1.81 | ||
|
Unavailable |
|||
|
#34
SCREW, PAN (6X25)
93500-06025
Superseded by 93500-06025-0A
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN (6X32)
93500-06032
Superseded by 93500-06032-0A
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN (6X32)
93500-06032-0A
|
$1.25 | ||
|
Unavailable |
|||
|
#36
SCREW, PAN (6X40)
93500-06040
Superseded by 93500-06040-0A
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, PAN (6X40)
93500-06040-0A
|
$1.42 | ||
|
Unavailable |
|||
|
#37
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#37
WASHER, PLAIN (6MM)
94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#38
WASHER, SPRING (6MM)
94111-06000
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#39
PIN A, DOWEL (10X14)
94301-10140
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, GEARSHIFT DRUM SIDE (NOT AVAILABLE)
90417-918-000
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, ROTOR SETTING (NOT AVAILABLE)
90427-259-000
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
