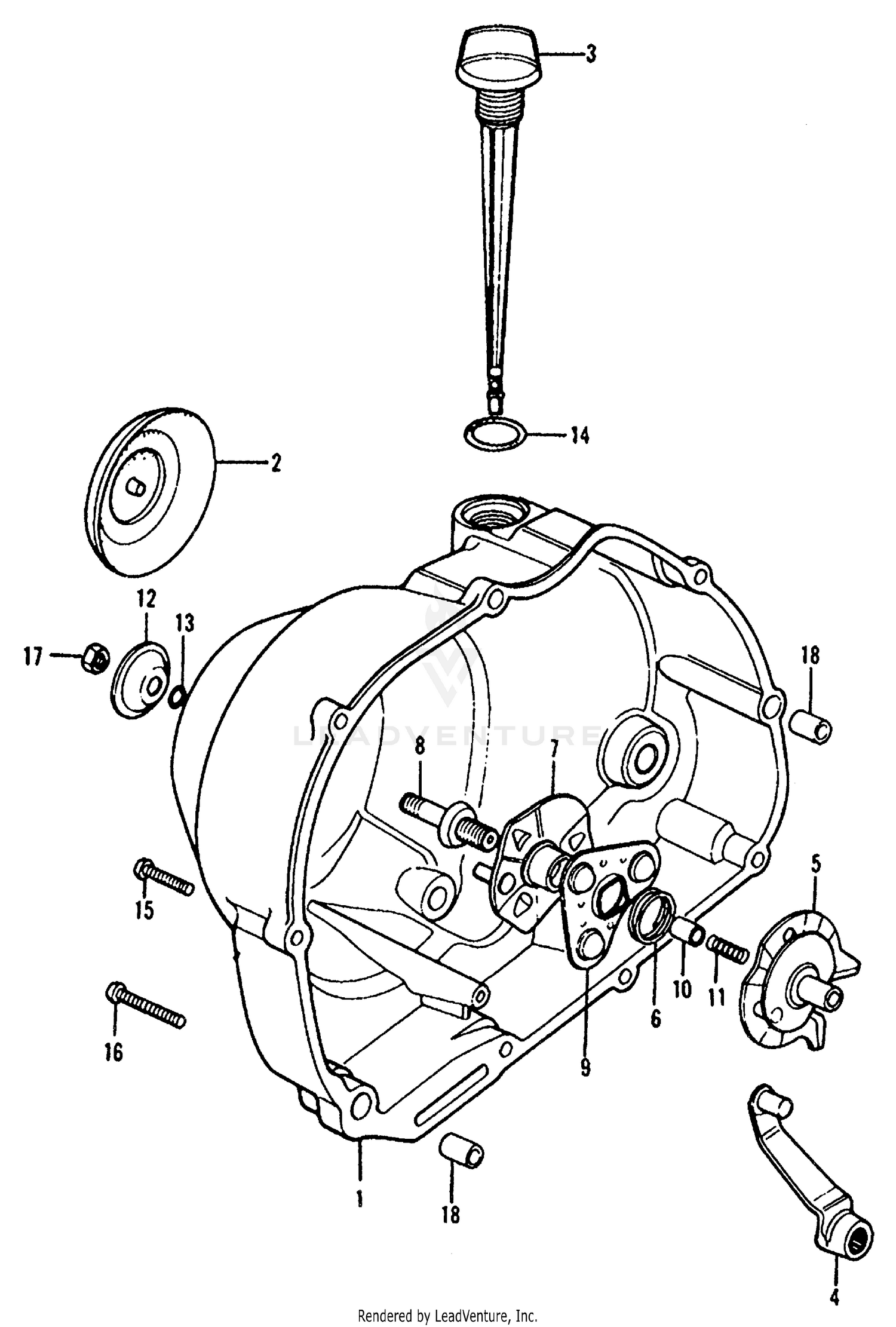

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE (NOT AVAILABLE)
11330-918-000
|
$288.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, R. CRANKCASE COVER
11335-102-700
|
$13.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIPSTICK, OIL
15650-102-700
Superseded by 15650-102-701
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIPSTICK, OIL
15650-102-701
|
$5.78 | ||
|
Unavailable |
|||
|
#4
LEVER, CLUTCH
22811-046-010
|
$24.04 | ||
|
Unavailable |
|||
|
#5
PLATE, CLUTCH CAM
22820-918-000
Superseded by 22820-918-020
|
$23.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, CLUTCH CAM
22820-918-010
Superseded by 22820-918-020
|
$23.65 | ||
|
Unavailable |
|||
|
#5
PLATE, CLUTCH CAM
22820-918-020
|
$23.65 | ||
|
Unavailable |
|||
|
#6
SPRING, CAM PLATE SIDE
22825-046-000
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH LIFTER
22830-046-000
|
$11.79 | ||
|
Unavailable |
|||
|
#8
BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)
22846-046-010
Superseded by 22846-046-020
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)
22846-046-020
|
$3.67 | ||
|
Unavailable |
|||
|
#9
RETAINER, CLUTCH BALL
22860-046-000
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
THROUGH, OIL
25551-918-000
Superseded by 25551-GEL-A80
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#10
THROUGH, OIL
25551-918-007
Superseded by 25551-GEL-A80
|
$7.23 | ||
|
Unavailable |
|||
|
#11
SPRING, OIL GUIDE
25555-046-000
|
$1.35 | ||
|
Unavailable |
|||
|
#12
WASHER, CLUTCH ADJUSTER
90485-102-700
Superseded by 90485-102-701
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, CLUTCH ADJUSTER
90485-102-701
|
$5.58 | ||
|
Unavailable |
|||
|
#13
O-RING (8X1.7) (ARAI)
91303-001-000
Superseded by 91306-HB3-003
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (8X1.7) (ARAI)
91306-HB3-003
|
$2.07 | ||
|
Unavailable |
|||
|
#14
O-RING (18X3) (ARAI)
91307-KF0-003
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (18X3)
91307-035-000
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN (6X20)
93500-06020
Superseded by 93500-06020-0A
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN (6X20)
93500-06020-0A
|
$1.02 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN (6X32)
93500-06032
Superseded by 93500-06032-0A
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (6X32)
93500-06032-0A
|
$1.25 | ||
|
Unavailable |
|||
|
#17
NUT, HEX. (8MM)
94001-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN A, DOWEL (10X16)
94301-10160
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
