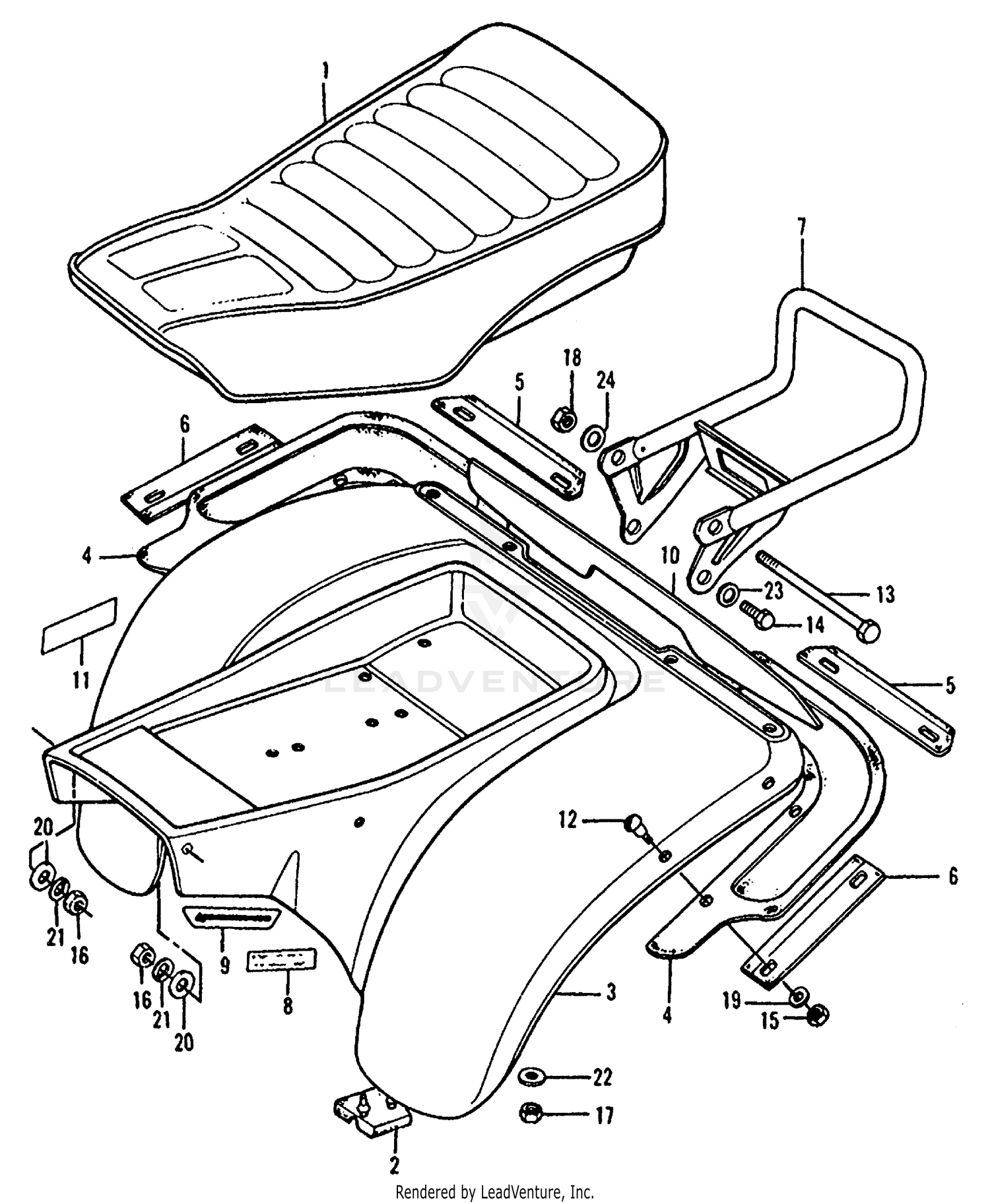

Seat + Frame Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY. (NOT AVAILABLE)
77200-942-000
|
$423.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, SEAT (NOT AVAILABLE)
77201-942-000
|
$26.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, FRAME *R20* (LIGHT SCARLET RED) (NOT AVAILABLE)
80100-942-010TR
|
$920.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPLASH GUARD, RR. (NOT AVAILABLE)
80111-942-000
Superseded by 80111-942-010
|
$36.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPLASH GUARD, RR. (NOT AVAILABLE)
80111-942-010
|
$36.55 | ||
|
Unavailable |
|||
|
#4
SPLASH GUARD, RR. (NOT AVAILABLE)
80111-942-810
Superseded by 80111-942-010
|
$36.55 | ||
|
Unavailable |
|||
|
#5
PLATE, RR. BODY COVER (NOT AVAILABLE)
80112-942-000
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, BODY COVER SIDE (NOT AVAILABLE)
80113-942-000
|
$17.14 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, CARRIER (NOT AVAILABLE)
81200-942-000
|
$232.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL, POSI-TORQUE (NOT AVAILABLE)
87130-918-305
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
LABEL, CARBURETOR CAUTION (NOT AVAILABLE)
87131-918-670
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
EMBLEM, BODY COVER (NOT AVAILABLE)
87506-942-010
|
$55.86 | ||
|
Available to order. Add to View Price |
|||
|
#11
LABEL, TIRE CAUTION (NOT AVAILABLE)
87541-942-010
|
$12.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (4X12)
90164-357-000
|
$7.17 | ||
|
Unavailable |
|||
|
#13
BOLT, HEX. (10X180)
90196-918-000
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. (8X16)
92000-08016-0A
Superseded by 92101-08016-0A
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. (8X16)
92101-08016-0A
|
$1.49 | ||
|
Unavailable |
|||
|
#15
NUT, HEX. (4MM)
94001-04000-0S
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEX. (5MM)
94001-05000-0S
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEX. (6MM)
94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (10MM)
94001-10000-0S
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN (4MM)
94101-04000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN (5MM)
94101-05000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING (5MM)
94111-05000
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING (6MM)
94111-06000
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING (8MM)
94111-08000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING (8MM)
94111-10000
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
