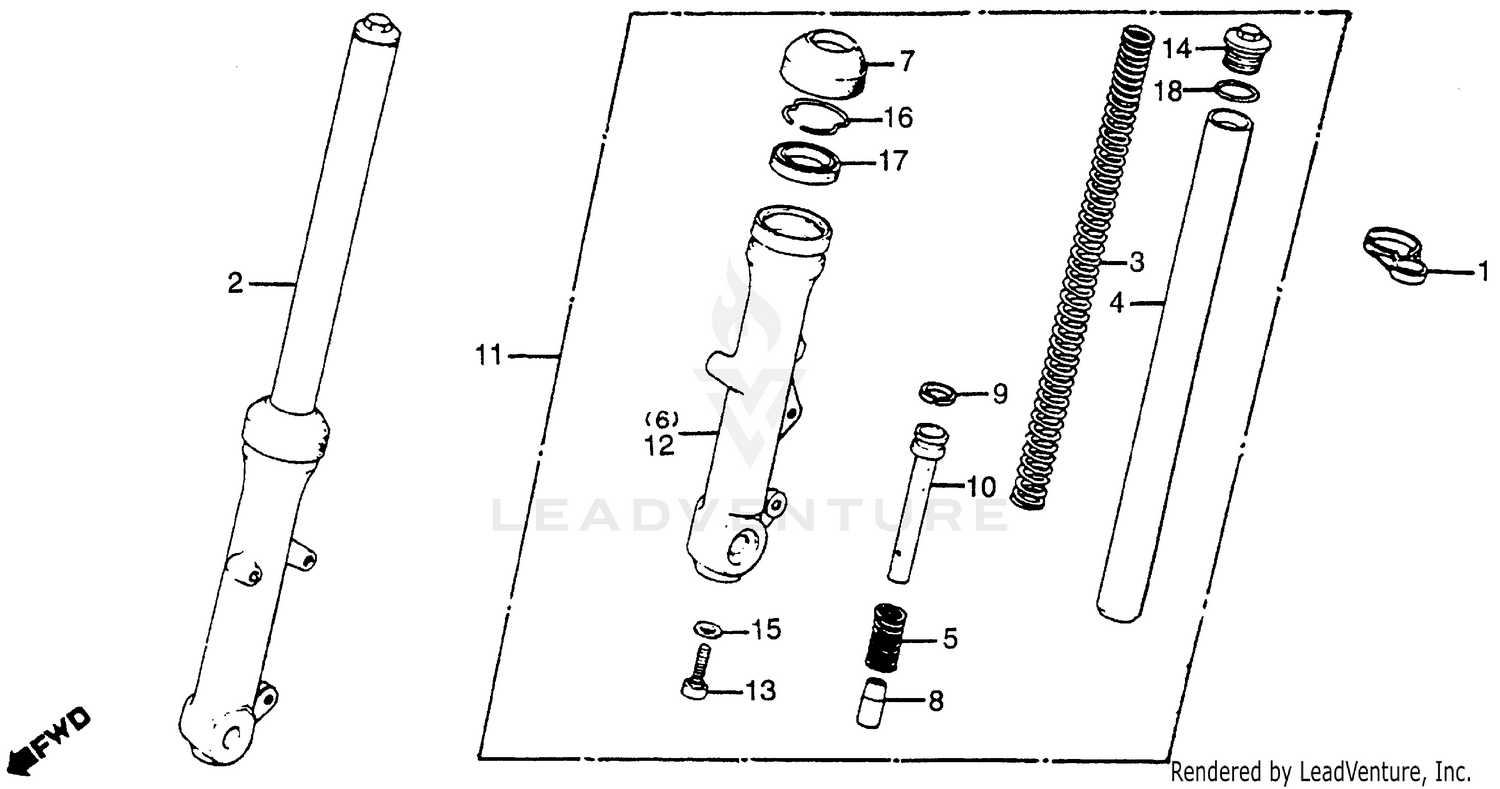

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, BRAKE CABLE
45468-383-670
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK ASSY., R. FR. (NOT AVAILABLE)
51400-383-724
|
$315.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, FR. FORK (SHOWA)
51401-383-722
|
$42.86 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, FR. FORK (SHOWA) (NOT AVAILABLE)
51410-383-723
|
$154.28 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, REBOUND
51412-383-721
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE, R. FR. FORK (LOWER) (SHOWA) (NOT AVAILABLE)
51421-383-722
|
$154.28 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUST SEAL, FR. FORK
51425-149-841
|
$12.94 | ||
|
Unavailable |
|||
|
#8
PIECE, OIL LOCK (NOT AVAILABLE)
51432-383-721
|
$13.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, PISTON
51437-GM0-003
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, PISTON
51437-383-721
Superseded by 51437-GM0-003
|
$6.09 | ||
|
Unavailable |
|||
|
#10
PIPE, SEAT (SHOWA) (NOT AVAILABLE)
51470-383-723
|
$32.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
FORK ASSY., L. FR. (NOT AVAILABLE)
51500-383-882
|
$315.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE, L. FR. FORK (LOWER) (NOT AVAILABLE)
51521-383-881
|
$154.28 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SOCKET (8X27)
90116-383-721
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FORK (SHOWA) (NOT AVAILABLE)
90123-383-721
|
$14.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPECIAL (8MM)
90544-283-000
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, OIL SEAL STOPPER (SHOWA)
90601-383-721
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL, FR. FORK
90756-149-841
|
$17.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (17.8X2.4) (SHOWA)
91256-383-721
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
