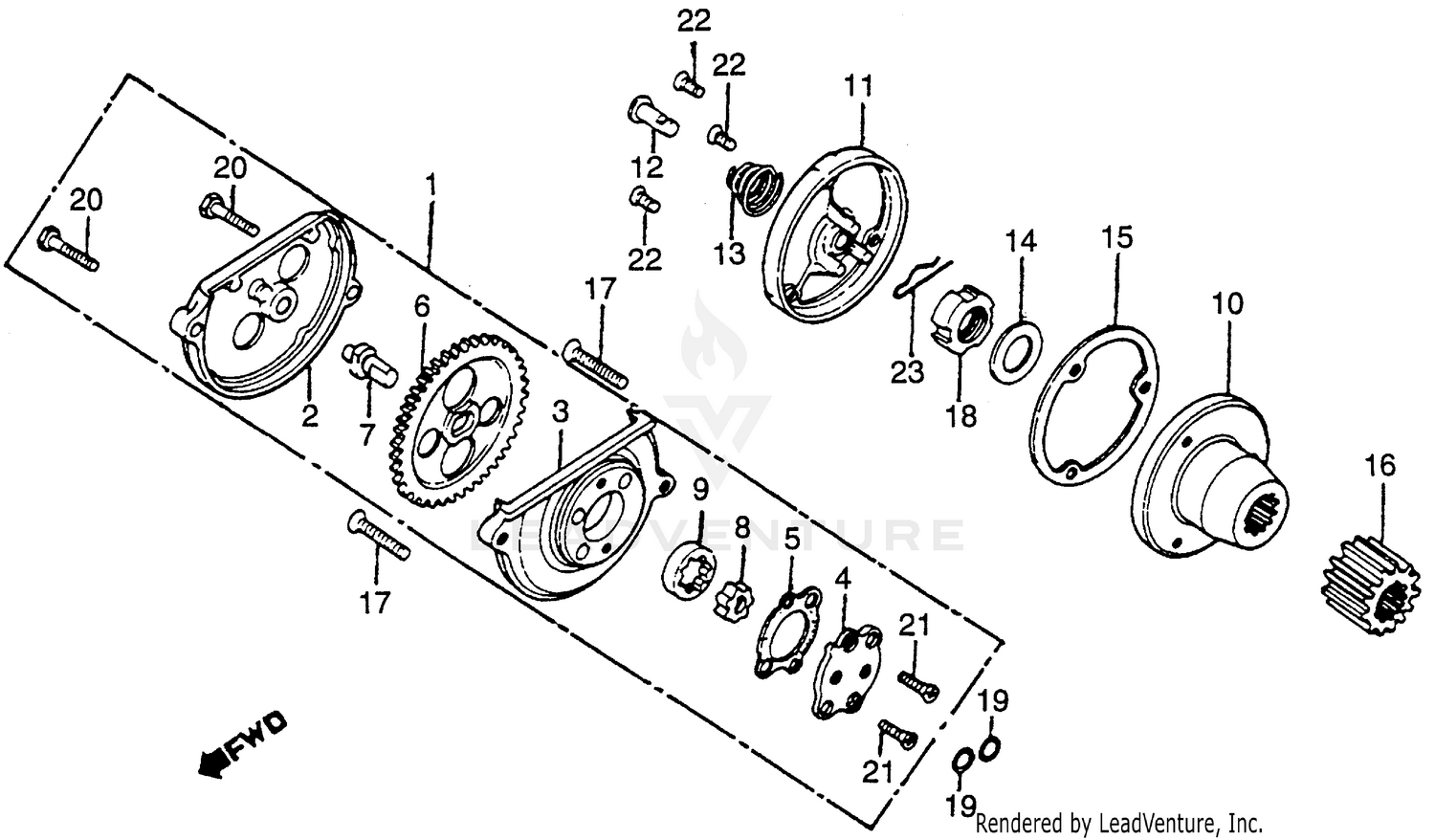

Oil Pump + Oil Filter Rotor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., OIL
15100-KCS-851
|
$149.88 | ||
|
Available to order. Add to View Price |
|||
|
#1
PUMP ASSY., OIL
15100-383-870
Superseded by 15100-KCS-851
|
$149.88 | ||
|
Unavailable |
|||
|
#1
PUMP ASSY., OIL
15100-383-871
Superseded by 15100-KCS-851
|
$149.88 | ||
|
Unavailable |
|||
|
#2
COVER, OIL PUMP GEAR
15106-330-000
Superseded by 15106-330-010
|
$29.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, OIL PUMP GEAR
15106-330-010
|
$29.02 | ||
|
Unavailable |
|||
|
#3
BODY, OIL PUMP
15111-KBB-900
|
$53.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
BODY, OIL PUMP
15111-KW1-900
Superseded by 15111-KBB-900
|
$53.67 | ||
|
Unavailable |
|||
|
#3
BODY, OIL PUMP
15111-440-000
Superseded by 15111-KBB-900
|
$53.67 | ||
|
Unavailable |
|||
|
#3
BODY, OIL PUMP
15111-440-010
Superseded by 15111-KBB-900
|
$53.67 | ||
|
Unavailable |
|||
|
#4
PLATE, OIL PUMP
15116-107-020
|
$16.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, OIL PUMP
15126-107-020
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, OIL PUMP DRIVE (39T)
15131-324-010
|
$52.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, OIL PUMP (NOT AVAILABLE)
15136-383-000
|
$15.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROTOR, OIL PUMP (INNER) (YAMADA)
15331-399-000
|
$16.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROTOR, OIL PUMP (OUTER) (YAMADA)
15332-399-000
|
$21.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROTOR, OIL FILTER
15430-440-010
Superseded by 15430-440-030
|
$70.57 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROTOR, OIL FILTER
15430-440-020
Superseded by 15430-440-030
|
$70.57 | ||
|
Unavailable |
|||
|
#10
ROTOR, OIL FILTER
15430-440-030
|
$70.57 | ||
|
Unavailable |
|||
|
#11
CAP, OIL FILTER ROTOR
15436-107-000
|
$43.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
THROUGH, OIL
15441-KCS-650
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
THROUGH, OIL
15441-107-000
Superseded by 15441-KCS-650
|
$7.40 | ||
|
Unavailable |
|||
|
#13
SPRING, OIL THROUGH
15446-107-000
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, OIL FILTER ROTOR LOCKING
15451-107-000
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
GSKT, OIL FILTER CAP
15459-KT0-710
Superseded by 15459-K70-630
|
$4.28 | ||
|
Available to order. Add to View Price |
|||
|
#15
GSKT, OIL FILTER CAP
15459-107-000
Superseded by 15459-K70-630
|
$4.28 | ||
|
Unavailable |
|||
|
#15
GSKT, OIL FILTER CAP
15459-107-306
Superseded by 15459-K70-630
|
$4.28 | ||
|
Unavailable |
|||
|
#16
GEAR, PRIMARY DRIVE (19T)
23121-KCS-650
|
$43.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, PRIMARY DRIVE (19T)
23121-383-000
Superseded by 23121-KCS-650
|
$43.56 | ||
|
Unavailable |
|||
|
#17
SCREW, FLAT (6X30)
90101-440-000
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, LOCK (16MM)
90231-107-000
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (9.4X2.4)
91304-KK3-830
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (9.4X2.4)
91304-107-000
Superseded by 91304-KK3-830
|
$2.44 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX. (5X20)
92000-05020-0H
Superseded by 92101-05020-0H
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEX. (5X20)
92101-05020-0H
|
$1.17 | ||
|
Unavailable |
|||
|
#21
SCREW, FLAT (4X12)
93600-04012-0A
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, OVAL (5X12)
93700-05012-0A
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, LOCK (8MM)
94251-08000
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
