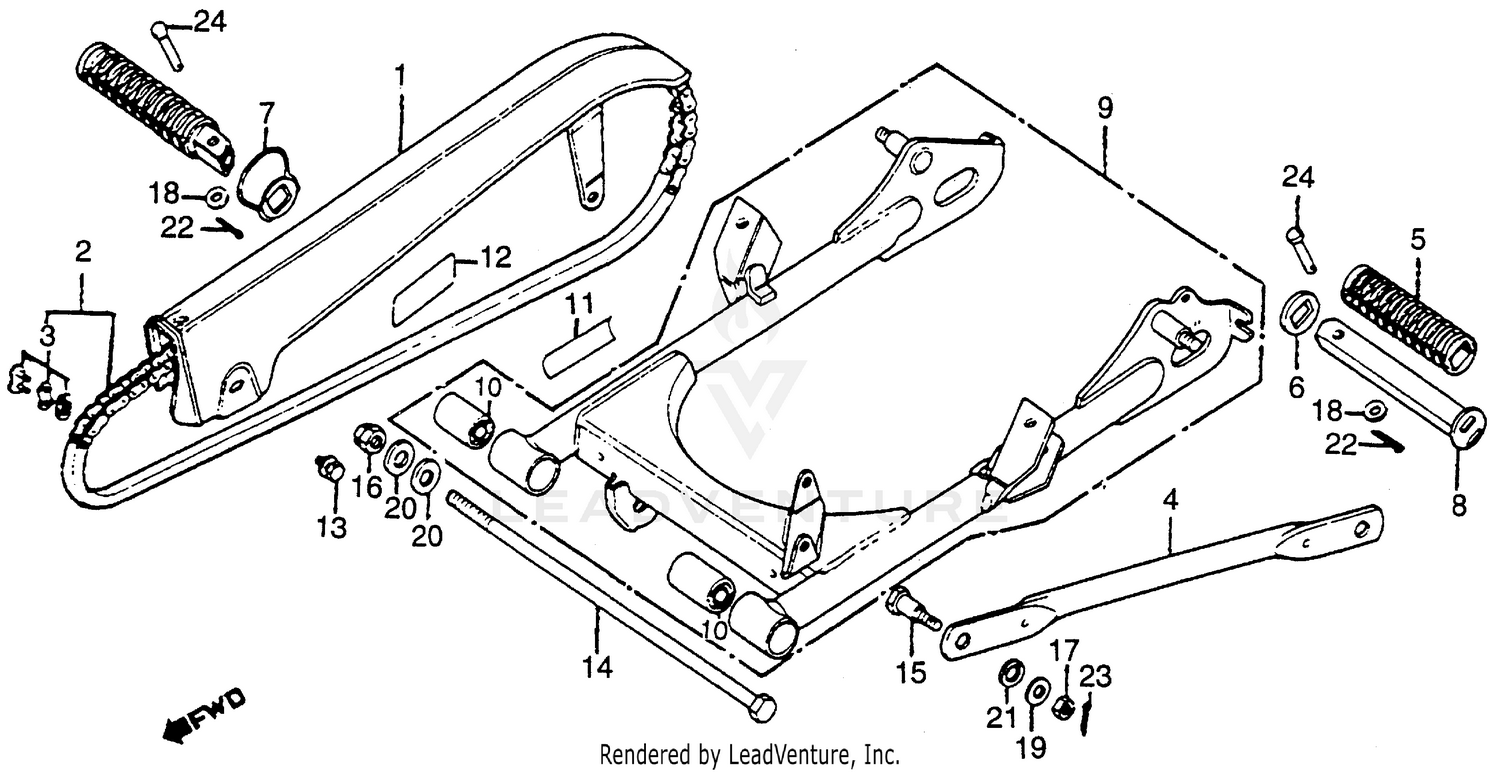

Swingarm + Chain Case Y- Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, DRIVE CHAIN (NOT AVAILABLE)
40510-383-720
|
$47.61 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, DRIVE (104L) (DAIDO)
405W3-KA8-505
|
$51.71 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE (104L) (DAIDO)
40530-028-005
Superseded by 405W3-KA8-505
|
$51.71 | ||
|
Unavailable |
|||
|
#2
CHAIN, DRIVE (104L) (DAIDO)
40530-028-013
Superseded by 405W3-KA8-505
|
$51.71 | ||
|
Unavailable |
|||
|
#3
MASTER LINK (TAKASAGO) (NOT AVAILABLE)
40531-028-005
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER LINK (TAKASAGO) (NOT AVAILABLE)
40531-205-005
Superseded by 40531-028-005
|
$3.71 | ||
|
Unavailable |
|||
|
#3
MASTER LINK
40531-205-013
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM, RR. BRAKE STOPPER (NOT AVAILABLE)
43431-383-720
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, PILLION FOOTPEG
50710-377-000
Superseded by 50716-371-660
|
$16.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, PILLION FOOTPEG
50716-371-660
|
$16.48 | ||
|
Unavailable |
|||
|
#6
WASHER, PILLION FOOTPEG
50712-377-000
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PILLION FOOTPEG
50712-385-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAR, PILLION FOOTPEG
50715-MA6-000
|
$20.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAR, PILLION FOOTPEG
50715-377-000
Superseded by 50715-MA6-000
|
$20.95 | ||
|
Unavailable |
|||
|
#9
SWINGARM ASSY., RR. *NH1* (BLACK)
52100-383-720ZA
|
$231.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, SWINGARM PIVOT
52147-028-300
|
$20.74 | ||
|
Available to order. Add to View Price |
|||
|
#11
LABEL, MUFFLER CAUTION
87504-028-670
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
MARK, TIRE CAUTION (NOT AVAILABLE)
87505-383-830
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (6X6)
90118-383-000
|
$1.61 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, RR. SWINGARM PIVOT
90121-KE6-830
|
$14.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, RR. SWINGARM PIVOT
90121-107-780
Superseded by 90121-KE6-830
|
$14.87 | ||
|
Unavailable |
|||
|
#15
BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)
90133-331-770
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SELF-LOCK (12MM)
90353-045-000
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEX. (8MM)
94001-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#18
WASHER, PLAIN (6MM)
94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#19
WASHER, PLAIN (8MM)
94101-08000
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN (12MM)
94101-12000
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING (10MM)
94111-10000
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, COTTER (1.6X25)
94201-16250
|
$1.03 | ||
|
Unavailable |
|||
|
#23
PIN, SPLIT (2.0X15)
94201-20150
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN A, PILLION STEP
95015-81000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
