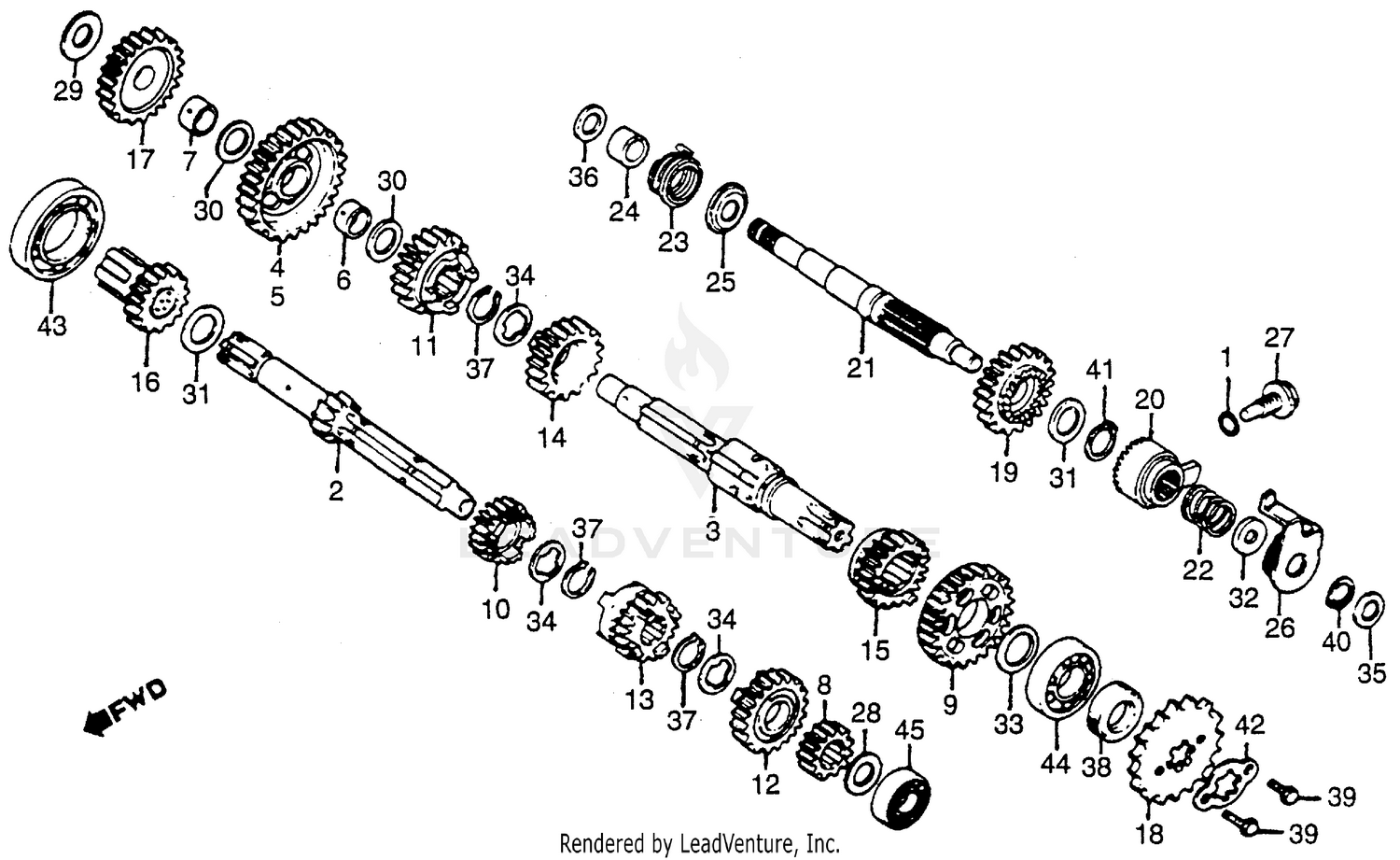

Transmission + Kick Starter Spindle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
O-RING (11.8X2.4)
16997-357-003
Superseded by 91302-ZE9-003
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (11.8X2.4)
91302-ZE9-000
Superseded by 91302-ZE9-003
|
$3.09 | ||
|
Unavailable |
|||
|
#1
O-RING (11.8X2.4)
91302-ZE9-003
|
$3.09 | ||
|
Unavailable |
|||
|
#1
O-RING (11.8X2.4)
91320-HA5-000
Superseded by 91302-ZE9-003
|
$3.09 | ||
|
Unavailable |
|||
|
#1
O-RING (11.8X2.4)
91320-HA5-003
Superseded by 91302-ZE9-003
|
$3.09 | ||
|
Unavailable |
|||
|
#1
O-RING (11.8X2.4)
91320-MJ6-003
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
MAINSHAFT, TRANSMISSION (13T)
23211-383-000
Superseded by 23211-383-003
|
$87.23 | ||
|
Available to order. Add to View Price |
|||
|
#2
MAINSHAFT, TRANSMISSION (13T)
23211-383-003
|
$87.23 | ||
|
Unavailable |
|||
|
#3
COUNTERSHAFT, TRANSMISSION
23221-107-020
|
$98.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, COUNTERSHAFT LOW (36T)
23426-KCS-650
|
$66.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, COUNTERSHAFT LOW (36T)
23426-439-320
Superseded by 23426-KCS-650
|
$66.35 | ||
|
Unavailable |
|||
|
#6
COLLAR, COUNTERSHAFT LOW GEAR
23427-439-000
|
$20.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSHING
23431-439-000
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT SECOND (17T)
23441-383-000
|
$40.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT SECOND (32T)
23451-439-000
|
$68.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, MAINSHAFT THIRD (20T)
23461-439-000
|
$87.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, COUNTERSHAFT THIRD (29T)
23471-383-000
|
$90.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, MAINSHAFT FOURTH (25T)
23481-427-000
|
$71.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT FOURTH (23T)
23481-439-000
|
$92.88 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, COUNTERSHAFT FOURTH (27T)
23491-383-000
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, COUNTERSHAFT FIFTH (25T) (NOT AVAILABLE)
23511-383-000
|
$55.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, STARTER (19T)
23520-437-000
|
$96.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR ONLY, IDLE STARTER (28T)
23531-437-310
|
$54.78 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, DRIVE (15T)
23801-KC6-000
|
$29.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, DRIVE (15T)
23801-324-000
Superseded by 23801-KC6-000
|
$29.47 | ||
|
Unavailable |
|||
|
#19
PINION, KICK STARTER (30T)
28211-437-000
|
$75.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
RATCHET, KICK STARTER
28221-437-000
|
$70.72 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPINDLE, KICK STARTER
28251-437-000
|
$67.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, KICK STARTER RATCHET
28253-397-000
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, KICK STARTER
28261-437-000
|
$12.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR, KICK SPINDLE
28262-437-000
|
$15.46 | ||
|
Available to order. Add to View Price |
|||
|
#25
RETAINER, STARTER SPRING
28263-437-000
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, KICK RATCHET
90004-437-000
|
$9.84 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, THRUST (15MM)
90451-107-000
|
$1.57 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, THRUST (15MM)
90451-365-000
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, THRUST (16.5MM)
90452-107-000
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER A, THRUST (20MM)
90453-107-000
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
SEAT, RATCHET SPRING
28254-437-000
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, THRUST (20MM)
90454-107-000
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER A, SPLINE (20MM)
90455-107-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, THRUST (12MM)
90459-107-000
|
$1.57 | ||
|
Available to order. Add to View Price |
|||
|
#37
SET-RING (20MM)
90605-200-000
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#38
OIL SEAL (20X34X7) (ARAI)
91201-030-025
Superseded by 91201-030-033
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#38
OIL SEAL (20X34X7) (ARAI)
91201-030-023
Superseded by 91201-030-033
|
$6.66 | ||
|
Unavailable |
|||
|
#38
OIL SEAL (20X34X7) (ARAI)
91201-030-033
|
$6.66 | ||
|
Unavailable |
|||
|
#39
BOLT, HEX. (6X10)
92000-06010
Superseded by 92101-06010-0A
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.40 | ||
|
Unavailable |
|||
|
#40
CIRCLIP (OUTER) (16MM)
94510-16000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#41
CIRCLIP, OUTER (20MM)
94510-20000
|
$1.34 | ||
|
Available to order. Add to View Price |
|||
|
#42
PLATE B, FIXING
95014-92100
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#43
BEARING, RADIAL BALL (6006)
96100-60060
Superseded by 96100-60060-00
|
$15.23 | ||
|
Available to order. Add to View Price |
|||
|
#43
BEARING, RADIAL BALL (6006)
96100-60060-00
|
$15.23 | ||
|
Unavailable |
|||
|
#44
BEARING, RADIAL BALL (6204)
96100-62040
Superseded by 96100-62040-00
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#44
BEARING, RADIAL BALL (6204)
96100-62040-00
|
$14.15 | ||
|
Unavailable |
|||
|
#45
BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.)
96120-62020
Superseded by 96120-62020-10
|
$10.92 | ||
|
Available to order. Add to View Price |
|||
|
#45
BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.)
96120-62020-10
|
$10.92 | ||
|
Unavailable |
|||
