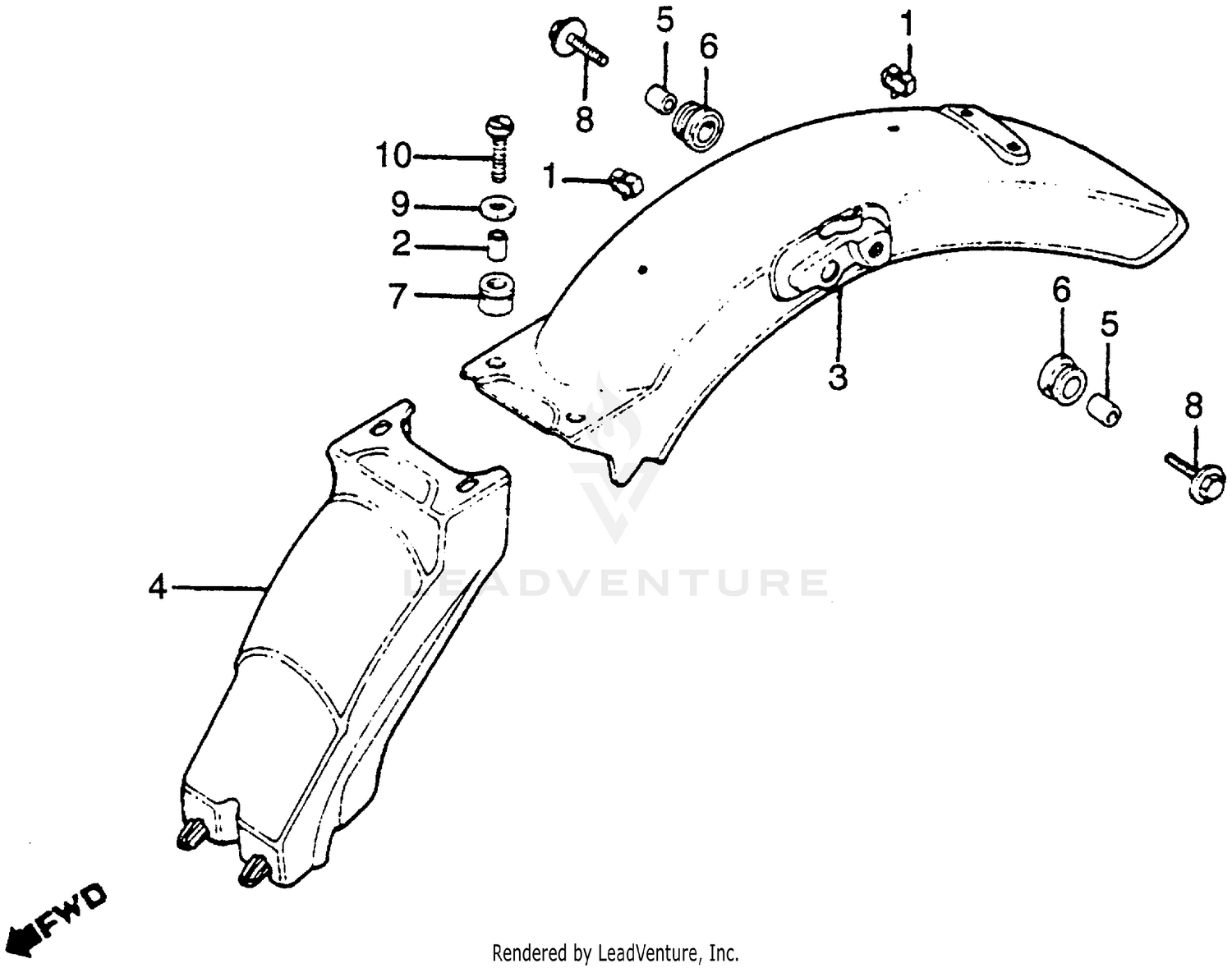

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET, WIRE
32985-300-000
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, BATTERY BOX
50324-300-000
|
$3.28 | ||
|
Unavailable |
|||
|
#3
FENDER, RR. *NH1* (BLACK) (NOT AVAILABLE)
80100-383-870ZB
|
$92.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
FENDER, RR. *PB118CU* (CANDY IMPERIAL BLUE)
80100-383-870ZC
|
$125.94 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER B, RR. (NOT AVAILABLE)
80101-383-770
|
$46.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR A, RR. FENDER (NOT AVAILABLE)
80108-028-000
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER A, RR. FENDER (NOT AVAILABLE)
80110-107-780
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, BRACKET
84905-118-000
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X25)
90122-369-000
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, WHEEL (6MM)
90563-355-000
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, RECESSED (6X25)
92300-06025
Superseded by 92301-06025-0A
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, RECESSED (6X25)
92300-06025-0A
Superseded by 92301-06025-0A
|
$1.59 | ||
|
Unavailable |
|||
|
#10
BOLT, RECESSED (6X25)
92301-06025-0A
|
$1.59 | ||
|
Unavailable |
|||
