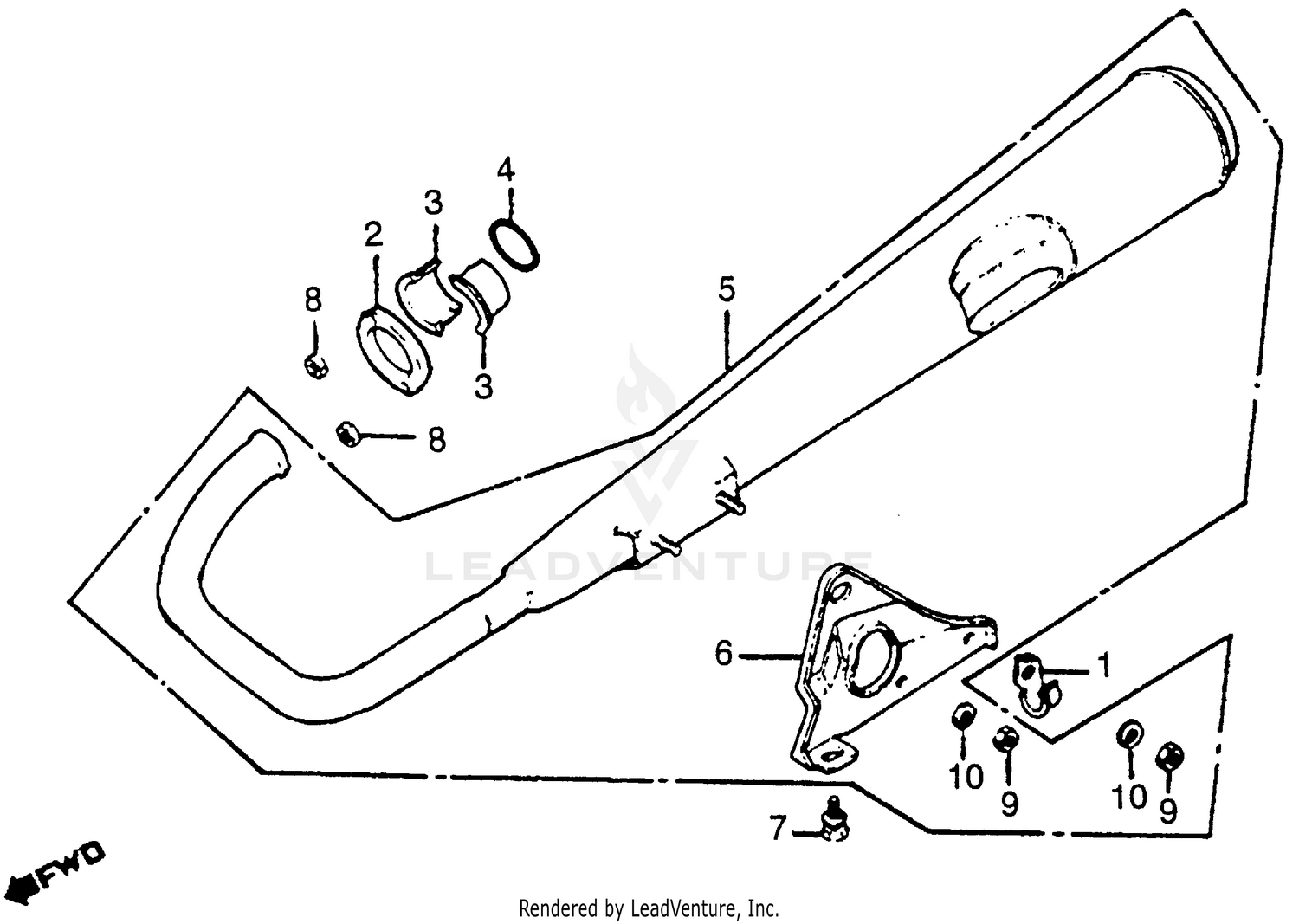

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE B, DRAIN PIPE (NOT AVAILABLE)
17367-383-770
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, EX. PIPE
18231-365-670
|
$43.21 | ||
|
Unavailable |
|||
|
#3
COLLAR, EX. PIPE JOINT
18233-330-000
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, EX. PIPE
18291-MN5-650
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, EX. PIPE
18291-216-000
Superseded by 18291-MN5-650
|
$4.52 | ||
|
Unavailable |
|||
|
#5
MUFFLER, EX. (NOT AVAILABLE)
18300-383-830
Superseded by 18300-383-837
|
$228.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
MUFFLER, EX. (NOT AVAILABLE)
18300-383-837
|
$228.36 | ||
|
Unavailable |
|||
|
#6
BRACKET, MUFFLER *NH1* (BLACK) (NOT AVAILABLE)
18353-383-830ZA
|
$21.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT-WASHER (8X16)
93412-08016-00
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT-WASHER (8X16)
93482-08016-00
Superseded by 93412-08016-00
|
$1.31 | ||
|
Unavailable |
|||
|
#8
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#8
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#8
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#8
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#8
NUT, HEX. (6MM)
94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#8
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#9
NUT, HEX. (8MM)
94001-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING (8MM)
94111-08000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
