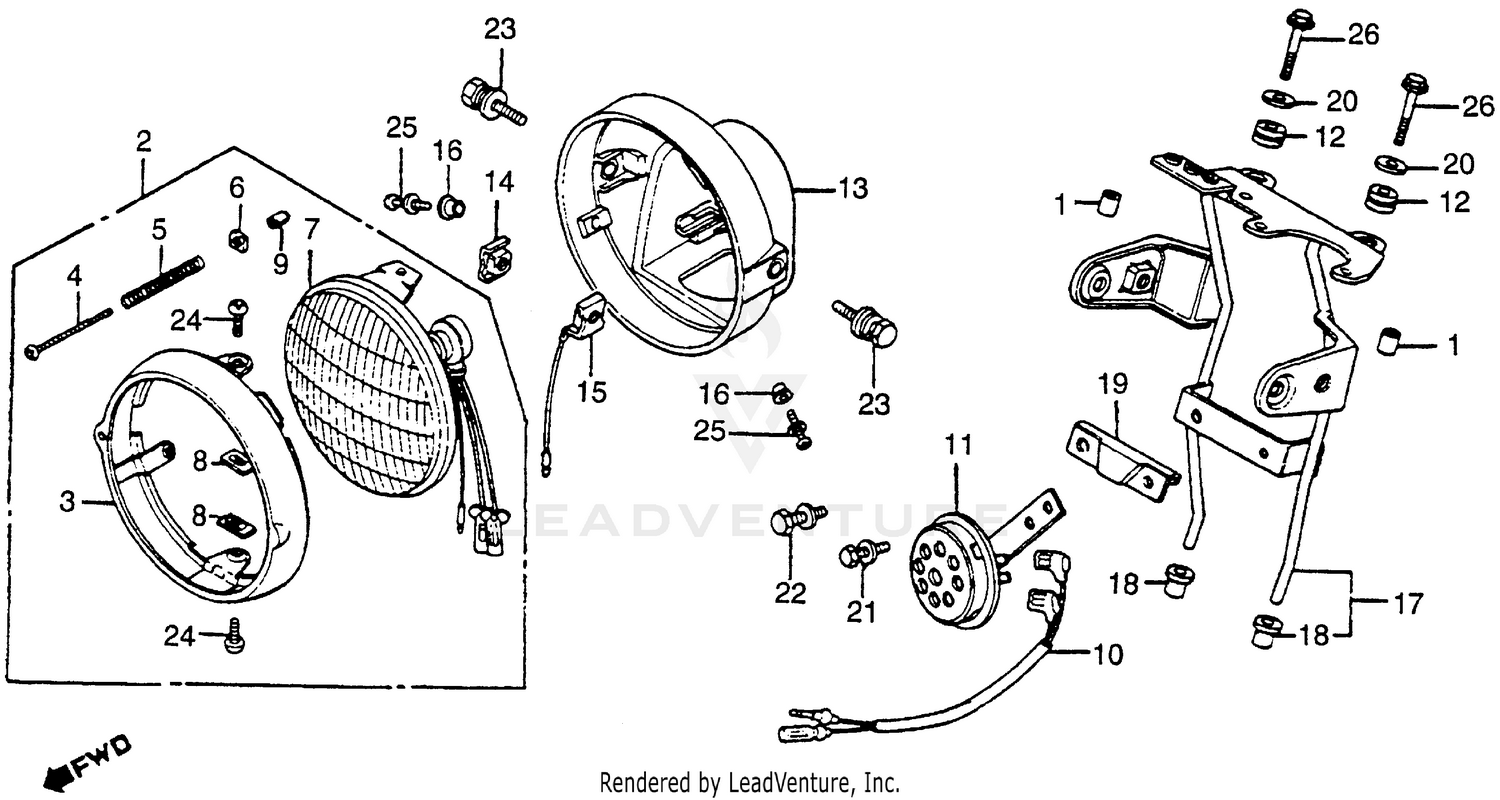

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR B, MOUNTING
17264-634-960
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
HEADLIGHT ASSY. (6V 35/36.5W) (NOT AVAILABLE)
33100-428-671
|
$101.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIM, HEADLIGHT (NOT AVAILABLE)
33101-329-671
|
$29.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, HEADLIGHT BEAM ADJUSTING
33103-329-003
|
$3.96 | ||
|
Unavailable |
|||
|
#4
SCREW, HEADLIGHT BEAM ADJUSTING
33103-329-671
Superseded by 33103-329-003
|
$3.96 | ||
|
Unavailable |
|||
|
#5
SPRING, HEADLIGHT BEAM ADJUSTING
33107-200-023
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, HEADLIGHT BEAM ADJUSTING
33107-283-023
Superseded by 33107-200-023
|
$3.62 | ||
|
Unavailable |
|||
|
#6
NUT, HEADLIGHT BEAM ADJUSTING
33117-001-023
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
HEADLIGHT UNIT
33120-428-671
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, UNIT HOLDER
33128-200-033
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, SCREW
33136-426-830
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
SUB-WIRE, HORN
38105-312-670
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
HORN (HIGH)
38110-192-004
|
$27.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
HORN (HIGH)
38110-382-770
Superseded by 38110-192-004
|
$27.67 | ||
|
Unavailable |
|||
|
#12
RUBBER, FR. FENDER MOUNTING
61103-357-000
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
CASE, HEADLIGHT *NH1* (BLACK)
61301-399-000ZA
|
$63.54 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEADLIGHT CASE
61303-105-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, HEADLIGHT CASE
61303-159-010
Superseded by 61303-159-020
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, HEADLIGHT CASE
61303-159-020
|
$8.75 | ||
|
Unavailable |
|||
|
#16
COLLAR, HEADLIGHT SETTING
61304-292-000
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, HEADLIGHT CASE (NOT AVAILABLE)
61311-383-830
|
$129.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOOT, HEADLIGHT BRACKET
61312-149-300
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, HORN STAY (NOT AVAILABLE)
61312-383-720
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, WHEEL (6MM)
90563-355-000
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, WHEEL (6MM)
91414-634-000
Superseded by 90563-355-000
|
$3.77 | ||
|
Unavailable |
|||
|
#21
BOLT-WASHER (6X12)
93401-06012-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT-WASHER (6X12)
93411-06012-00
Superseded by 93401-06012-00
|
$1.64 | ||
|
Unavailable |
|||
|
#21
BOLT-WASHER (6X12)
93481-06012-00
Superseded by 93401-06012-00
|
$1.64 | ||
|
Unavailable |
|||
|
#22
BOLT-WASHER (8X12)
93481-08012-00
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT-WASHER (8X25) (NOT AVAILABLE)
93483-08025-00
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN (5X8)
93500-05008-0H
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (5X16)
93892-05016-00
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (5X16)
93892-05016-10
Superseded by 93892-05016-00
|
$0.68 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (6X25)
95700-06025-00
Superseded by 95701-06025-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.79 | ||
|
Unavailable |
|||
