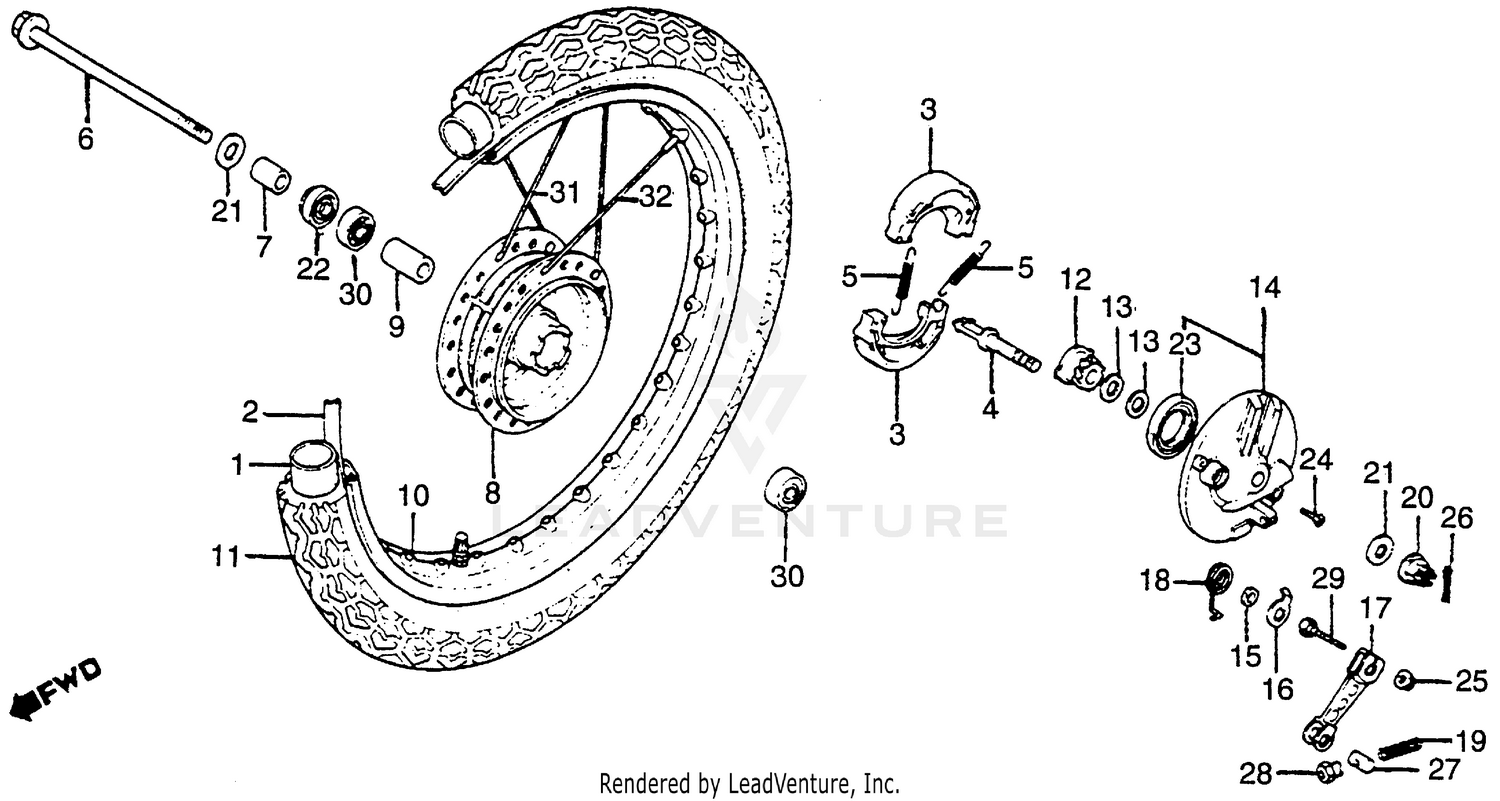

Front Wheel Diagram

Item MSRP Qty
#NI SHOE SET, BRAKE (ASK)
06430-GBJ-J10
 $33.88
Available to order.
Add to View Price
#NI SHOE SET, BRAKE (ASK)
06430-KT0-305
Superseded by 06430-GBJ-J10
 $33.88
Unavailable
#NI SHOE SET, BRAKE (ASK)
06430-365-674
Superseded by 06430-GBJ-J10
 $33.88
Unavailable
#NI SHOE SET, BRAKE (ASK)
431A2-365-672
Superseded by 06430-GBJ-J10
 $33.88
Unavailable
#1 TUBE (275/300-18) (IRC)
0Y400-26800
Superseded by 42712-KC6-005
 $11.82
Available to order.
Add to View Price
#1 TUBE (275/300-18) (IRC)
08400-26800
Superseded by 42712-KC6-005
 $11.82
Unavailable
#1 TUBE (275/300-18) (IRC)
42712-KC6-005
 $11.82
Unavailable
#1 TUBE (275/300-18) (IRC)
42712-168-004
Superseded by 42712-KC6-005
 $11.82
Unavailable
#1 TUBE (275/300-18) (IRC)
42712-268-000
Superseded by 42712-KC6-005
 $11.82
Unavailable
#1 TUBE (275/300-18) (IRC)
42712-268-003
Superseded by 42712-KC6-005
 $11.82
Unavailable
#1 TUBE (275/300-18) (IRC)
42712-268-810
Superseded by 42712-KC6-005
 $11.82
Unavailable
#1 TUBE (275/300-18) (IRC)
42712-304-003
Superseded by 42712-KC6-005
 $11.82
Unavailable
#1 TUBE, TIRE (2.50/2.75-18) (NITTO)
42712-304-006
Unavailable
#1 TUBE (275/300-18) (IRC)
42712-307-006
Superseded by 42712-KC6-005
 $11.82
Unavailable
#1 TUBE (275/300-18) (IRC)
42712-315-009
Superseded by 42712-KC6-005
 $11.82
Unavailable
#1 TUBE (275/300-18) (IRC)
42712-388-009
Superseded by 42712-KC6-005
 $11.82
Unavailable
#1 TUBE (275/300-18) (IRC)
44712-305-003
Superseded by 42712-KC6-005
 $11.82
Unavailable
#2 FLAP, TIRE (BS)
42713-304-003
 $8.03
Available to order.
Add to View Price
#2 FLAP, TIRE (18) (NITTO)
42713-304-006
Unavailable
#3 SHOE SET, BRAKE (ASK)
06430-GBJ-J10
 $33.88
Unavailable
#3 SHOE SET, BRAKE (ASK)
06430-KT0-305
Superseded by 06430-GBJ-J10
 $33.88
Unavailable
#3 SHOE SET, BRAKE (ASK)
43120-365-671
Superseded by 06430-GBJ-J10
 $33.88
Unavailable
#3 SHOE SET, BRAKE (ASK)
43120-365-672
Superseded by 06430-GBJ-J10
 $33.88
Unavailable
#4 CAM, RR. BRAKE
43141-400-010
 $26.09
Available to order.
Add to View Price
#5 SPRING, BRAKE SHOE (NK)
43151-110-000
 $3.36
Available to order.
Add to View Price
#6 AXLE, FR. WHEEL (NOT AVAILABLE)
44301-098-010
 $13.30
Available to order.
Add to View Price
#7 COLLAR, FR. WHEEL SIDE
44311-229-000
 $7.92
Available to order.
Add to View Price
#8 HUB, FR. WHEEL
44601-383-870
 $157.10
Available to order.
Add to View Price
#9 COLLAR, FR. AXLE DISTANCE
44620-400-000
 $10.21
Available to order.
Add to View Price
#10 RIM (2.50.18.4PR)
44701-383-881
Superseded by 42701-028-023
 $56.11
Available to order.
Add to View Price
#11 TIRE, FR. (2.75-18) (BS) (NOT AVAILABLE)
44711-383-671
 $55.67
Available to order.
Add to View Price
#11 TIRE, FR. (2.75-18) (NITTO)
44711-383-672
Unavailable
#12 GEAR, SPEEDOMETER
44804-150-003
 $27.16
Available to order.
Add to View Price
#13 WASHER, SPEEDOMETER GEAR
44808-107-720
 $2.57
Available to order.
Add to View Price
#14 SUB-PANEL, FR. BRAKE (NOT AVAILABLE)
45010-383-870
 $95.10
Available to order.
Add to View Price
#15 DUST SEAL, BRAKE CAM
45134-250-000
 $3.09
Available to order.
Add to View Price
#16 INDICATOR, FR. BRAKE
45145-121-710
 $7.53
Available to order.
Add to View Price
#17 ARM, FR. BRAKE (NOT AVAILABLE)
45410-383-880
 $7.06
Available to order.
Add to View Price
#18 SPRING, FR. BRAKE ARM RETURN
45435-121-010
 $6.16
Available to order.
Add to View Price
#19 SPRING, FR. BRAKE ARM
45437-001-000
 $3.80
Available to order.
Add to View Price
#20 NUT, AXLE (12MM)
90305-169-000
 $7.55
Available to order.
Add to View Price
#21 WASHER (12.5MM)
90528-229-000
 $2.31
Available to order.
Add to View Price
#22 OIL SEAL (21X37X7) (ARAI)
90755-229-003
 $6.07
Available to order.
Add to View Price
#22 OIL SEAL (21X37X7) (ARAI)
90755-229-005
Superseded by 90755-229-003
 $6.07
Unavailable
#23 OIL SEAL (47X60X7)
91251-GK4-003
 $10.65
Available to order.
Add to View Price
#23 OIL SEAL (47X60X7) (ARAI)
91251-121-000
Superseded by 91251-GK4-003
 $10.65
Unavailable
#23 OIL SEAL (47X60X7) (ARAI)
91251-121-003
Superseded by 91251-GK4-003
 $10.65
Unavailable
#23 OIL SEAL (47X60X7)
91251-361-005
 $14.63
Available to order.
Add to View Price
#24 SCREW, OVAL (5X16)
93700-05016-0A
 $0.98
Available to order.
Add to View Price
#25 NUT, FLANGE (6MM)
94050-06000
 $0.60
Available to order.
Add to View Price
#26 PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
 $1.03
Available to order.
Add to View Price
#26 PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
 $1.03
Unavailable
#26 PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
 $1.03
Unavailable
#26 PIN, SPLIT (3.0X45)
94201-30450
 $1.03
Unavailable
#27 JOINT B, BRAKE ARM
95015-32001
 $1.02
Available to order.
Add to View Price
#28 NUT B, BRAKE ROD ADJUSTING
95015-42000
 $2.09
Available to order.
Add to View Price
#29 BOLT, FLANGE (6X28)
95700-06028-00
 $1.81
Unavailable
#29 BOLT, FLANGE (6X28)
95701-06028-00
 $1.81
Available to order.
Add to View Price
#30 BEARING, RADIAL BALL (6301U)
96140-63010
Superseded by 96140-63010-10
 $17.20
Available to order.
Add to View Price
#30 BEARING, RADIAL BALL (6301U)
96140-63010-10
 $17.20
Unavailable
#31 SPOKE SET B (10X171) (INSIDE) (NOT AVAILABLE)
97170-42182-K0
 $1.86
Available to order.
Add to View Price
#32 SPOKE SET B (10X170.5) (OUTSIDE) (NOT AVAILABLE)
97656-42181-K0
 $1.86
Available to order.
Add to View Price
