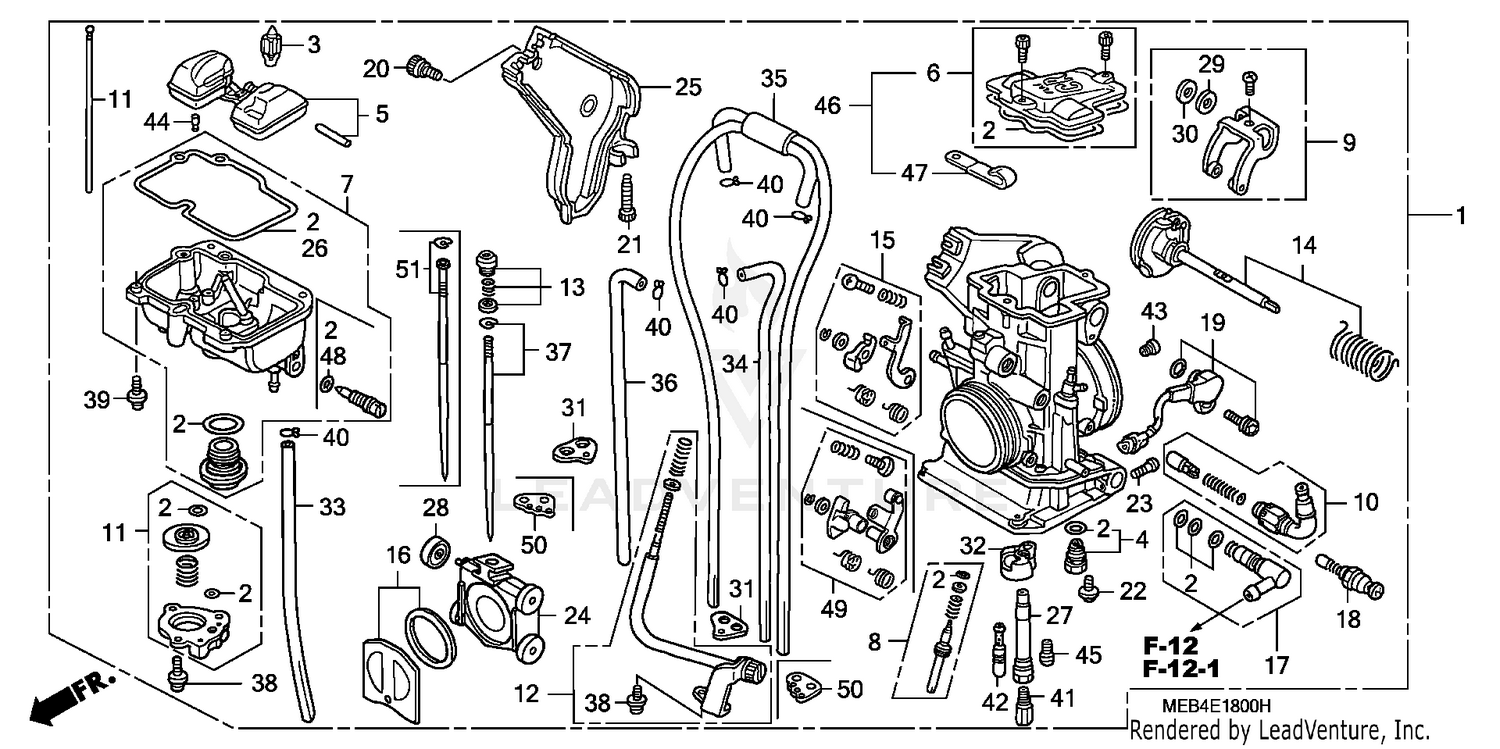

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY. (FCR00F A)
16100-MEN-A02
|
$847.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET SET
16010-MEN-851
|
$30.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE SET, FLOAT
16011-MEN-851
|
$49.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
FLOAT SET
16013-KRN-851
|
$51.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
TOP SET
16014-MEY-A11
|
$53.94 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAMBER SET, FLOAT
16015-MEN-A01
|
$79.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW SET A
16016-KSC-671
|
$34.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM SET, LINK
16018-MEY-A11
|
$18.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
START SET, HOT
16019-MEB-671
|
$33.94 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIAPHRAGM SET, PUMP
16021-MEN-A01
|
$46.41 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW SET B
16028-MEN-A01
|
$47.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW SET, JET NEEDLE
16029-MEY-A11
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHAFT SET, THROTTLE
16032-MEN-A01
|
$94.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE SET, FLOATING
16037-MEB-671
|
$137.01 | ||
|
Available to order. Add to View Price |
|||
|
#17
JOINT SET, FUEL
16038-KRN-671
|
$48.52 | ||
|
Available to order. Add to View Price |
|||
|
#18
VALVE SET, STARTER
16046-MEB-671
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SENSOR ASSY., THROTTLE
16060-MEB-671
|
$86.38 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, COVER
16080-HP1-601
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN
16083-MEB-671
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#24
VALVE, THROTTLE
16112-MEY-A11
|
$292.92 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, THROTTLE
16157-MEN-A01
|
$28.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET, FLOAT CHAMBER
16163-MEB-671
|
$15.23 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, NEEDLE JET
16165-MEN-A01
|
$23.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
ROLLER
16172-MEB-671
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLAIN (PO)
16177-MEB-671
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLAIN (SUS)
16178-MEB-671
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLATE, BUFFER
16185-MEN-671
|
$13.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
TUBE, OVERFLOW
16196-MEN-851
|
$9.14 | ||
|
Available to order. Add to View Price |
|||
|
#34
TUBE, AIR VENT
16197-MEB-671
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#35
TUBE, AIR VENT
16198-MEB-671
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#36
TUBE, AIR VENT
16199-MEB-671
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW-WASHER (4X8)
93892-04008-08
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW-WASHER (4X8)
93892-04008-18
Superseded by 93892-04008-08
|
$1.15 | ||
|
Unavailable |
|||
|
#39
SCREW-WASHER (4X14)
93892-04014-08
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW-WASHER (4X14)
93892-04014-18
Superseded by 93892-04014-08
|
$1.10 | ||
|
Unavailable |
|||
|
#40
CLIP, TUBE (B7)
95002-02079
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#41
JET, MAIN (#182)
99101-357-1820
Superseded by 99113-GHB-1820
|
$10.94 | ||
|
Available to order. Add to View Price |
|||
|
#41
JET, MAIN (#185)
99101-357-1850
Superseded by 99113-GHB-1850
|
$10.94 | ||
|
Available to order. Add to View Price |
|||
|
#41
JET, MAIN (#182)
99113-GHB-1820
|
$10.94 | ||
|
Unavailable |
|||
|
#41
JET, MAIN (#185)
99113-GHB-1850
|
$10.94 | ||
|
Unavailable |
|||
|
#41
JET, MAIN (#168)
99101-357-1680
Superseded by 99113-GHB-1680
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#41
JET, MAIN (#170)
99101-357-1700
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#41
JET, MAIN (#172)
99101-357-1720
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#41
JET, MAIN (#175)
99101-357-1750
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#41
JET, MAIN (#178)
99101-357-1780
Superseded by 99113-GHB-1780
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#41
JET, MAIN (#180)
99101-357-1800
Superseded by 99113-GHB-1800
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#41
JET, MAIN (#168)
99113-GHB-1680
|
$10.91 | ||
|
Unavailable |
|||
|
#41
JET, MAIN (#170)
99113-GHB-1700
Superseded by 99101-357-1700
|
$10.91 | ||
|
Unavailable |
|||
|
#41
JET, MAIN (#172) JET, MAIN (#155)
99113-GHB-1720
Superseded by 99101-357-1720
|
$10.91 | ||
|
Unavailable |
|||
|
#41
JET, MAIN (#178)
99113-GHB-1780
|
$10.91 | ||
|
Unavailable |
|||
|
#41
JET, MAIN (#180)
99113-GHB-1800
|
$10.91 | ||
|
Unavailable |
|||
|
#41
JET, MAIN (#188)
99101-357-1880
Superseded by 99113-GHB-1880
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#41
JET, MAIN (#188)
99113-GHB-1880
|
$10.91 | ||
|
Unavailable |
|||
|
#42
JET, SLOW (#40)
99103-GBF-0400
|
$15.28 | ||
|
Available to order. Add to View Price |
|||
|
#42
JET, SLOW (#45)
99103-GBF-0450
|
$16.26 | ||
|
Available to order. Add to View Price |
|||
|
#42
JET, SLOW (#48)
99103-GBF-0480
|
$16.90 | ||
|
Available to order. Add to View Price |
|||
|
#42
JET, SLOW (#40)
99103-KA3-0400
Superseded by 99103-GBF-0400
|
$15.28 | ||
|
Unavailable |
|||
|
#42
JET, SLOW (#45)
99103-KA3-0450
Superseded by 99103-GBF-0450
|
$16.26 | ||
|
Unavailable |
|||
|
#42
JET, SLOW (#40)
99103-440-0400
Superseded by 99103-GBF-0400
|
$15.28 | ||
|
Unavailable |
|||
|
#42
JET, SLOW (#42)
99103-440-0420
|
$15.28 | ||
|
Available to order. Add to View Price |
|||
|
#42
JET, SLOW (#45)
99103-440-0450
Superseded by 99103-GBF-0450
|
$16.26 | ||
|
Unavailable |
|||
|
#42
JET, SLOW (#48)
99103-440-0480
Superseded by 99103-GBF-0480
|
$16.90 | ||
|
Unavailable |
|||
|
#42
JET, SLOW (#38)
99103-KA3-0380
Superseded by 99103-KBA-0380
|
$15.28 | ||
|
Available to order. Add to View Price |
|||
|
#42
JET, SLOW (#38)
99103-KBA-0380
|
$15.28 | ||
|
Unavailable |
|||
|
#42
JET, SLOW (#38)
99103-440-0380
Superseded by 99103-KBA-0380
|
$15.28 | ||
|
Unavailable |
|||
|
#43
JET, SLOW AIR (#100)
99104-MEB-1000
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, LEAK (#55)
99108-MEB-0550
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, LEAK (#40)
99108-KRN-0400
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, LEAK (#45)
99108-KRN-0450
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, LEAK (#50)
99108-KRN-0500
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, LEAK (#60)
99108-KSE-0600
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#45
JET, BY-STARTER (#72)
99112-MEB-0720
|
$14.21 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLIP
16088-MEN-731
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#48
O-RING (1.3X4.3)
16076-ND5-004
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#49
LEVER SET, PUMP
16033-MEN-A01
|
$19.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
BINDER
16178-MEN-851
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#51
NEEDLE SET, JET (NJYP)
16201-MEN-A01
|
$29.29 | ||
|
Available to order. Add to View Price |
|||
|
#51
NEEDLE SET, JET (NJYQ)
16202-MEN-A01
|
$38.70 | ||
|
Available to order. Add to View Price |
|||
|
#51
NEEDLE SET, JET (NJYR)
16203-MEN-A01
|
$33.44 | ||
|
Available to order. Add to View Price |
|||
|
#51
NEEDLE SET, JET (NJYS)
16204-MEN-A01
|
$33.94 | ||
|
Available to order. Add to View Price |
|||
|
#51
NEEDLE SET, JET (NJYT)
16205-MEN-A01
|
$32.46 | ||
|
Available to order. Add to View Price |
|||
|
#51
NEEDLE SET, JET (NKPP)
16230-MEN-A01
|
$25.72 | ||
|
Available to order. Add to View Price |
|||
|
#51
NEEDLE SET, JET (NKPQ)
16231-MEN-A01
|
$24.18 | ||
|
Available to order. Add to View Price |
|||
|
#51
NEEDLE SET, JET (NKPR)
16232-MEN-A01
|
$23.88 | ||
|
Available to order. Add to View Price |
|||
|
#51
NEEDLE SET, JET (NKPS)
16233-MEN-A01
|
$32.46 | ||
|
Available to order. Add to View Price |
|||
|
#51
NEEDLE SET, JET (NKPT)
16234-MEN-A01
|
$30.80 | ||
|
Available to order. Add to View Price |
|||
