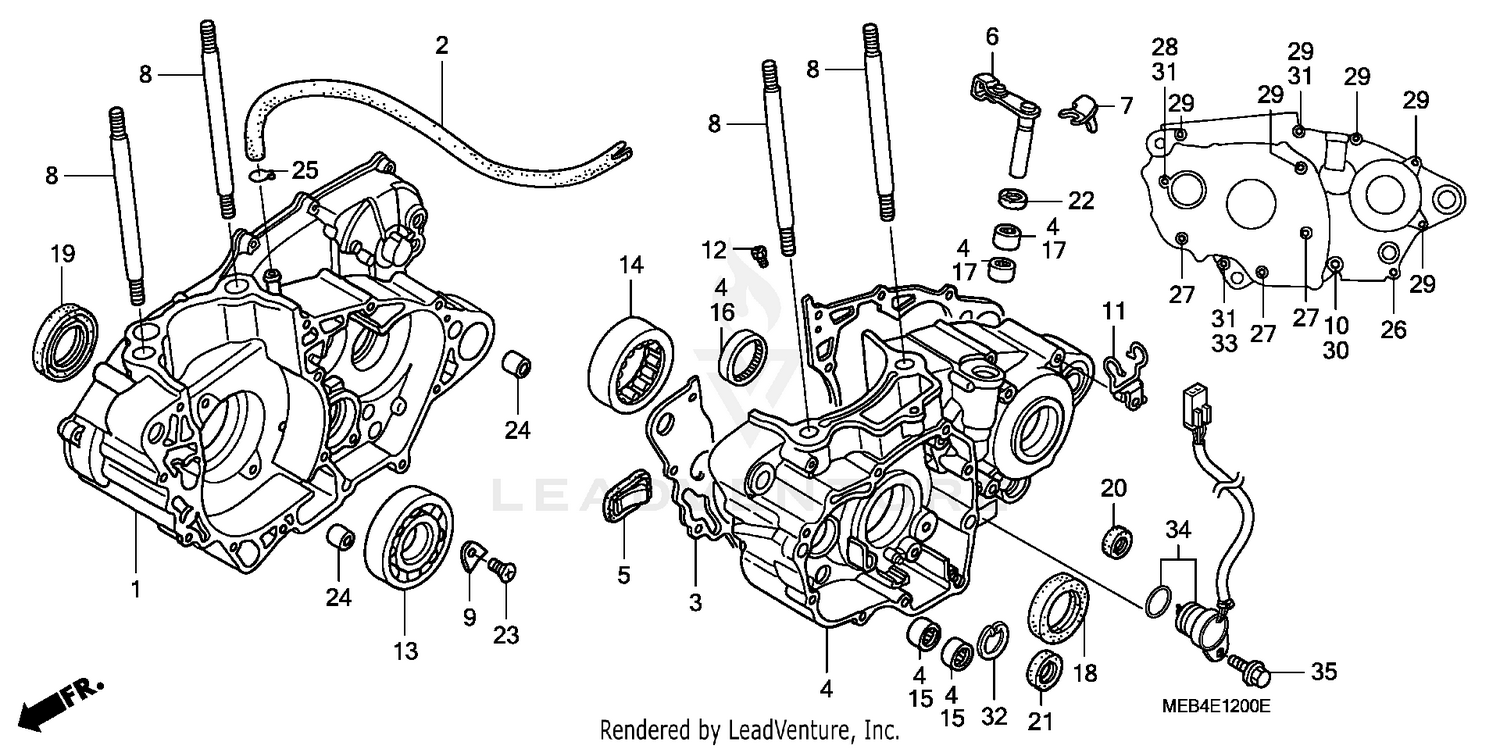

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-MEN-A00
Superseded by 11100-MEN-A10
|
$575.03 | ||
|
Available to order. Add to View Price |
|||
|
#1
CRANKCASE, R.
11100-MEN-A10
|
$575.03 | ||
|
Unavailable |
|||
|
#2
TUBE, BREATHER
11105-MEB-670
|
$14.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CRANKCASE
11191-MEN-850
|
$20.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
CRANKCASE, L.
06110-MEN-506
|
$394.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
CRANKCASE, L.
11200-MEN-A00
Superseded by 06110-MEN-506
|
$394.03 | ||
|
Unavailable |
|||
|
#4
CRANKCASE, L.
11200-MEN-305
Superseded by 06110-MEN-506
|
$394.03 | ||
|
Unavailable |
|||
|
#5
VALVE, REED
18601-MBW-003
|
$19.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER, CLUTCH LIFTER
22810-MEN-670
|
$60.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH LEVER
22813-MEB-670
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD (12X148)
90031-MEB-670
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, BEARING HOLDER
90441-KRN-670
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SEALING (8MM)
90474-333-000
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE, TUBE
90610-MEB-670
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
JET, OIL (#80)
90901-MCF-000
|
$13.01 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, SPECIAL RADIAL BALL (6306)
91001-MEB-671
|
$27.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, SPECIAL ROLLER (NTN)
91002-MEY-671
|
$57.86 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, NEEDLE (9MM) (NTN)
91006-HA0-003
|
$15.43 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, SHELL (33X38X8) (NTN)
91022-KA4-740
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, NEEDLE (12X16X10)
91053-719-005
Superseded by 91101-PZ9-000
|
$10.06 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, NEEDLE (12X16X10)
91101-PZ9-000
|
$10.06 | ||
|
Unavailable |
|||
|
#18
OIL SEAL (38X52X7) (ARAI)
91201-MEB-671
|
$15.23 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL (39X56X7.5) (ARAI)
91202-MEY-671
|
$16.83 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (14X22X5) (NOK)
91203-KA4-771
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (20X33X5) (ARAI)
91203-MEB-671
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL (12X18X3) (ARAI)
91205-MEB-671
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, SPECIAL FLAT (6X17)
90001-MEN-850
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, DOWEL (14X20)
94301-14200
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, TUBE (B10)
95002-02100
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X50)
96001-06050-00
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X65)
96001-06065-00
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X75)
96001-06075-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (8X65)
96300-08065-00
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SEALING (6MM)
90488-425-000
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP, SPECIAL (33MM)
90604-MEB-670
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X65)
96001-06065-00
|
$2.54 | ||
|
Unavailable |
|||
