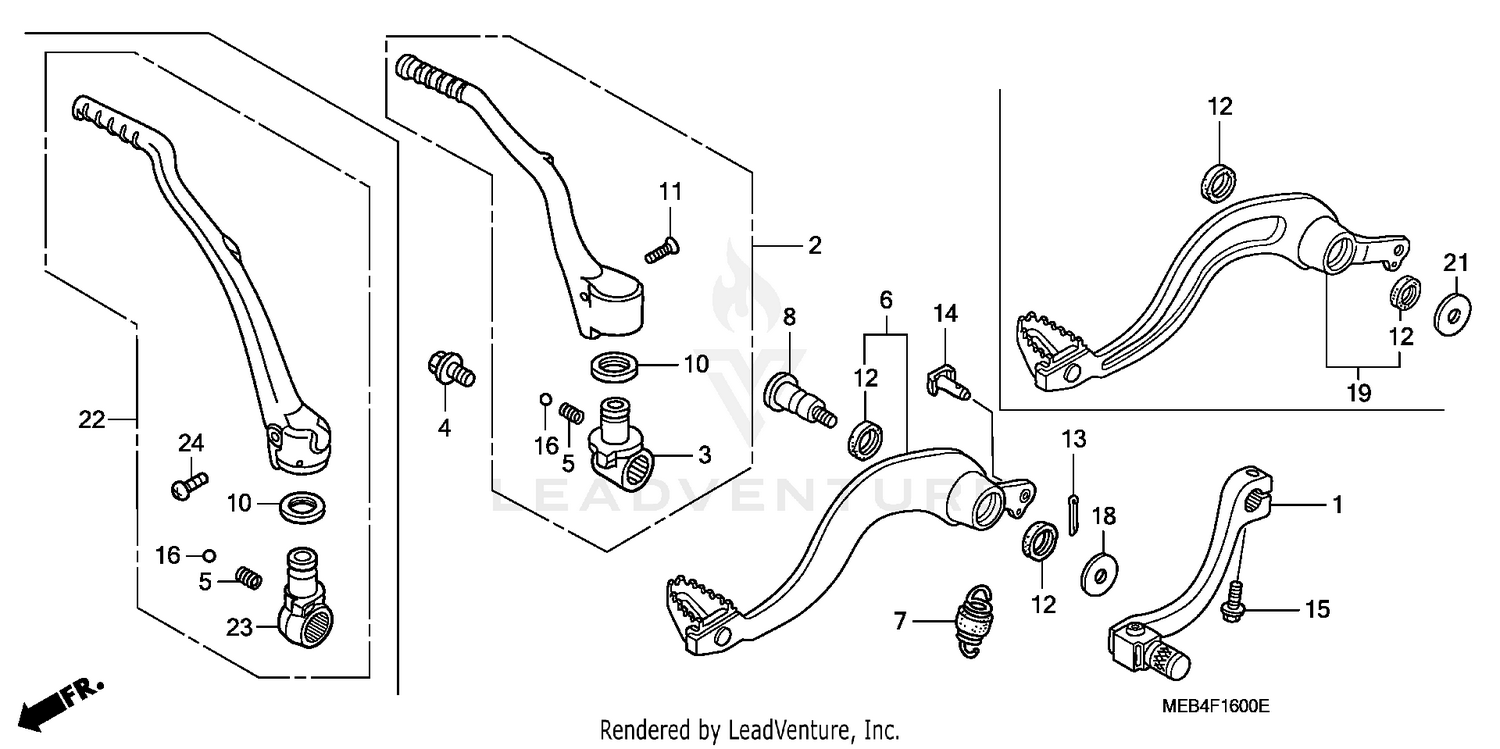

Pedal + Kick Starter Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, CHANGE
24700-MEN-A00
|
$128.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, KICK JOINT
28306-MEN-670
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, KICK STARTER
28333-KK0-000
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING ASSY., RR. BRAKE RETURN
46511-KZ4-J00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT, BRAKE PIVOT
46513-KRN-730
|
$16.46 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUST SEAL (17X20X2.5)
46525-KK0-003
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SEAL (15X20X2.5)
91251-444-000
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, SPLIT (2.0X12)
94201-20120
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN D, JOINT
95015-54000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
PEDAL, RR. BRAKE
46510-MEN-305
Superseded by 46510-MEN-730
|
$121.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
PEDAL, RR. BRAKE
46510-MEN-730
|
$121.58 | ||
|
Unavailable |
|||
|
#21
WASHER (26X10.5)
90512-KRN-730
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
ARM ASSY., KICK STARTER
28300-MEN-850
|
$200.12 | ||
|
Available to order. Add to View Price |
|||
|
#23
JOINT, KICK ARM
28302-MEN-850
|
$87.79 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, KICK ARM
90103-KRN-000
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
