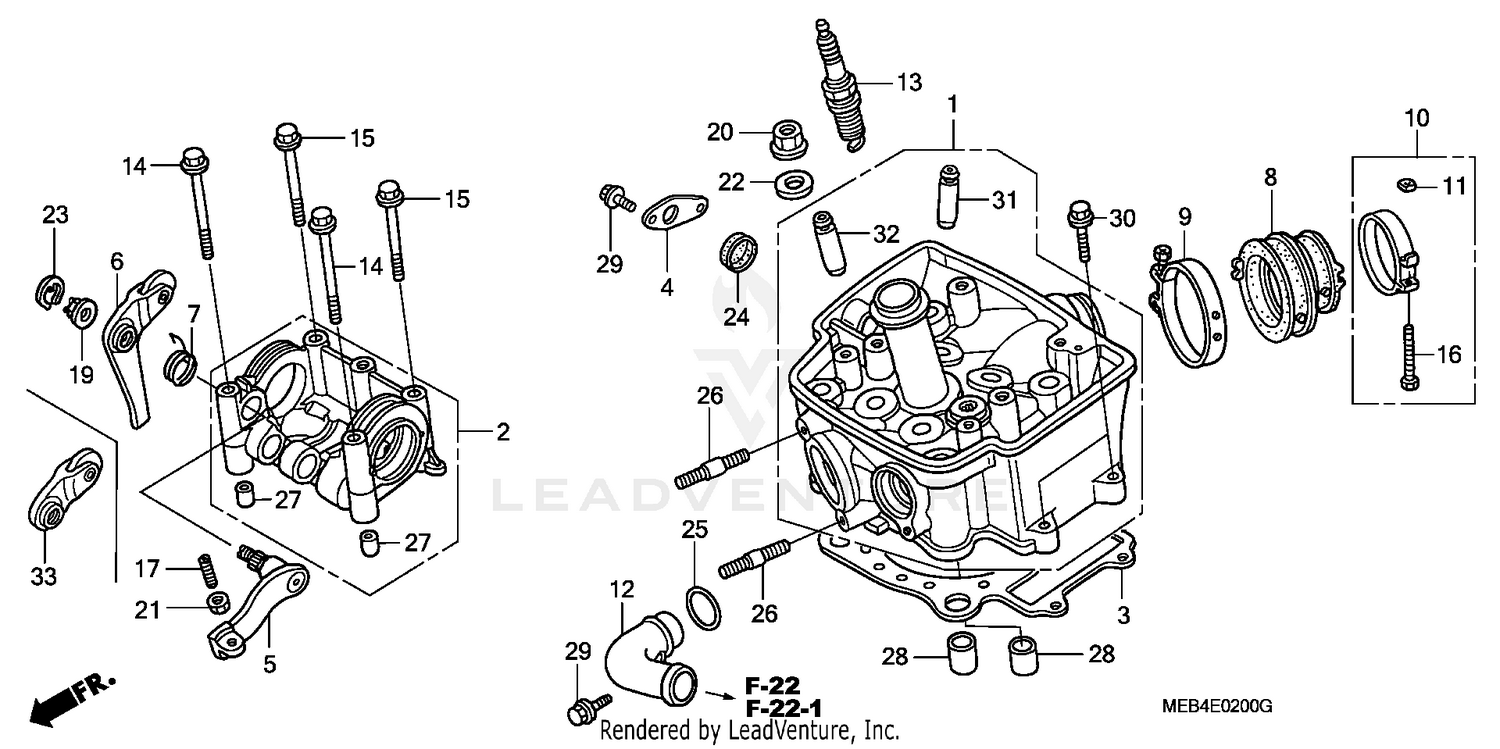

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-MEN-A00
|
$658.50 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER, CAMSHAFT
12240-MEB-771
|
$146.86 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD
12251-MEY-671
|
$58.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
INSULATOR, CARBURETOR
16210-MEN-A00
|
$16.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, INSULATOR
16218-MCA-000
|
$8.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND B, INSULATOR
16218-MCJ-000
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SQUARE (5MM)
16222-MV4-300
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, WATER
19523-KRN-730
|
$19.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (IFR8H11) (NGK)
31918-MEB-671
|
$16.03 | ||
|
Unavailable |
|||
|
#13
SPARK PLUG (VK24PRZ11) (DENSO)
31918-MEB-672
|
$14.23 | ||
|
Unavailable |
|||
|
#13
SPARK PLUG (VK27PRZ11) (DENSO)
31919-MEB-671
Superseded by 31919-MEB-672
|
$14.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (VK27PRZ11) (DENSO)
31919-MEB-672
|
$14.23 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (6X72)
90003-MEB-770
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X65)
90002-MEB-770
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, RECESSED (5X28)
90005-MCJ-000
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (10MM)
90204-634-000
Superseded by 94050-10000
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (10MM)
94030-10000-07
Superseded by 94050-10000
|
$1.43 | ||
|
Unavailable |
|||
|
#20
NUT, FLANGE (10MM)
94050-10000
|
$1.43 | ||
|
Unavailable |
|||
|
#22
WASHER, PLAIN (10MM)
90453-KCY-670
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (19X3) (NOK)
91312-KE7-003
|
$2.86 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, STUD (8X22)
92900-08022-0B
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, DOWEL (8X10)
94301-08100
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, DOWEL (14X20)
94301-14200
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X28)
96001-06028-00
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#31
GUIDE, VALVE (OVER SIZE)
12204-MEB-P00
|
$19.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
GUIDE, EX. VALVE (OVER SIZE)
12205-MEB-P00
|
$18.51 | ||
|
Available to order. Add to View Price |
|||
