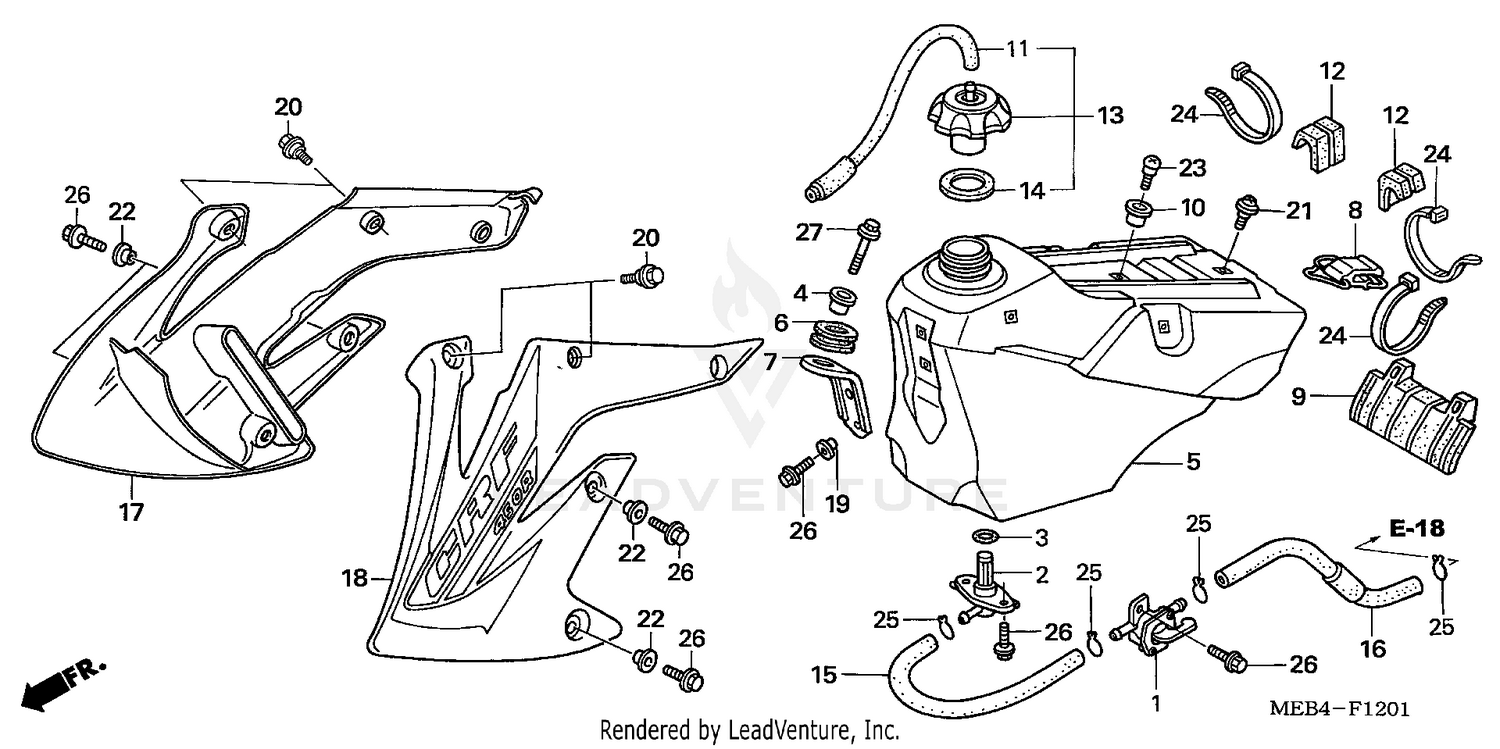

Fuel Tank ('05-) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-MEN-731
|
$42.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT ASSY., FUEL
16955-MEB-671
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING (11.8X3.55)
16997-467-000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, TANK SETTING
17509-KZ3-B00
|
$10.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
TANK, FUEL
17510-MEN-730
|
$513.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, FR. TANK MOUNTING
17514-MEB-670
|
$4.34 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, FR. TANK
17515-MEN-730
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, RR. TANK
17516-MEN-730
|
$13.01 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, TANK MOUNTING
17517-MEN-730
|
$27.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, FR. SEAT
17518-KZ4-710
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE, FUEL CAP BREATHER
17521-MEN-730
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, TANK SIDE MOUNTING
17522-MEN-730
|
$7.92 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP ASSY., FUEL TANK
17620-MEN-730
|
$42.94 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, FUEL CAP
17624-KT1-780
Superseded by 17624-KT1-781
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE, FUEL
17681-MEN-730
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE B, FUEL
17682-MEN-850
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHROUD SET, R. RADIATOR (TYPE1) (WL)
19071-MEN-A00ZA
|
$85.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHROUD SET, L. RADIATOR (TYPE1) (WL)
19072-MEN-A00ZA
|
$97.89 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
84706-415-000
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SPECIAL (5X9)
90101-KRN-730
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW (5X12)
90105-MEN-730
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR A
90501-KZ4-J20
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, SPECIAL (5MM)
91422-MT8-770
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#24
TY-RAP, CABLE
91560-MS8-600
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, TUBE (B12)
95002-02120
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X30)
96001-06030-00
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
