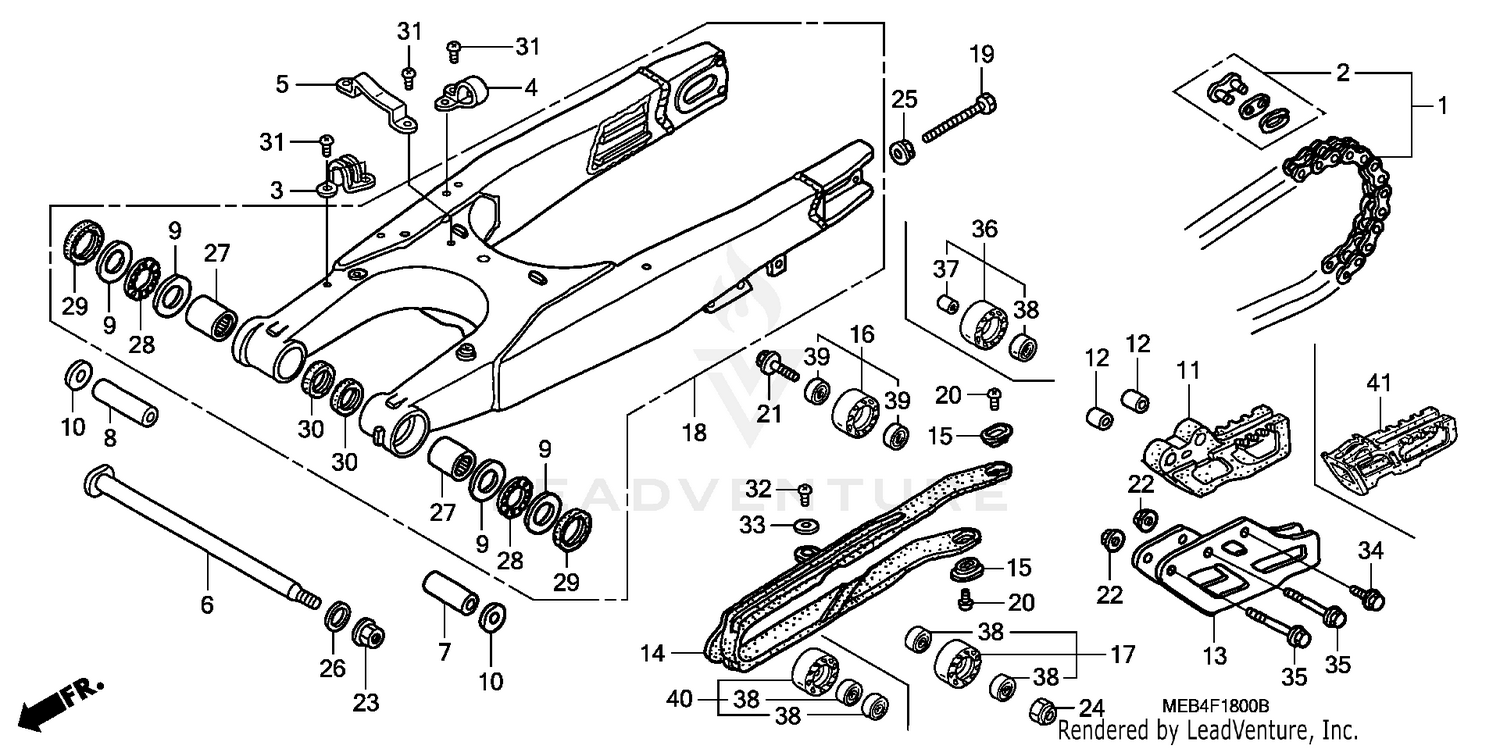

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, DRIVE (DID520DMA4-114RB) (DAIDO) (STANDARD LINK 114L)
40530-KZ3-J31
Superseded by 40530-KRN-A31
|
$153.76 | ||
|
Available to order. Add to View Price |
|||
|
#1
CHAIN, DRIVE (DID520DMA4-120RB) (DAIDO) (STANDARD LINK 114L)
40540-MEN-003
Superseded by 40540-KRN-A31
|
$237.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER LINK (DAIDO)
40531-KZ4-J31
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, BRAKE HOSE
43468-MCJ-000
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, RR. BRAKE HOSE
43468-MEB-000
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, BRAKE HOSE
43469-MEB-000
|
$5.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, SWINGARM PIVOT
52101-KZ4-J40
|
$29.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, SWINGARM (46MM)
52141-MEN-710
|
$24.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, SWINGARM SIDE (54MM)
52142-KZ4-J40
|
$19.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SWINGARM SIDE
52143-KZ3-860
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SWINGARM PIVOT SIDE
52143-KZ4-J40
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, CHAIN GUIDE
52147-MEN-J00
|
$54.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
SLIDER, CHAIN
52170-KRN-710
|
$65.92 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, CHAIN SLIDER
52171-KR6-000
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#18
SWINGARM SUB-ASSY., RR.
52200-MEN-J00
|
$805.63 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEX. (8X47.5)
90105-MEN-000
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (5X8)
90115-KV3-700
|
$2.86 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (8X32)
90124-MEB-770
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, U (6MM)
90301-473-003
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, U HEX. (14MM)
90305-KZ3-B01
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, U (6MM)
90301-473-003
|
$4.89 | ||
|
Unavailable |
|||
|
#25
NUT, HEX. (8MM)
90309-357-000
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (26X14X2.8)
90501-GAH-000
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (26X14X2.8)
90501-GBL-730
Superseded by 90501-GAH-000
|
$7.97 | ||
|
Unavailable |
|||
|
#27
BEARING, NEEDLE (THOMPSON)
91071-MJ0-003
Superseded by 91071-MJ0-004
|
$42.70 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, NEEDLE (THOMPSON)
91071-MJ0-004
|
$42.70 | ||
|
Unavailable |
|||
|
#28
BEARING, NEEDLE THRUST
91072-KZ3-861
|
$15.59 | ||
|
Available to order. Add to View Price |
|||
|
#29
DUST SEAL (30X37X4)
91253-KZ3-861
|
$10.06 | ||
|
Available to order. Add to View Price |
|||
|
#30
DUST SEAL (22X29X4) (ARAI)
91283-ML7-003
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN (5X8)
93500-05008-0A
|
$0.86 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN (5X8)
93500-05008-0G
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLAIN (5MM)
94103-05700
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X45)
96001-06045-00
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#36
ROLLER, CHAIN (42MM)
52175-MEN-000
|
$38.92 | ||
|
Available to order. Add to View Price |
|||
|
#37
COLLAR, CHAIN TENSIONER
52160-MEN-000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, RADIAL BALL (608UU)
91011-GCT-003
|
$21.85 | ||
|
Available to order. Add to View Price |
|||
|
#40
ROLLER, CHAIN (LOWER)
52176-MEN-710
|
$41.80 | ||
|
Available to order. Add to View Price |
|||
|
#41
GUIDE, CHAIN
52146-MEN-J00
|
$40.12 | ||
|
Available to order. Add to View Price |
|||
