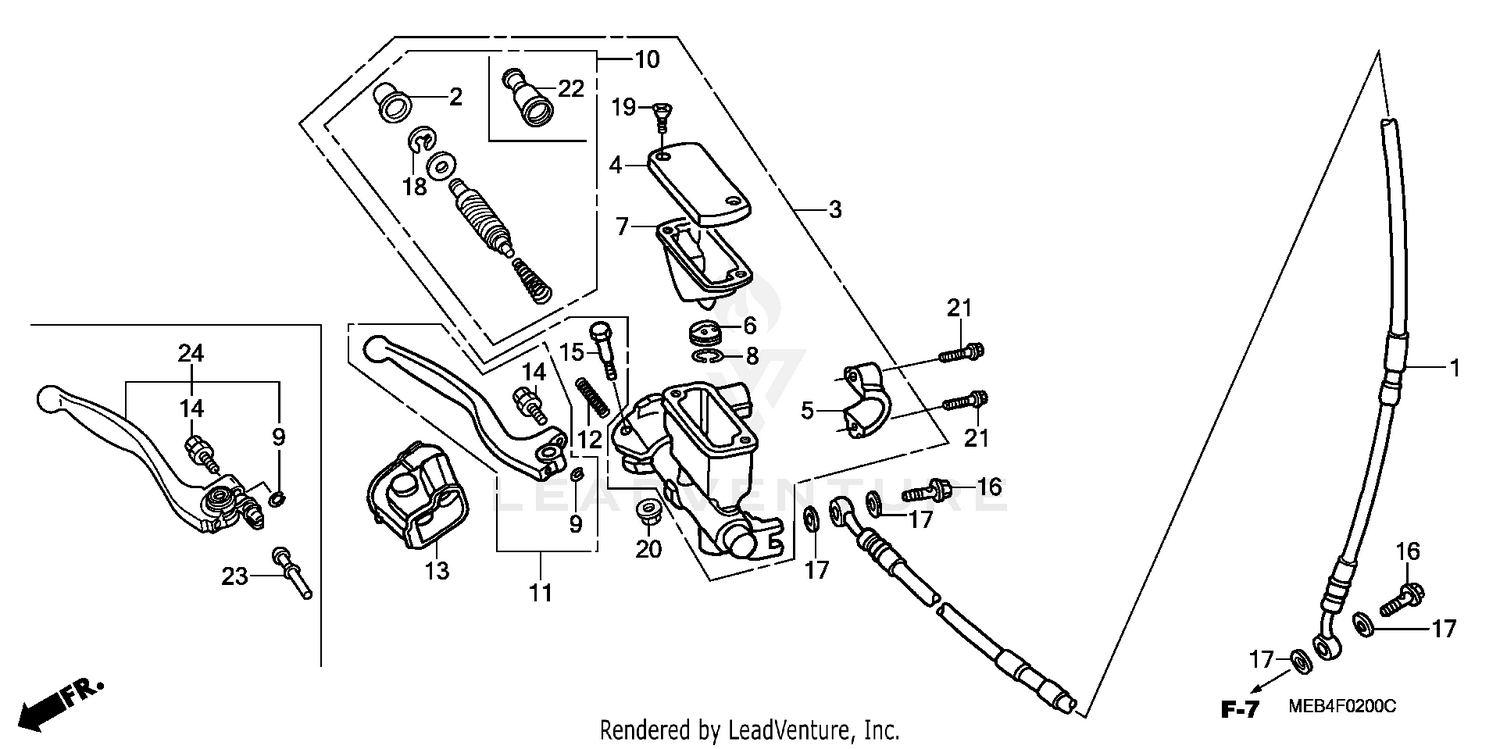

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, FR. BRAKE
45125-MEN-003
|
$119.14 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)
45510-MEN-J01
Superseded by 45510-KRN-A91
|
$231.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)
45510-MEN-305
Superseded by 45510-KRN-A91
|
$231.68 | ||
|
Unavailable |
|||
|
#4
CAP, MASTER CYLINDER
45513-KCE-671
|
$26.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, MASTER CYLINDER
45517-GW0-751
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEPARATOR
45518-MEN-J01
|
$7.86 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIAPHRAGM
45520-KA3-731
|
$15.72 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING
45523-KA3-731
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING
45523-MEB-003
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON SET, MASTER CYLINDER
45530-MEN-J01
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, BRAKE LEVER
53174-KN5-006
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, R. HANDLE LEVER
53176-MEN-J01
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT SET, ADJUSTING
90111-MEB-003
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HANDLE LEVER
90114-MEN-J01
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, OIL (10X22)
90145-MS9-612
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
90651-MA5-671
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.90 | ||
|
Unavailable |
|||
|
#20
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOOT
45504-MEN-J01
|
$10.06 | ||
|
Available to order. Add to View Price |
|||
|
#23
ROD, PUSH
45525-MEN-J01
|
$9.28 | ||
|
Available to order. Add to View Price |
|||
|
#24
LEVER, R. HANDLEBAR
53171-MEN-J01
|
$44.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
LEVER, R. HANDLEBAR
53171-MEN-305
Superseded by 53171-MEN-J01
|
$44.05 | ||
|
Unavailable |
|||
