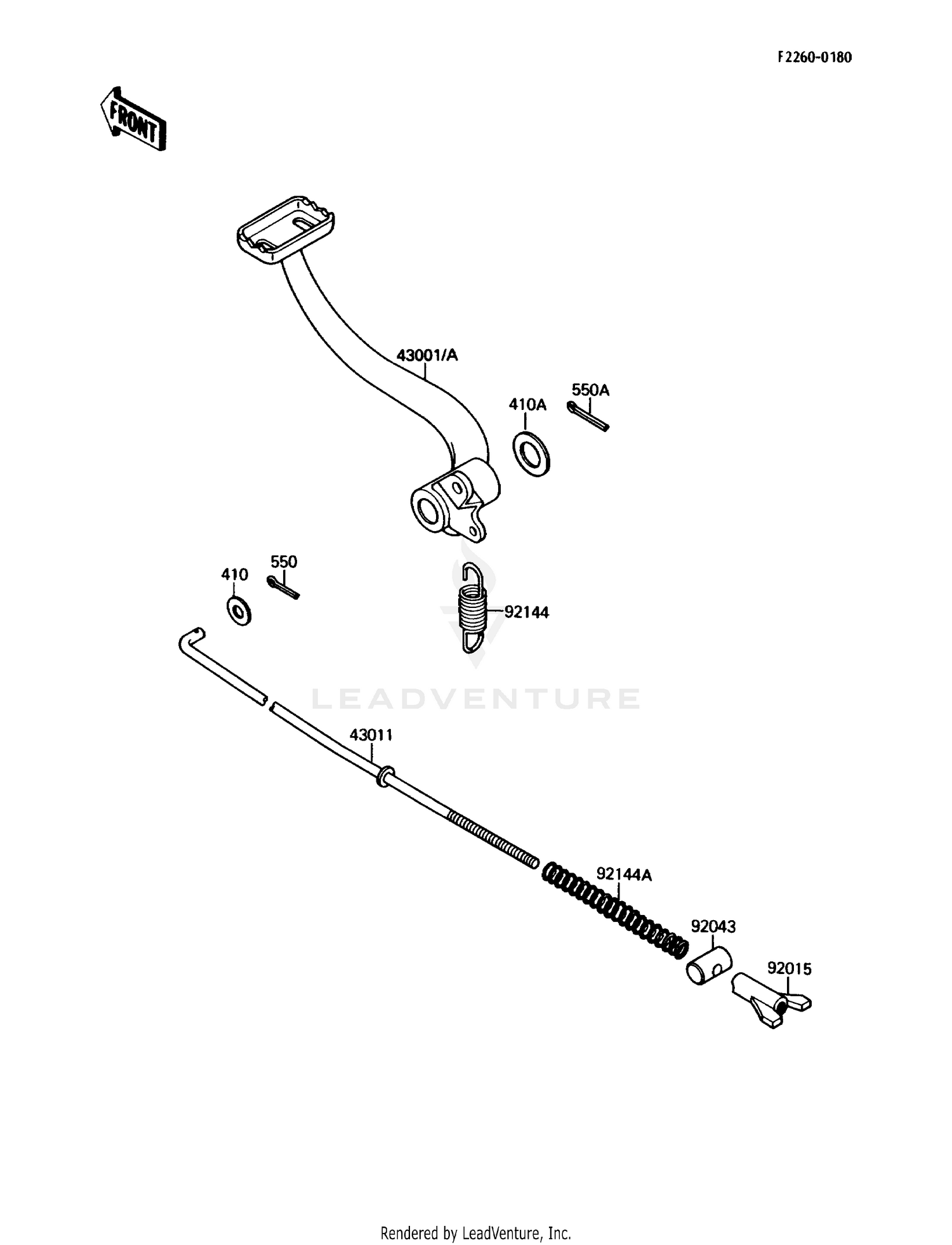

1988 Kawasaki KLF110BW MOJAVE 110E BRAKE PEDAL OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#43001A
LEVER-BRAKE,PEDAL
43001-1248
|
$26.25 | ||
|
Available to order. Add to View Price |
|||
|
#43011
ROD-BRAKE
43011-1132
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,WING,6MM
92015-1497
|
$12.38 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,12X20
92043-1280
|
$10.09 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,BRAKE PEDAL RE
92144-1053
|
$9.19 | ||
|
Available to order. Add to View Price |
|||
|
#92144A
SPRING,BRAKE ROD
92144-1122
Superseded by 43012-001
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#410A
WASHER-PLAIN-SMALL,14MM
410B1400
Superseded by 410AA1400
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#550A
PIN-COTTER,2.5X25
550D2525
Superseded by 550AA2525
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
