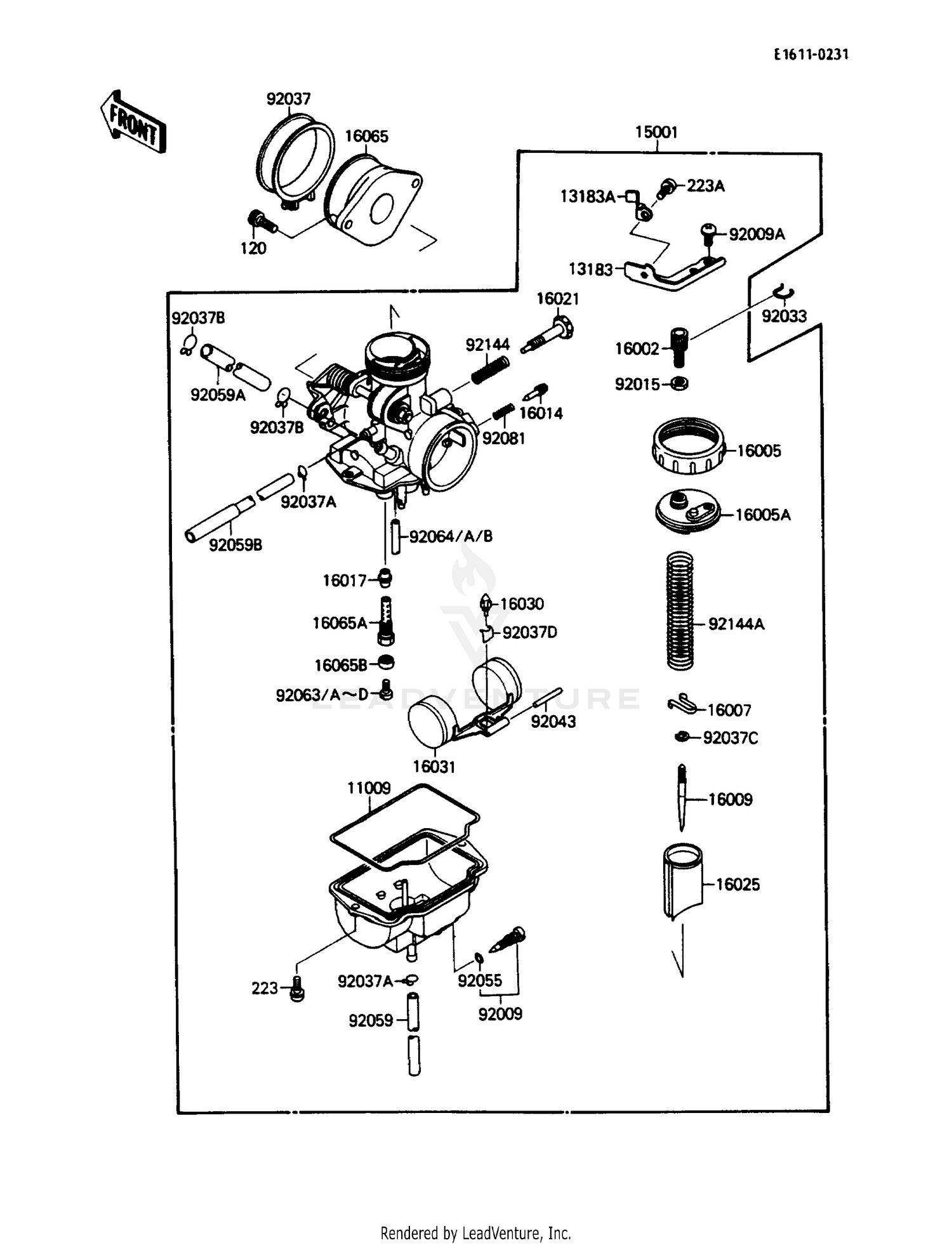

1988 Kawasaki KLF110BW MOJAVE 110E CARBURETOR OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FLOAT CHAMBER
11009-1375
|
$17.46 | ||
|
Available to order. Add to View Price |
|||
|
#13183
PLATE
13183-1088
|
$37.24 | ||
|
Available to order. Add to View Price |
|||
|
#13183A
PLATE
13183-1089
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#15001
CARBURETOR-ASSY
15001-1272
|
$342.91 | ||
|
Available to order. Add to View Price |
|||
|
#16002
ADJUSTER-CABLE
16002-1056
|
$22.47 | ||
|
Available to order. Add to View Price |
|||
|
#16005
TOP-CHAMBER,MIXING
16005-1053
|
$23.33 | ||
|
Available to order. Add to View Price |
|||
|
#16005A
TOP-CHAMBER
16005-1062
|
$27.68 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SEAT-SPRING
16007-1103
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET,N17B
16009-1286
|
$33.06 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1051
|
$15.97 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE
16017-1211
|
$42.79 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1119
|
$20.52 | ||
|
Available to order. Add to View Price |
|||
|
#16025
VALVE-THROTTLE,CA 3.0
16025-1135
|
$61.70 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1052
|
$47.75 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1053
|
$56.00 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1067
|
$83.95 | ||
|
Available to order. Add to View Price |
|||
|
#16065A
HOLDER-CARBURETOR,NEE
16065-1105
|
$25.78 | ||
|
Available to order. Add to View Price |
|||
|
#16065B
HOLDER-CARBURETOR,JET
16065-1106
|
$13.21 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,DRAIN,M6X1.0
92009-1095
Superseded by 92009-1434
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,5X10
92009-1365
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CABLE ADJUST LOCK
92015-1574
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92036-018
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,CONNECTOR
92037-1127
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-1142
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,TUBE
92037-1194
Superseded by 92037-1682
|
$5.73 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP,JET NEEDLE
92037-1401
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#92037D
CLAMP,FLOAT VALVE
92037-1476
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,FLOAT
92043-1209
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1053
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#92059
HOSE,FUEL OVERFLOW
92059-1046
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,5.3X10.5X330
92059-1791
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,6.5X9.5X285
92059-1792
|
$13.48 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN,#92
92063-1321
|
$13.86 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,#82
92063-1325
|
$16.29 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,#85
92063-1326
|
$14.48 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#90
92063-1327
|
$16.30 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,#88
92063-1328
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT
92064-1102
|
$34.74 | ||
|
Available to order. Add to View Price |
|||
|
#92064A
JET-PILOT,#32
92064-1126
|
$34.74 | ||
|
Available to order. Add to View Price |
|||
|
#92064B
JET-PILOT,#38
92064-1127
|
$34.74 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,PILOT AIR SCRE
92081-1631
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,THROTTLE STOP
92144-1116
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92144A
SPRING,THROTTLE VALVE
92144-1128
|
$34.79 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,6X14
120P0614
Superseded by 120CA0614
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS
223B0412
Superseded by 223AA0412
|
$4.28 | ||
|
Available to order. Add to View Price |
|||
|
#223A
SCREW-PAN-WS-CROS
223D0410
Superseded by 223AA0410
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
