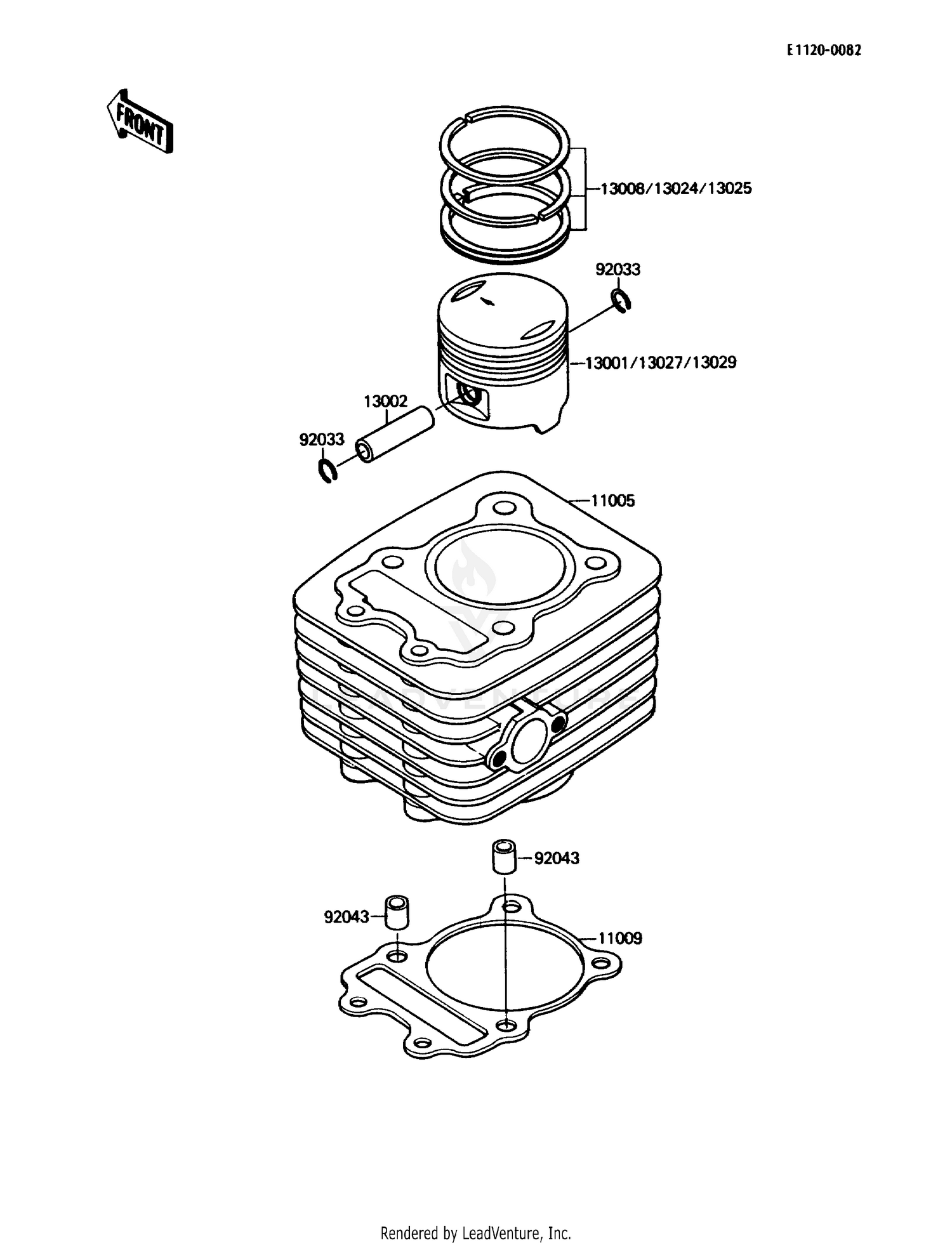

1988 Kawasaki KLF110BW MOJAVE 110E CYLINDER/PISTON(S) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11005
CYLINDER-ENGINE
11005-1454
|
$367.38 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,CYLINDER BASE
11009-1431
Superseded by 11060-1506
|
$8.41 | ||
|
Available to order. Add to View Price |
|||
|
#13001
PISTON-ENGINE,STD
13001-1223
|
$85.83 | ||
|
Available to order. Add to View Price |
|||
|
#13002
PIN-PISTON
13002-1061
|
$16.29 | ||
|
Available to order. Add to View Price |
|||
|
#13008
RING-SET-PISTON,STD
13008-1062
|
$65.72 | ||
|
Available to order. Add to View Price |
|||
|
#13024
RING-SET PISTON LL,0/
13024-1011
|
$42.25 | ||
|
Available to order. Add to View Price |
|||
|
#13025
RING-SET PISTON L,0/S
13025-1011
|
$62.00 | ||
|
Available to order. Add to View Price |
|||
|
#13027
PISTON-ENGINE LL
13027-1057
|
$74.69 | ||
|
Available to order. Add to View Price |
|||
|
#13029
PISTON-ENGINE L
13029-1060
|
$95.94 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1072
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8.2X10X14
92043-1264
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
