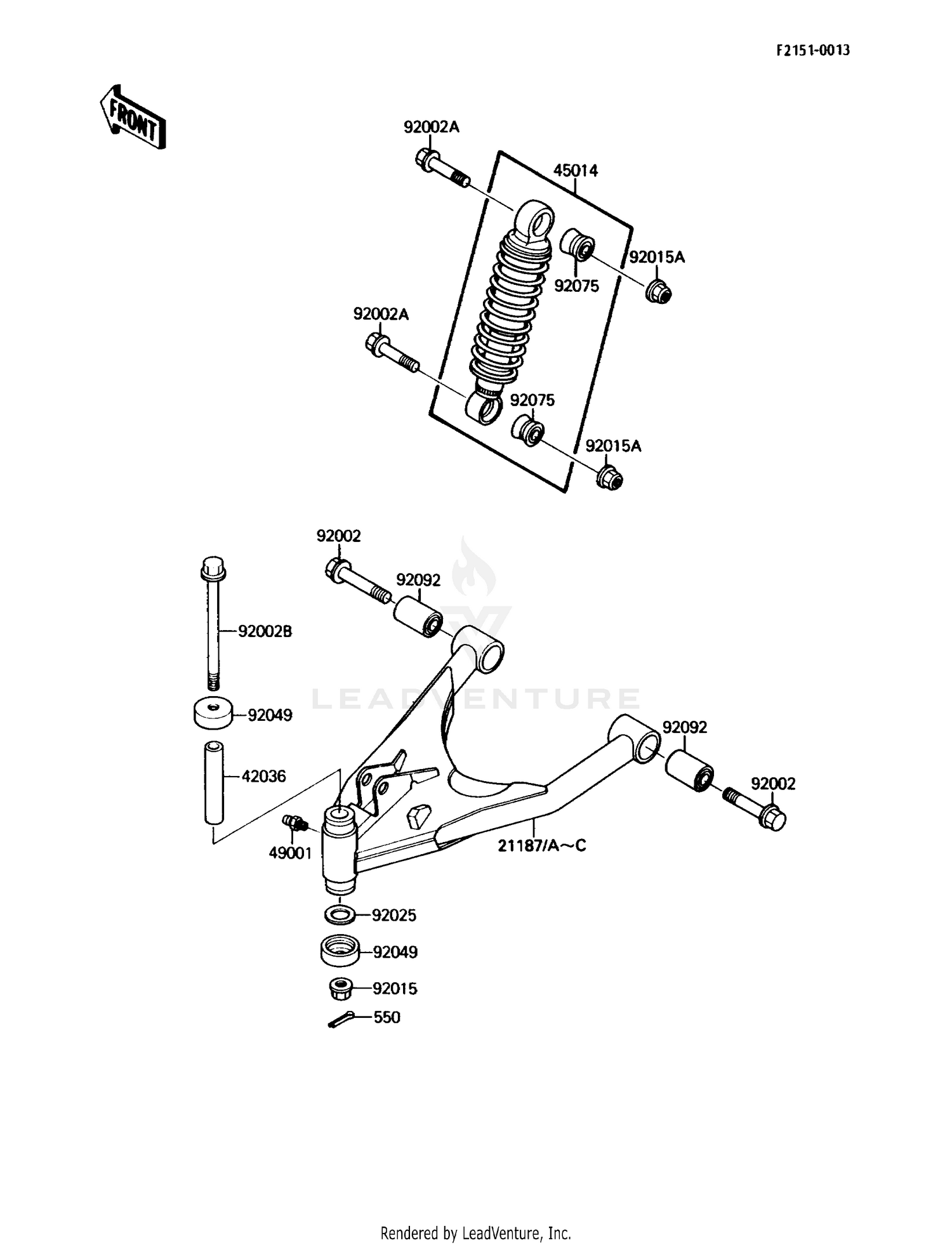

1988 Kawasaki KLF110BW MOJAVE 110E SUSPENSION/SHOCK ABSORBER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#21187B
ARM-ASSY,SUSPENSIN LH
21187-1069
|
$75.29 | ||
|
Available to order. Add to View Price |
|||
|
#21187C
ARM-ASSY,SUSPENSIN RH
21187-1070
|
$80.56 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,10X17X85.6
42036-1190
|
$27.23 | ||
|
Available to order. Add to View Price |
|||
|
#45014
SHOCKABSORBER
45014-1348
|
$133.75 | ||
|
Available to order. Add to View Price |
|||
|
#49001
NIPPLE-GREASE
49001-1051
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,12X60
92002-1456
|
$14.24 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,10X42
92002-1545
Superseded by 92150-1571
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT,FLANGED,10X130
92002-1776
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGED,10MM
92015-1335
Superseded by 92210-0276
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,LOCK,10MM
92015-1597
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92025
SHIM
92025-1678
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,KNUCKLE
92049-1198
|
$18.64 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,SHOCKABSORBER
92075-1897
|
$8.03 | ||
|
Available to order. Add to View Price |
|||
|
#92092
BUSHING-RUBBER
92092-005
|
$13.21 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
