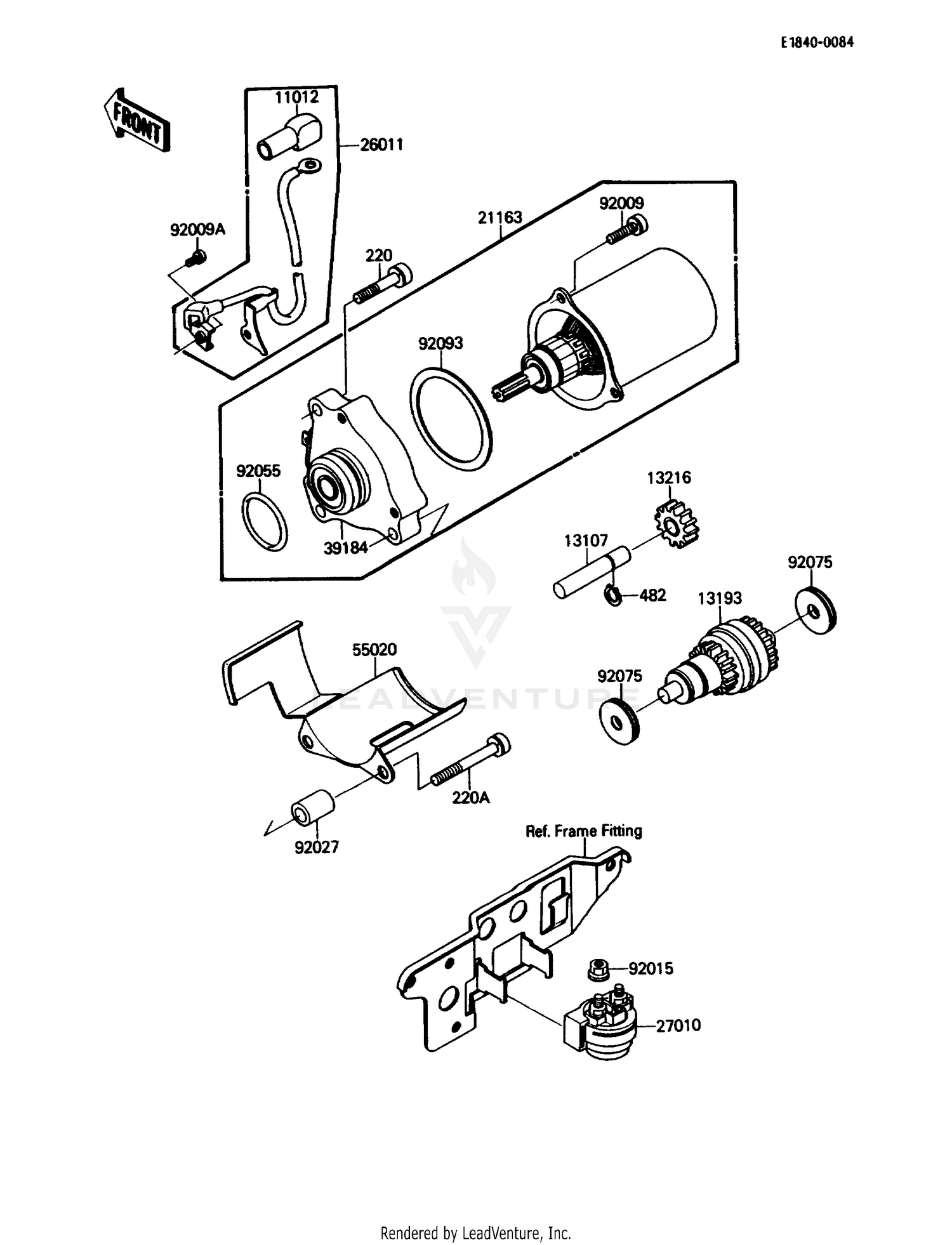

1988 Kawasaki KLF110BW MOJAVE 110E STARTER MOTOR OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,TERMINAL
11012-1354
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#13107
SHAFT,STARTER GEAR
13107-1027
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#13193
CLUTCH-ASSY-ONEWAY
13193-1010
|
$168.81 | ||
|
Available to order. Add to View Price |
|||
|
#13216
GEAR-COMP,26T
13216-1028
|
$26.88 | ||
|
Available to order. Add to View Price |
|||
|
#21163
STARTER-ELECTRIC
21163-1101
|
$491.77 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD,STARTER MOT
26011-1385
|
$26.16 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,STARTER
27010-1075
Superseded by 27010-1314
|
$44.26 | ||
|
Available to order. Add to View Price |
|||
|
#39184
BRACKET,STARTER MOTOR
39184-1011
|
$79.83 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD
55020-1255
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,5X16
92009-1466
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,4X6
92009-1467
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-1461
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1276
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,ONEWAY CLUTCH
92075-1415
|
$14.79 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,STARTER MOTOR
92093-1079
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X25
220X0625
Superseded by 220AD0625
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS
220X0640
Superseded by 220AD0640
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#482
CIRCLIP-TYPE-E,6MM
482J6000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
