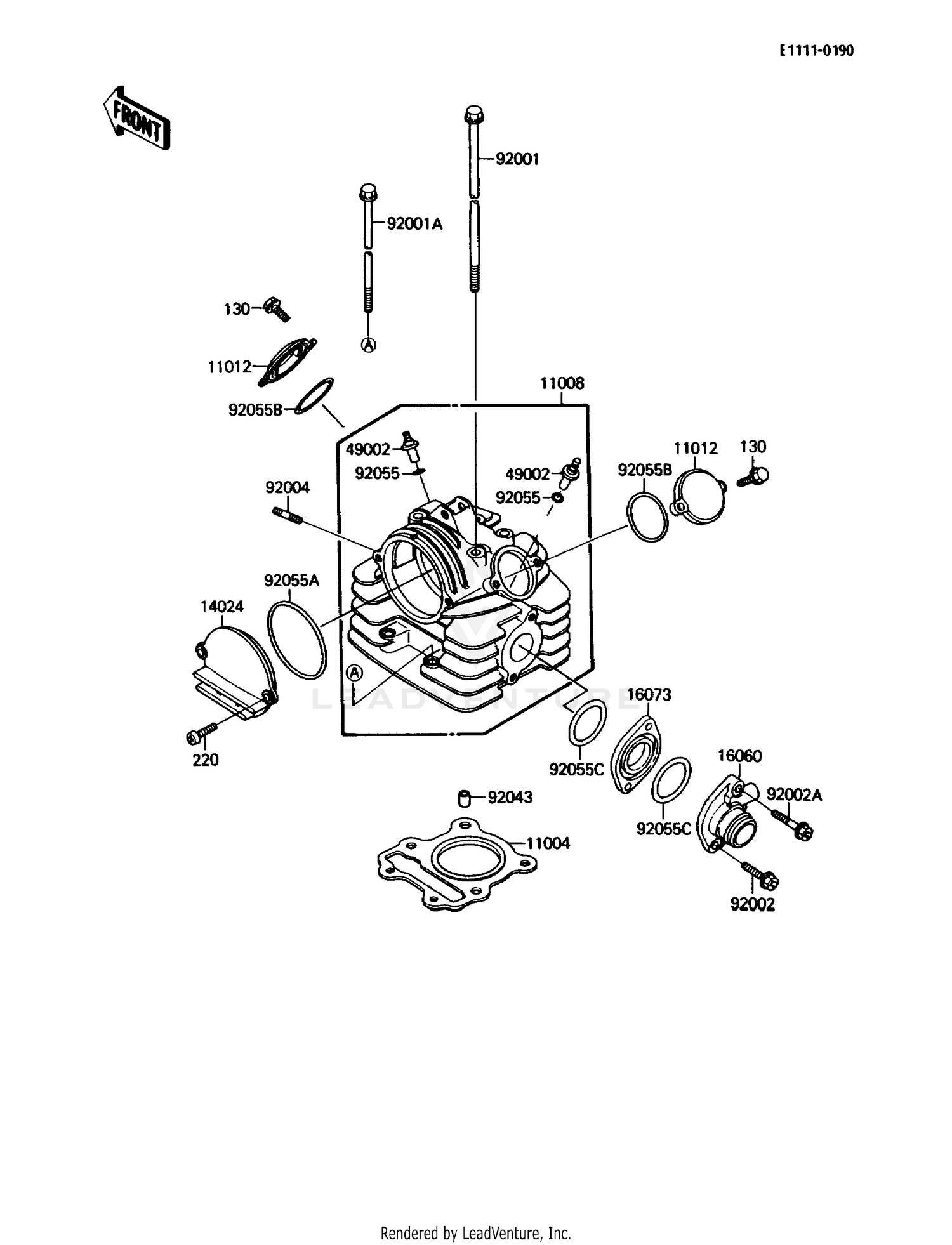

1988 Kawasaki KLF110BW MOJAVE 110E CYLINDER HEAD OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11004
GASKET, HEAD
11004-1163
Superseded by 11004-1293
|
$43.03 | ||
|
Available to order. Add to View Price |
|||
|
#11008
HEAD-COMP-CYLINDER
11008-1158
|
$603.29 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,VALVE ADJUSTING
11012-1560
|
$12.50 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,SPROCKET
14024-1358
|
$33.72 | ||
|
Available to order. Add to View Price |
|||
|
#16060
PIPE-INTAKE
16060-1009
|
$64.24 | ||
|
Available to order. Add to View Price |
|||
|
#16073
INSULATOR,INTAKE PIPE
16073-1016
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#49002
GUIDE-VALVE
49002-1056
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,8X196
92001-1838
|
$11.90 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,6X106
92001-1839
Superseded by 92154-2693
|
$7.68 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,6X25
92002-1235
Superseded by 92153-0514
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,6X30
92002-1295
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,6X18
92004-1127
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8.2X10X14
92043-1264
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,VALVE GUIDE
92055-1177
|
$8.03 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,68.6MM
92055-1178
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,ADJUST CAP
92055-1231
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#92055C
RING-O,30MM
92055-1232
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X20
130Y0620
Superseded by 130BD0620
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220X0620
Superseded by 220AD0620
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
