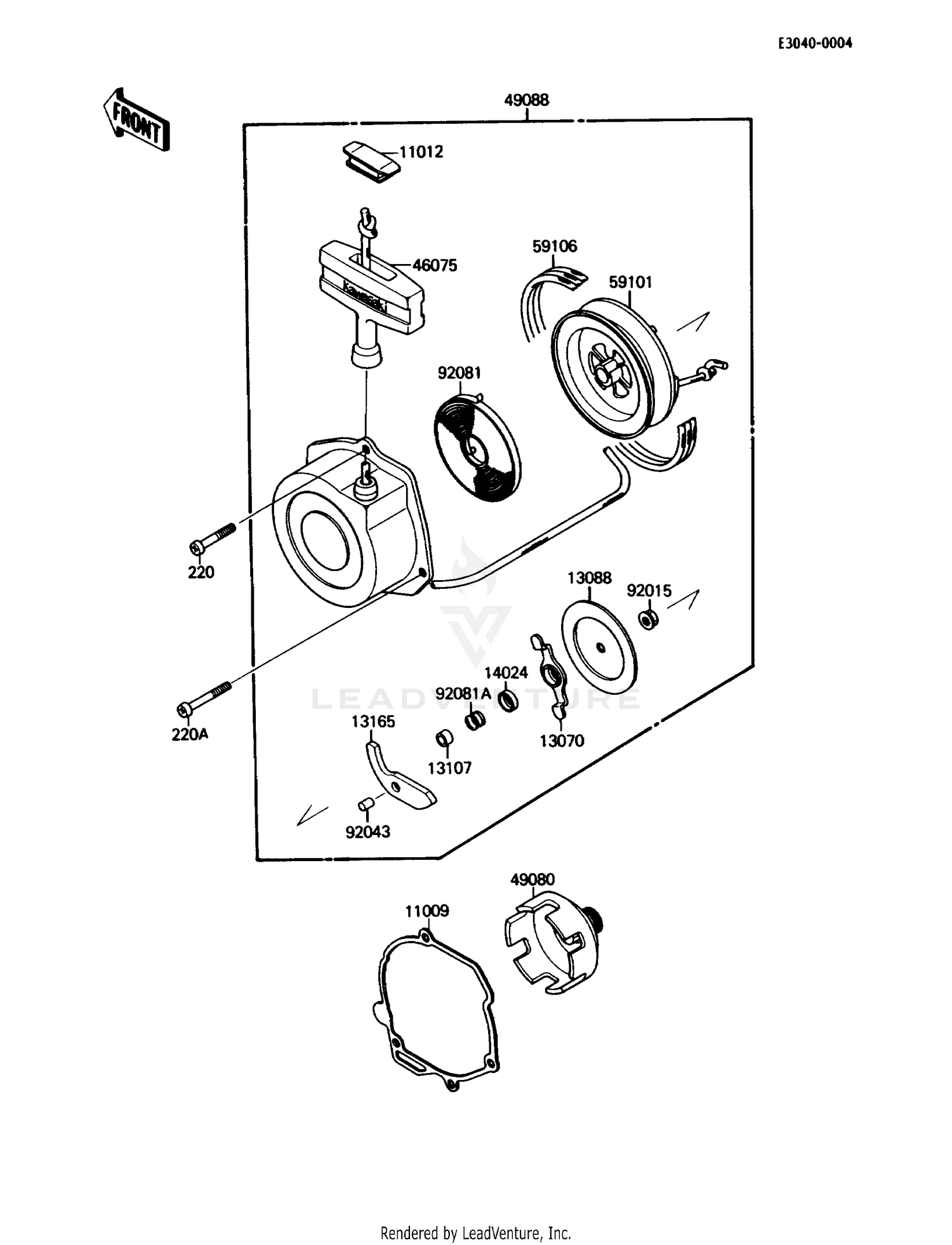

1988 Kawasaki KLF110BW MOJAVE 110E RECOIL STARTER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,RECOIL STARTER
11009-1598
Superseded by 11060-1560
|
$10.16 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,RECOIL GRIP
11012-1420
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE,RECOIL
13070-1123
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION,RECOIL
13088-1067
|
$14.06 | ||
|
Available to order. Add to View Price |
|||
|
#13107
SHAFT,RECOIL
13107-1129
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#13165
PAWL,RECOIL
13165-1110
|
$18.45 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,RECOIL
14025-1966
|
$4.28 | ||
|
Available to order. Add to View Price |
|||
|
#46075
GRIP,RECOIL
46075-1073
|
$17.69 | ||
|
Available to order. Add to View Price |
|||
|
#49080
PULLEY-STARTING
49080-1053
|
$74.69 | ||
|
Available to order. Add to View Price |
|||
|
#49088
STARTER-RECOIL
49088-1053
|
$192.50 | ||
|
Available to order. Add to View Price |
|||
|
#59101
REEL
59101-1108
|
$76.61 | ||
|
Available to order. Add to View Price |
|||
|
#59106
ROPE,RECOIL
59106-1102
|
$33.51 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1464
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,RECOIL
92043-1259
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,RECOIL
92081-1772
|
$66.94 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,PAWL
92081-1773
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220X0650
Superseded by 220AD0650
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS
220X0660
Superseded by 220AD0660
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
