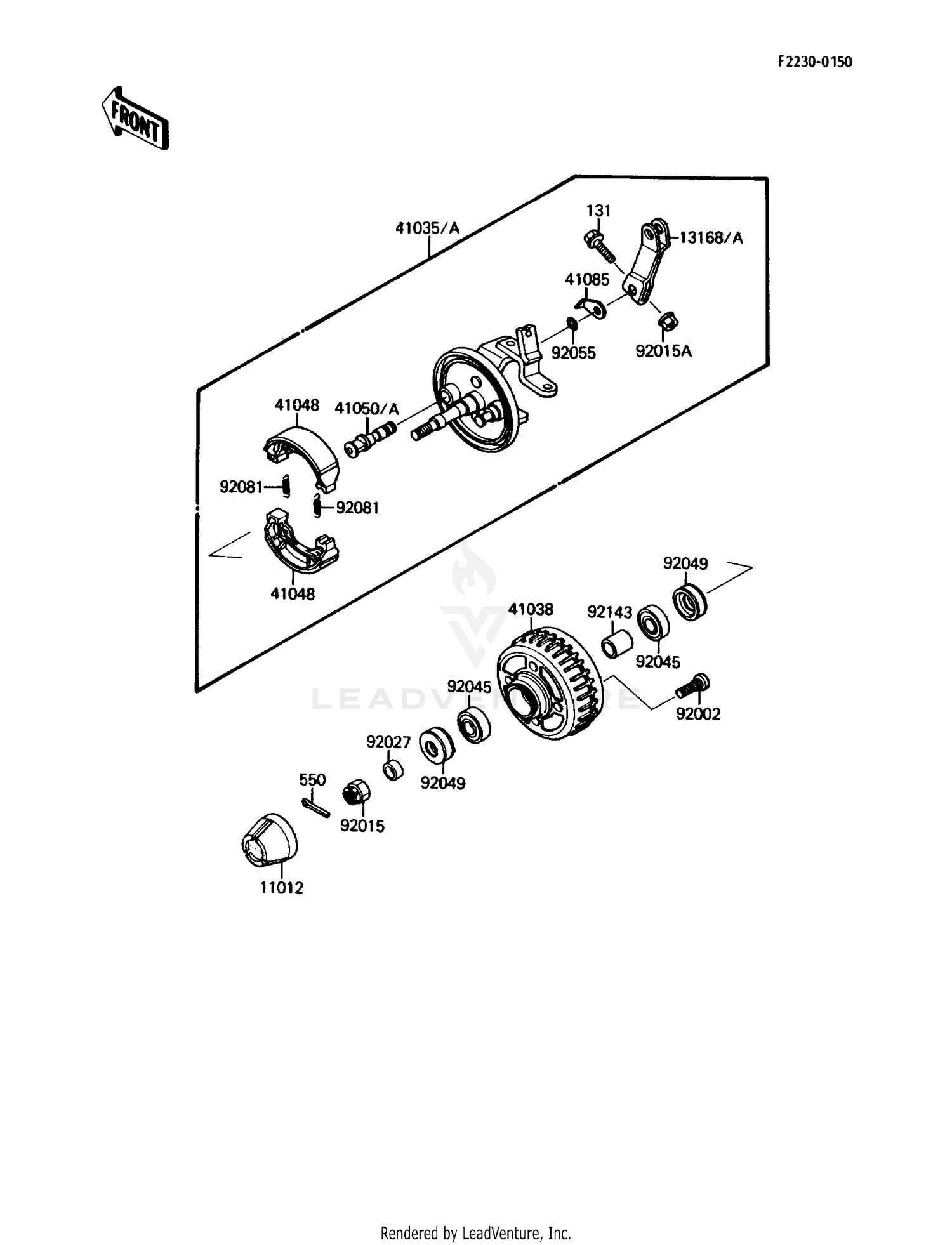

Front Hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,WHEEL
11012-1519
Superseded by 11012-1969
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER,BRAKE CAM,LH
13168-1325
|
$63.82 | ||
|
Available to order. Add to View Price |
|||
|
#13168A
LEVER,BRAKE CAM,RH
13168-1326
|
$63.82 | ||
|
Available to order. Add to View Price |
|||
|
#41035
PANEL-ASSY-BRAKE,FR,L
41035-1215
|
$448.29 | ||
|
Available to order. Add to View Price |
|||
|
#41035A
PANEL-ASSY-BRAKE,FR,R
41035-1216
|
$427.73 | ||
|
Available to order. Add to View Price |
|||
|
#41038
DRUM,FRONT BRAKE
41038-1171
|
$167.58 | ||
|
Available to order. Add to View Price |
|||
|
#41048
SHOE-BRAKE
41048-1052
Superseded by 41048-1085
|
$21.73 | ||
|
Available to order. Add to View Price |
|||
|
#41050
CAM-BRAKE,FR,LH
41050-1069
|
$23.66 | ||
|
Available to order. Add to View Price |
|||
|
#41050A
CAM-BRAKE,FR,RH
41050-1070
|
$34.73 | ||
|
Available to order. Add to View Price |
|||
|
#41085
INDICATOR
41085-1058
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT
92002-1868
Superseded by 92150-1289
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
42045-014
Superseded by 92015-1947
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,6MM,BLACK
92015-1237
Superseded by 92015-1233
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,16.2X22X9
92027-1815
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL
92045-1192
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-1197
|
$20.66 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING,11MM
92055-004
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE SHOE
41049-002
Superseded by 92081-1766
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,17.6X22.2X25
92143-1037
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#131
BOLT-FLANGED
131H0635
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X30
550D4030
Superseded by 550AA4030
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
