1983 Kawasaki KLT200A4 Air Cleaner ('81-'82 Klt200-a1/a2/a3) OEM Parts

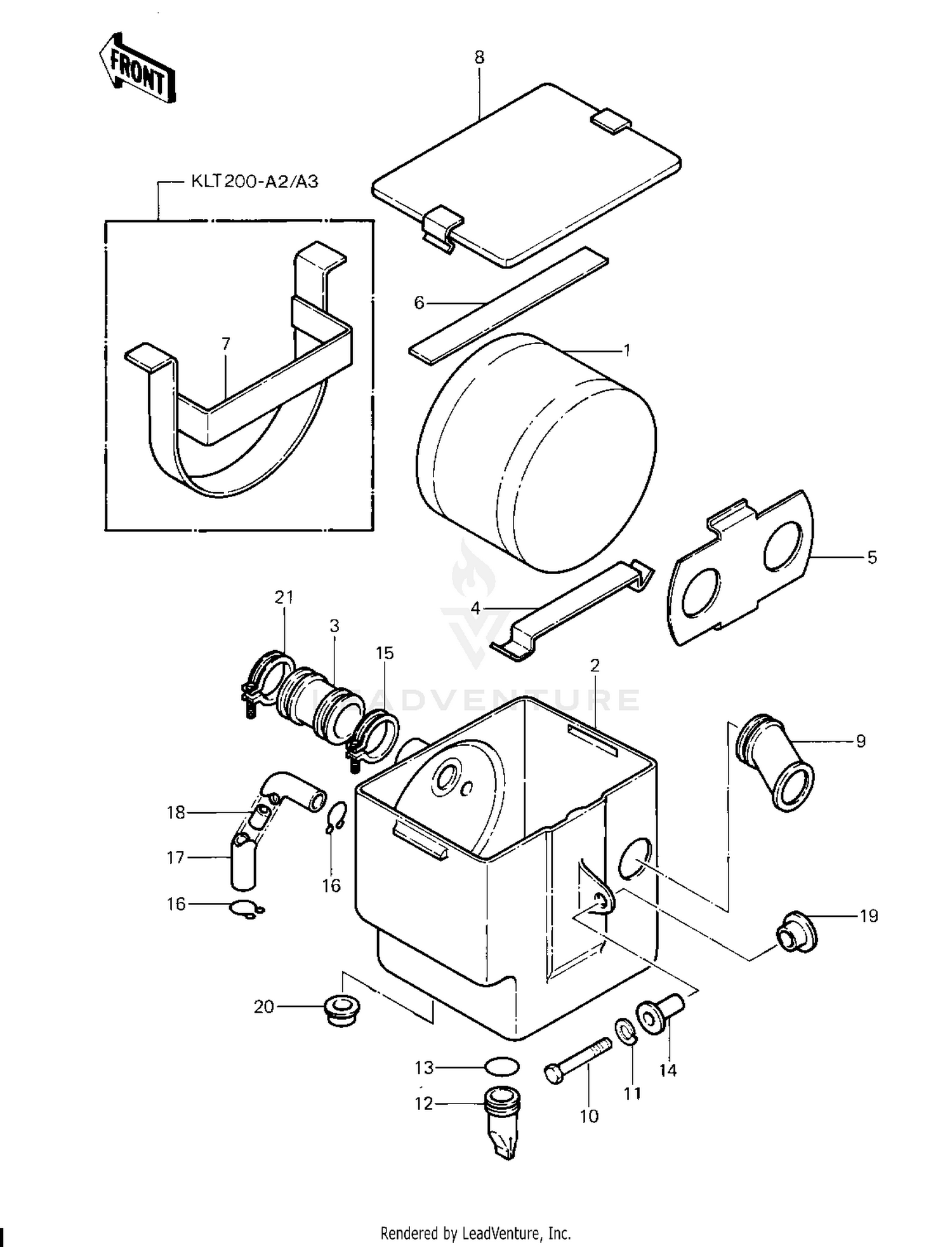

Air Cleaner ('81-'82 Klt200-a1/a2/a3) Diagram

Item	MSRP	Qty
#1 AIR FILTER 11010-4003	$30.65
Available to order. Add to View Price
#2 CASE,AIR FILTER 11011-4003	$48.80
Available to order. Add to View Price
#3 PIPE,INLET 11015-065	$14.95
Available to order. Add to View Price
#3 DUCT,AIR INLET 14073-1067	$11.40
Available to order. Add to View Price
#4 HOLDER,AIR BOX 13091-4005	$5.73
Available to order. Add to View Price
#5 HOLDER 13091-4004	$14.01
Available to order. Add to View Price
#6 PLATE,AIR BOX 32021-4029	$2.75
Available to order. Add to View Price
#7 HOLDER,AIR FILTER 13091-4010	$14.62
Available to order. Add to View Price
#8 COVER 14025-4006	$18.54
Available to order. Add to View Price
#9 DUCT,AIR FILTER 14073-1013	$25.73
Available to order. Add to View Price
#10 BOLT-UPSET 112B0622 Superseded by 112BA0622	$3.62
Available to order. Add to View Price
#11 WASHER-SPRING,6MM 461F0600 Superseded by 461DA0600	$0.69
Available to order. Add to View Price
#12 BOOT 49006-1012	$9.48
Available to order. Add to View Price
#13 O RING,20MM 670B2020	$1.20
Available to order. Add to View Price
#14 COLLAR,L=11.1 92027-194	$5.34
Available to order. Add to View Price
#15 CLAMP,MUFFLER 92037-177	$10.05
Available to order. Add to View Price
#16 CLAMP,TUBE 92037-213	$4.17
Available to order. Add to View Price
#17 TUBE,BREATHER 92059-1154	$10.64
Unavailable
#18 BREATHER VALVE 92062-1002	$4.98
Available to order. Add to View Price
#19 DAMPER 92075-112	$4.17
Available to order. Add to View Price
#20 DAMPER RUBBER,SIG LM 92075-158	$5.30
Available to order. Add to View Price
#21 CLAMP,MUFFLER 92037-177	$10.05
Unavailable
#21 CLAMP-INLET PIPE 92037-061	$17.11
Available to order. Add to View Price
