1983 Kawasaki KLT200A4 Chassis Electrical Equipment ('81-'82 Kl OEM Parts

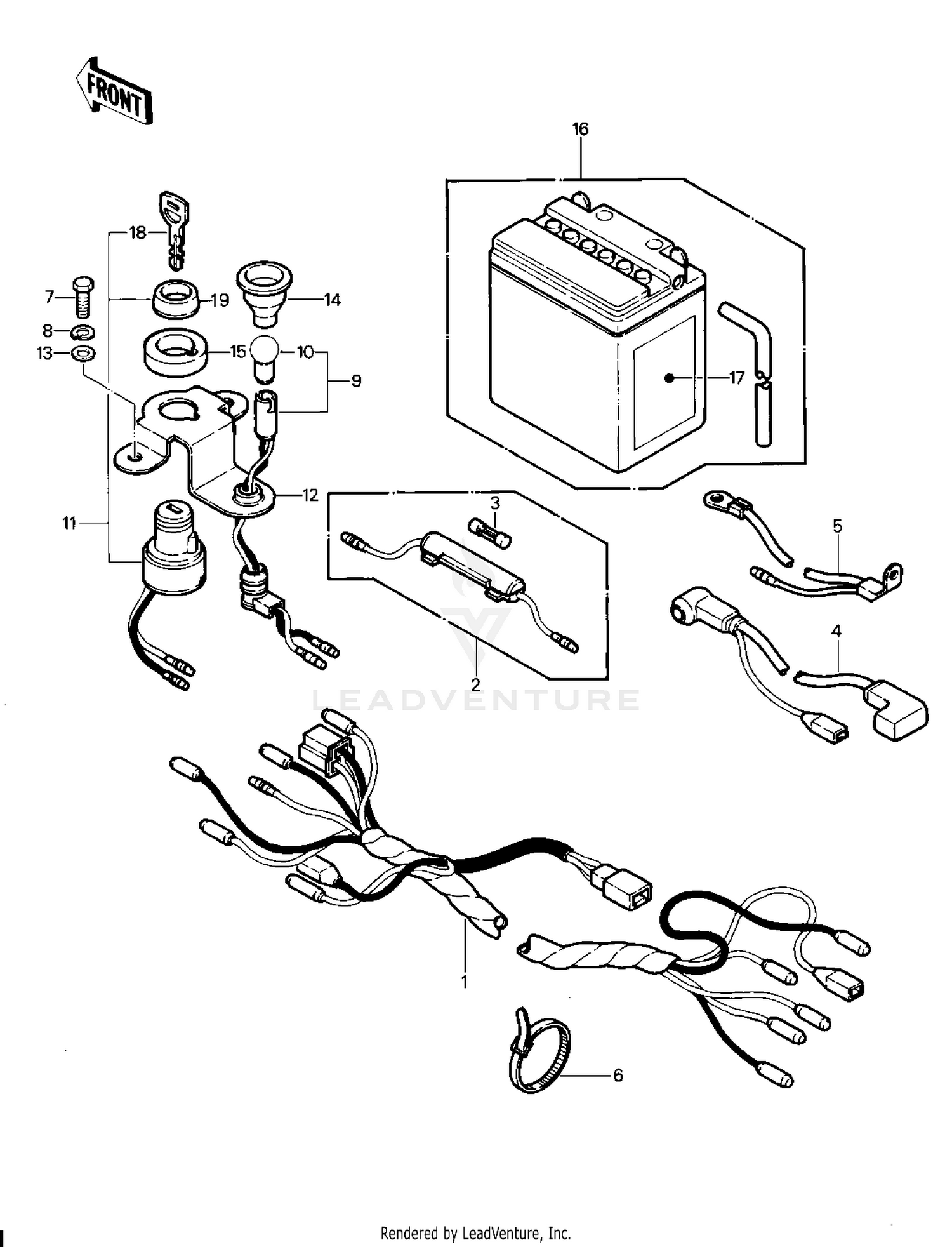

Chassis Electrical Equipment ('81-'82 Kl Diagram

Item	MSRP	Qty
#1 HARNESS,MAIN 26001-4007	$61.91
Available to order. Add to View Price
#1 HARNESS,MAIN 26001-4011	$41.27
Available to order. Add to View Price
#2 FUSE ASSY 26004-013	$15.71
Available to order. Add to View Price
#3 FUSE,GLASS TUBE,6.4X25,20 26006-005	$4.90
Available to order. Add to View Price
#4 WIRE,MAGNETIC SWITCH 26010-051	$33.13
Available to order. Add to View Price
#5 WIRE,BATTERY GROUND 26010-052	$20.71
Available to order. Add to View Price
#6 BAND 92072-3505	$1.55
Available to order. Add to View Price
#7 BOLT-UPSET 112B0614 Superseded by 112AA0614	$0.48
Available to order. Add to View Price
#8 WASHER-SPRING,6MM 461F0600 Superseded by 461DA0600	$0.69
Available to order. Add to View Price
#9 LAMP-ASSY,IGNITION 23016-1025	$22.98
Unavailable
#10 BULB 12V 3W 92069-018	$4.72
Available to order. Add to View Price
#11 SWITCH-ASSY-IGNITION 27005-1117	$133.14
Available to order. Add to View Price
#12 BRKT,SWITCH 32059-4001	$15.21
Available to order. Add to View Price
#13 WASHER,6.5X16X2 92022-1565	$3.80
Available to order. Add to View Price
#14 TUBE 92059-1559	$6.19
Unavailable
#15 DAMPER IGNITION SWITH 92075-4016	$7.04
Available to order. Add to View Price
#16 YUA BAT 12N10-3B 26012-050
Available to order. Add to View Price
#17 LABEL-WARNING,BATTERY 56040-1036	$3.18
Available to order. Add to View Price
#18 KEY-LOCK,BLANK 27008-1103	$19.59
Available to order. Add to View Price
#19 NUT,IGNITION SW LOCK 27007-004	$15.37
Available to order. Add to View Price
