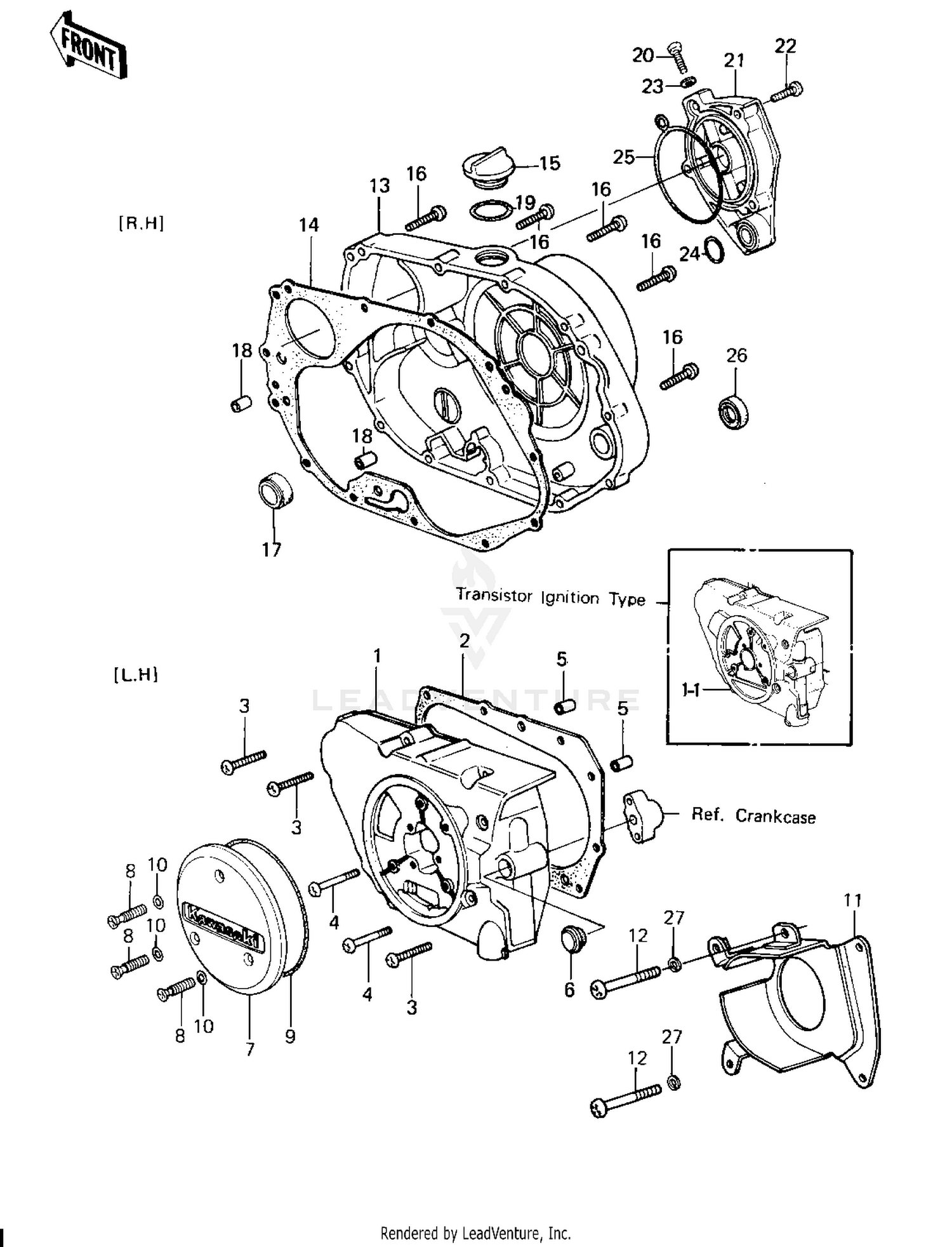

Engine Covers ('81-'82 Klt200-a1/a2/a3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER-GENERATOR
14031-1054
|
$175.43 | ||
|
Available to order. Add to View Price |
|||
|
#1-1
COVER-GENERATOR
14031-1067
|
$178.72 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,GENERATOR CVR
14045-031
Superseded by 11060-1473
|
$29.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW-PAN-CROS,6X30
220B0630
Superseded by 220AA0630
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW-PAN HEAD,6X55
220B0655
Superseded by 220AA0655
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW-PAN HEAD,6X60
220B0660
Superseded by 220AA0660
|
$1.86 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG
92066-065
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER,DYNAMO
14025-1239
|
$45.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW OVL CNTSK 6X25
222E0625
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING,DYNAMO COVER
92055-108
|
$14.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING,DYNAMO COVER
92055-109
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER-CHAIN
14026-1033
|
$67.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW-PAN-CROS,6X10
220B0610
Superseded by 220AA0610
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER,R.H.ENG,F.BLACK
14032-1036
|
$171.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET,CLUTCH COVER
11009-1235
Superseded by 11060-1583
|
$35.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP-OIL FILLER
16115-013
Superseded by 16115-1062
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW-PAN-CROS,6X30
220B0630
Superseded by 220AA0630
|
$3.55 | ||
|
Unavailable |
|||
|
#17
GAUGE,OIL LEVEL
52005-1009
|
$17.74 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Unavailable |
|||
|
#19
RING-O,31.5X2.6
92055-049
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT HEX HEAD 6X8
110B0608
|
$0.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER,FILTER,F.BLACK
14025-1102
|
$48.72 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-PAN-CROS,6X25
220B0625
Superseded by 220AA0625
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER,6.2X11X1
92022-304
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#24
O RING
92055-098
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#25
0 RING,FILTER COVER
92055-1048
|
$13.98 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
92050-078
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
