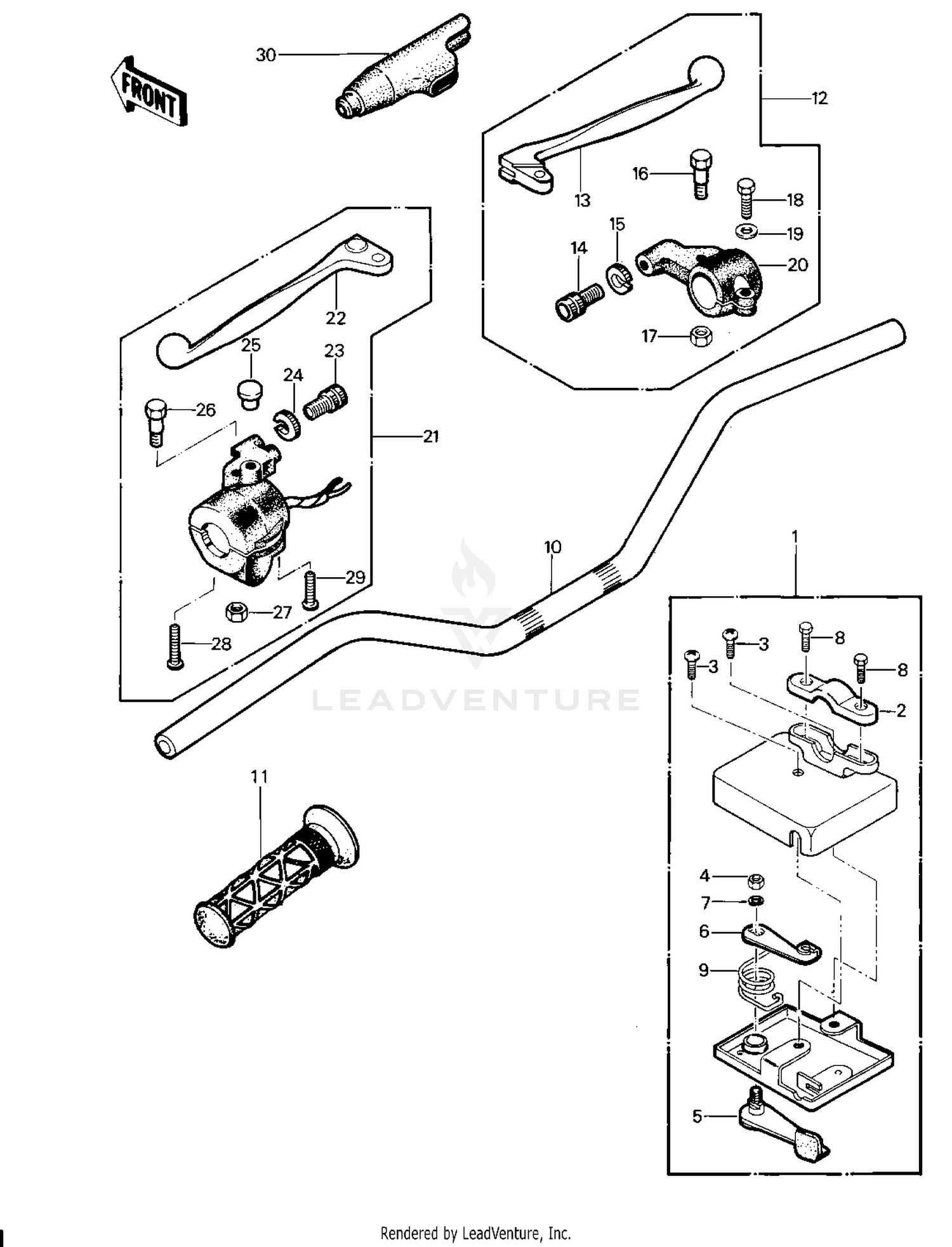

Handlebar ('83 Klt200-a4/a4a) Diagram

Item MSRP Qty
#1 LEVER-ASSY-THROTTLE
39074-4001
 $85.75
Available to order.
Add to View Price
#1 LEVER-ASSY-THROTTLE
39074-4002
 $46.54
Available to order.
Add to View Price
#2 HOLDER,THROTTLE LEVER
13091-4002
 $20.98
Available to order.
Add to View Price
#2 HOLDER,THROTTLE LEVER
13091-4017
 $8.31
Available to order.
Add to View Price
#3 SCREW-PAN-CROS,6X10
220B0610
Superseded by 220AA0610
 $3.14
Available to order.
Add to View Price
#3 SCREW-PAN-CROS,6X10
220C0610
Superseded by 220AB0610
 $1.76
Available to order.
Add to View Price
#4 NUT-HEX,6MM
311B0600
Superseded by 311AA0600
 $0.93
Available to order.
Add to View Price
#5 LEVER THROTTLE OUTER
39075-4001
 $23.53
Available to order.
Add to View Price
#5 LEVER-THROTTLE
39075-4003
 $23.53
Available to order.
Add to View Price
#6 LEVER THROTTLE INNER
39075-4002
 $6.09
Available to order.
Add to View Price
#7 WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
 $0.69
Available to order.
Add to View Price
#8 BOLT HEX HEAD
92001-4011
 $2.27
Available to order.
Add to View Price
#8 BOLT
92001-4024
 $3.15
Available to order.
Add to View Price
#9 SPRING RETURN
92081-4007
 $5.14
Available to order.
Add to View Price
#10 HANDLEBAR
46003-4004
 $82.87
Available to order.
Add to View Price
#10 HANDLE BAR-BEIGE
46003-4007-8M
 $37.69
Available to order.
Add to View Price
#11 GRIP,RH
46075-4001
 $15.80
Available to order.
Add to View Price
#12 LEVER ASSY,FRNT BRAKE
46021-025
 $79.24
Available to order.
Add to View Price
#12 LEVER-ASSY-GRIP
46076-4002
 $25.51
Available to order.
Add to View Price
#13 LEVER FRONT BRAKE
46058-004
 $23.96
Available to order.
Add to View Price
#13 LEVER-GRIP,BLACK
46092-4002
 $15.82
Available to order.
Add to View Price
#14 SCREW,CABLE ADJUST,8MM
46055-003
 $15.75
Available to order.
Add to View Price
#15 NUT,CABLE ADJUST LOCK,8MM
46056-005
 $8.55
Available to order.
Add to View Price
#16 BOLT,HEX HEAD,5X22
92007-046
 $7.36
Available to order.
Add to View Price
#16 BOLT
92001-4025
 $4.98
Available to order.
Add to View Price
#17 NUT-LOCK,5MM
92019-014
 $4.36
Available to order.
Add to View Price
#18 BOLT-UPSET
110N0625
Superseded by 112N0625
 $5.67
Available to order.
Add to View Price
#18 BOLT-UPSET,6X25
112C0625
Superseded by 112AB0625
 $2.60
Available to order.
Add to View Price
#19 WASHER-PLAIN-SMALL,6MM
410D0600
Superseded by 410S0600
 $0.77
Available to order.
Add to View Price
#19 WASHER-PLAIN-SMALL,6MM
410F0600
Superseded by 410AB0600
 $0.75
Available to order.
Add to View Price
#20 HOLDER,FR LEVER,F.BLK
46060-011-21
 $32.81
Available to order.
Add to View Price
#21 HOUSING-ASSY-CONTROL
46091-4001
 $233.12
Available to order.
Add to View Price
#21 HOUSING-ASSY-CONTROL.
46091-4005
 $116.01
Available to order.
Add to View Price
#22 LEVER,CLUTCH
46092-024
 $18.43
Available to order.
Add to View Price
#22 LEVER-GRIP,CLUTCH
46092-4001
 $17.68
Available to order.
Add to View Price
#23 SCREW,CABLE ADJUST,8MM
46055-003
 $15.75
Unavailable
#24 NUT,CABLE ADJUST LOCK,8MM
46056-005
 $8.55
Unavailable
#25 PLUG,9.5X8,POLYETHYLENE
92066-1077
 $4.50
Available to order.
Add to View Price
#26 BOLT,HEX HEAD,5X22
92007-046
 $7.36
Unavailable
#26 BOLT
92001-4025
 $4.98
Unavailable
#27 NUT-LOCK,5MM
92019-014
 $4.36
Unavailable
#28 SCREW,PAN HEAD,5X38
92009-1018
 $3.64
Available to order.
Add to View Price
#29 SCREW-PAN-CROS,5X25
220B0525
Superseded by 220AA0525
 $3.55
Available to order.
Add to View Price
#30 UNAVAILABLE IN PRICE BOOK
49006-1917
Unavailable
