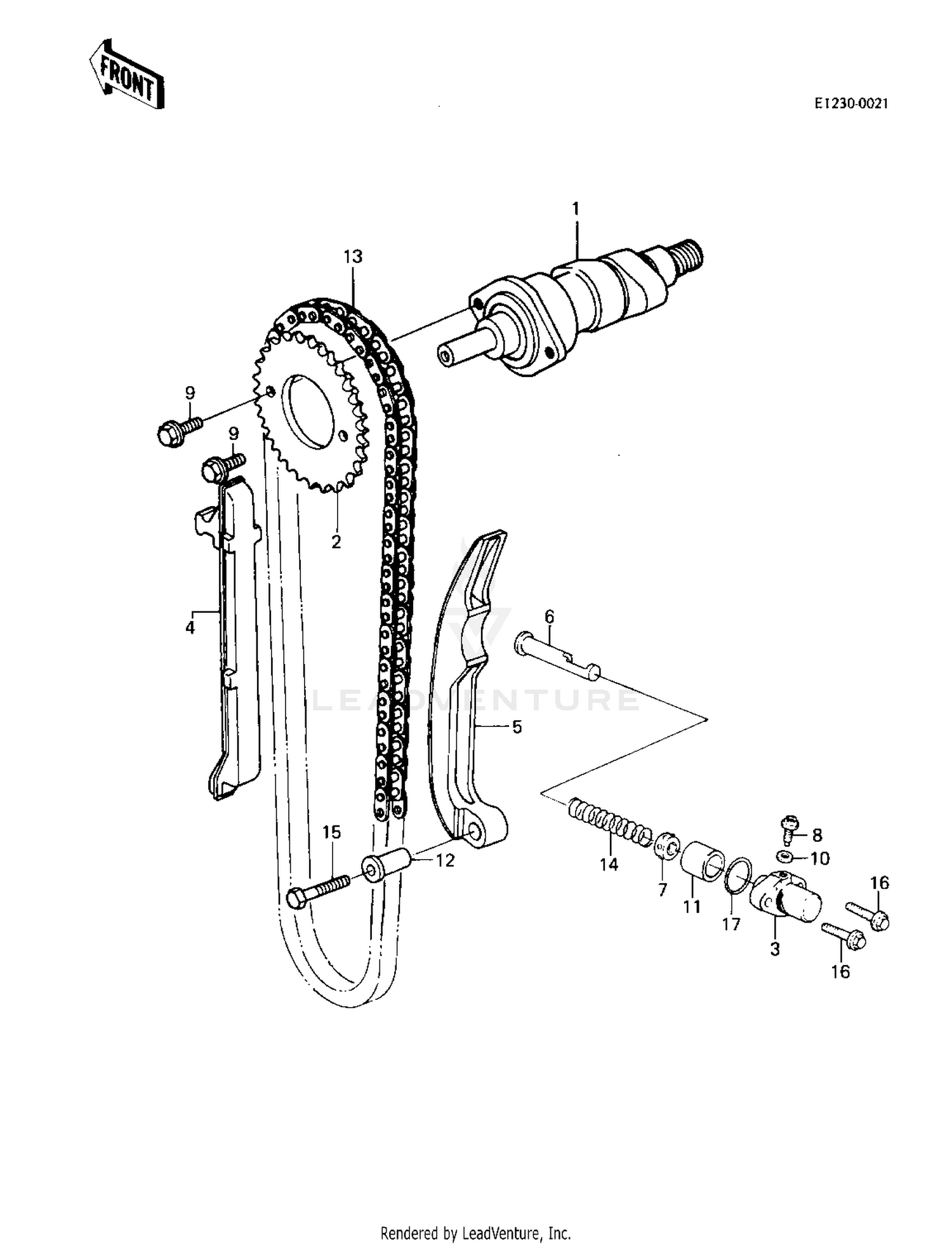

Camshaft/chain/tensioner ('83 Klt200-a4/ Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT,CAM
12044-1028
|
$323.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET,CAM SHAFT
12046-1007
|
$87.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONER,CAM CHAIN
12049-1008
|
$43.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
SLIPER,CAM CHAIN
12053-023
|
$34.74 | ||
|
Available to order. Add to View Price |
|||
|
#5
SLIPER,CAM CHAIN
12053-024
|
$47.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD,PUSH,CAM CHAIN
13116-1019
|
$15.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER
14020-1002
|
$16.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT,TENSIONER ADJUST
92001-1155
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT,FLANGED,6X11
92003-208
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR,TENSIONER
92027-1273
|
$31.34 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
92027-155
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
CHAIN,CAM
21070-013
|
$144.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING,TENSIONER
92081-1105
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-FLANGED,6X25
130G0625
Superseded by 130BA0625
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
O RING,22MM
670B2022
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
