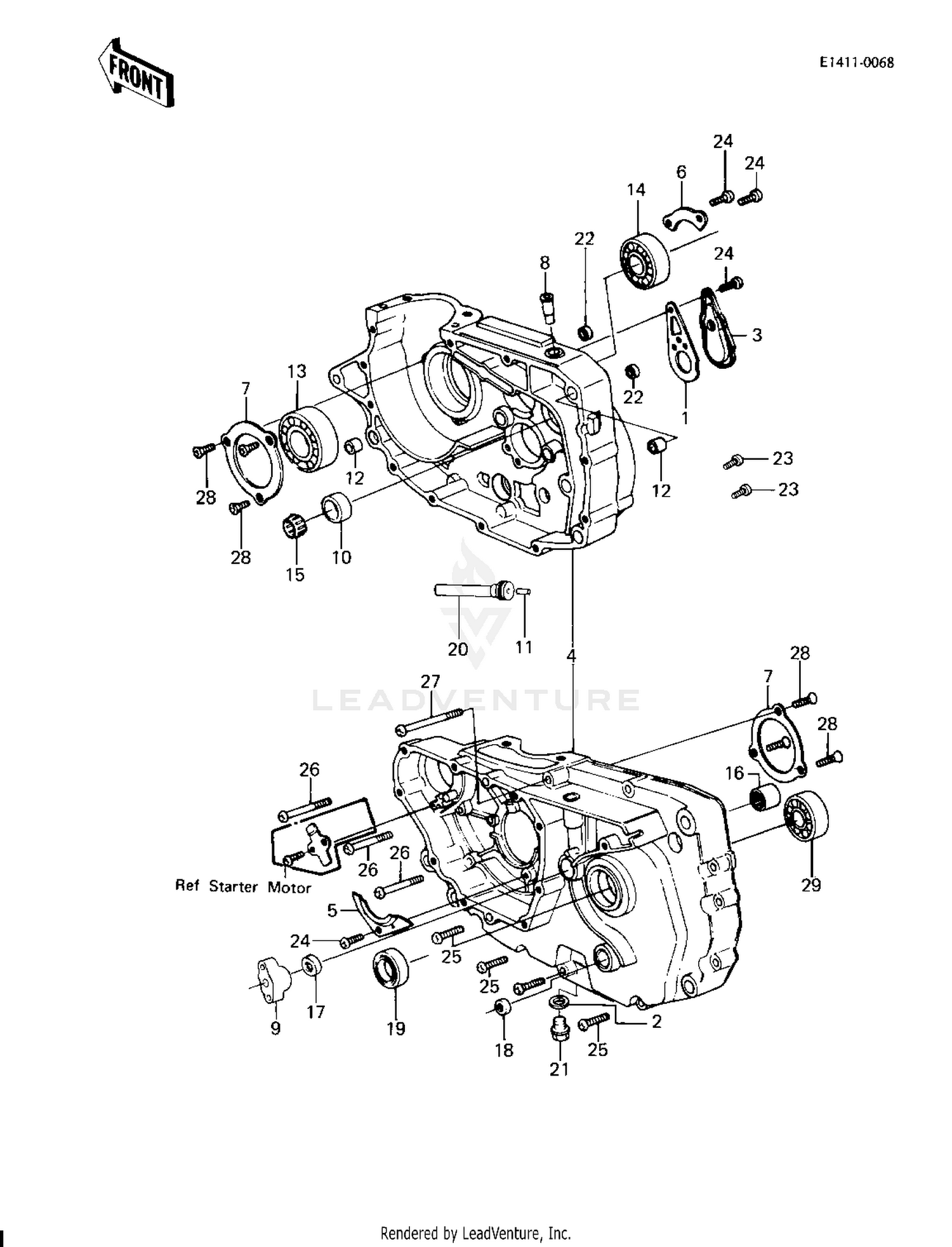

Crankcase ('83 Klt200-a4/a4a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET
16079-002
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,12X22X2
92065-097
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP
16078-002
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
SET-CHANKCASE
14001-5107
|
$503.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE,POSITIONING
14014-035
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE,POSITIONING
14014-037
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE,POSITIONING
14014-1004
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
FITTING,BREATHER
14067-006
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR,PUSH ROD
92027-1467
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSHING,23X30X13
92028-132
|
$36.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN,DOWEL,14MM
92042-032
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING,BALL,#6306
92045-037
|
$41.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING,BALL#6006
92045-038
|
$19.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING-NEEDLE,K17X23X13.8
92046-1184
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRG,NEEDLE,HMK1515B
92046-060
|
$17.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL,PUSH ROD
92050-077
|
$14.28 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL-OIL
92050-082
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL-OIL,TC32457
92049-1159
Superseded by 92049-1577
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE CRANKCASE
92059-1189
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG,OIL DRAIN,12X15
92066-1174
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG
92066-1282
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
UNAVAILABLE IN PRICE BOOK
220B0600
|
|||
|
Unavailable |
|||
|
#24
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-PAN-CROS,6X30
220B0630
Superseded by 220AA0630
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-PAN HEAD,6X55
220B0655
Superseded by 220AA0655
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW-PAN HEAD,6X75
220B0675
Superseded by 220AA0675
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW-CSK-CROS,6X16
221B0616
Superseded by 221AA0616
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING BALL #6205
601B6205
|
$19.08 | ||
|
Available to order. Add to View Price |
|||
