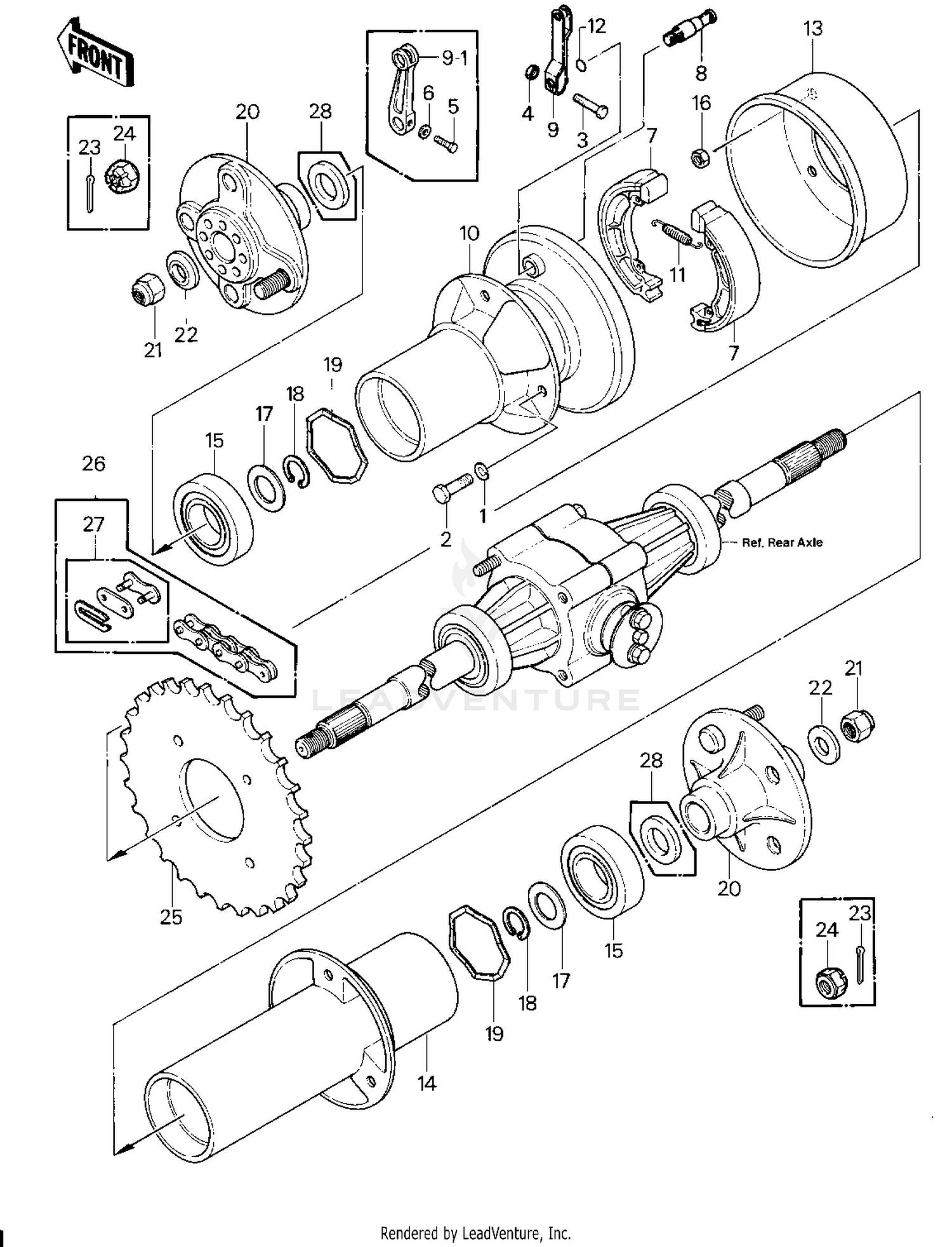

Rear Brake/chain ('81-'82 Klt200-a1/a2/a Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
92001-160
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT-HEX
312B0600
Superseded by 312AA0600
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT-UPSET
112G0622
Superseded by 112BA0622
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHOE-BRAKE
41048-1068
|
$26.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAM SHAFT,BRAKE
41050-1002
|
$47.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER BRAKE CAM
41053-1022
|
$124.57 | ||
|
Available to order. Add to View Price |
|||
|
#9-1
LEVER BRAKE CAM
41053-1022
|
$124.57 | ||
|
Unavailable |
|||
|
#10
PANEL,REAR BRAKE
42016-4001
|
$98.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING-BRAKE SHOE
42020-004
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#12
O RING,15MM
670B2015
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#13
DRUM
41038-4005
|
$42.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOUSING,BEARING
41046-4001
|
$86.72 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
601A6008UU
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT,HUB
92015-4012
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
92022-4009
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
RING,SNAP
92033-4003
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING,BEARING
92081-4013
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#20
HUB
49030-4001
|
$85.51 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT SELF LOCKING
92015-4011
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER,16X41X4.5
92022-230
Superseded by 92200-1273
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN-COTTER,4.0X30
550D4030
Superseded by 550AA4030
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
92015-4015
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPROCKET-HUB,50T
42041-4004
|
$95.68 | ||
|
Available to order. Add to View Price |
|||
|
#26
DR CHAIN 520X98
92057-106
|
$169.59 | ||
|
Available to order. Add to View Price |
|||
|
#27
CHAIN JOINT 520
92058-1001
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
92022-4020
|
$2.74 | ||
|
Available to order. Add to View Price |
|||
