1983 Kawasaki KLT200A4 Rear Axle ('83 Klt200-a4/a4a) OEM Parts

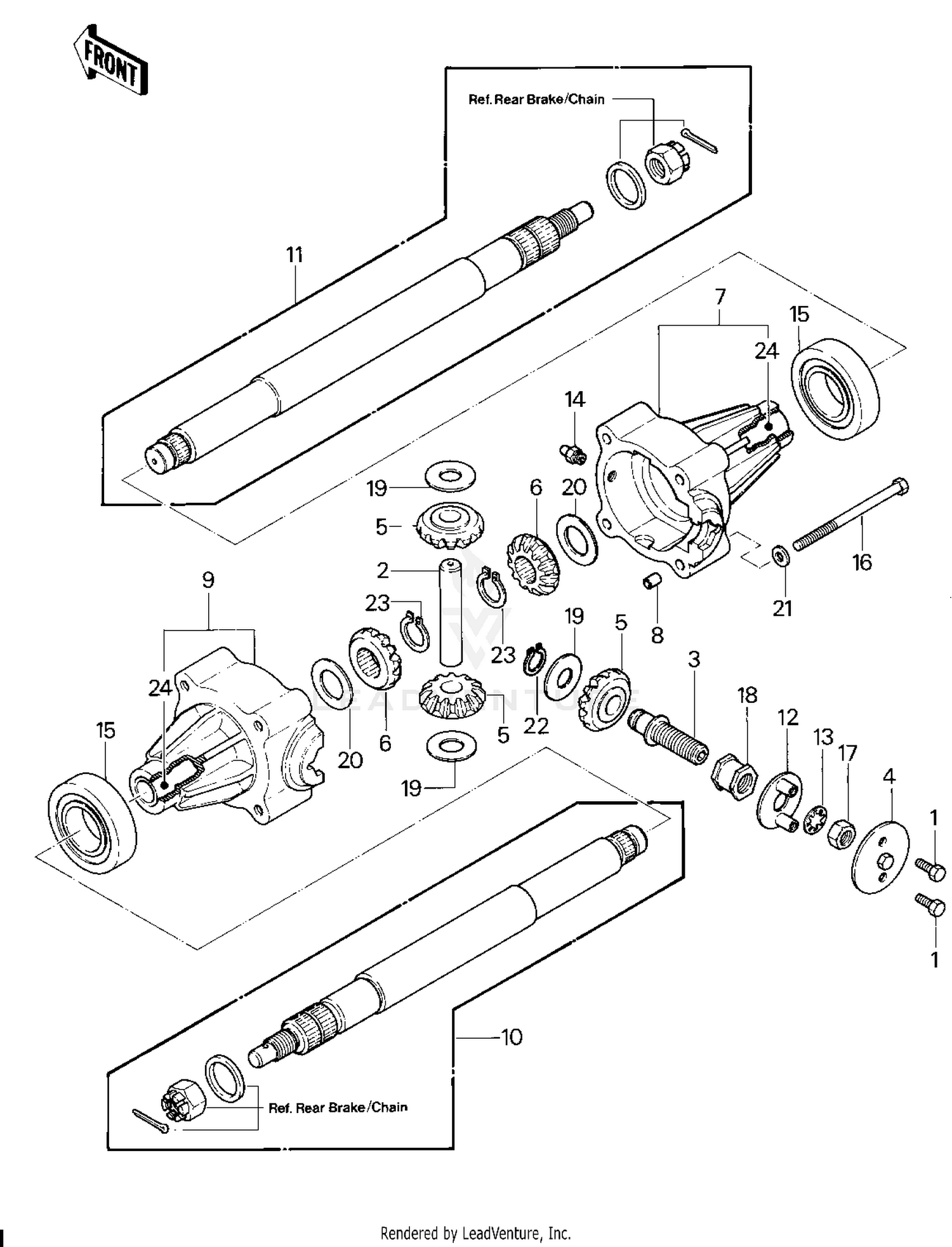

Rear Axle ('83 Klt200-a4/a4a) Diagram

Item	MSRP	Qty
#1 BOLT-FLANGED,6X12 130G0612 Superseded by 130BA0612	$1.69
Available to order. Add to View Price
#2 SHAFT 13107-4001	$19.11
Available to order. Add to View Price
#3 SHAFT 13107-4009	$17.84
Available to order. Add to View Price
#4 PLATE LOCKING 13169-4011	$19.00
Available to order. Add to View Price
#5 GEAR 16085-4003	$23.57
Available to order. Add to View Price
#6 GEAR 16085-4004	$28.09
Available to order. Add to View Price
#7 CASE-GEAR,RIGHT 32099-4010	$71.17
Available to order. Add to View Price
#8 PIN,10.1X12X14 92043-4009	$6.02
Available to order. Add to View Price
#9 CASE-GEAR,LEFT 32099-4009	$71.02
Available to order. Add to View Price
#10 AXLE ASSY,LH 13.45" 41067-4009	$79.95
Available to order. Add to View Price
#11 AXLE ASSY,RH 17.24" 41067-4008	$79.80
Available to order. Add to View Price
#12 FLANGE,AXLE 41086-4006	$36.36
Available to order. Add to View Price
#13 WASHER,TOOTHED,16M/M 463H1600	$6.12
Available to order. Add to View Price
#14 NIPPLE,GREASE 49001-4001	$2.27
Available to order. Add to View Price
#15 BEARING 601A6008UU	$58.99
Available to order. Add to View Price
#16 BOLT,10X103 92001-1842	$11.24
Available to order. Add to View Price
#17 NUT 92015-4009	$0.98
Available to order. Add to View Price
#18 NUT 92015-4013	$6.83
Available to order. Add to View Price
#19 WASHER 92022-4008	$0.98
Available to order. Add to View Price
#20 WASHER 92022-4009	$1.40
Available to order. Add to View Price
#21 WASHER-PLAIN-SMALL,10MM 410B1000 Superseded by 410AA1000	$0.58
Available to order. Add to View Price
#22 RING 92033-4001	$1.80
Available to order. Add to View Price
#23 RING,SNAP 92033-4002	$1.58
Available to order. Add to View Price
#24 BUSHING 92028-4003	$9.14
Available to order. Add to View Price
