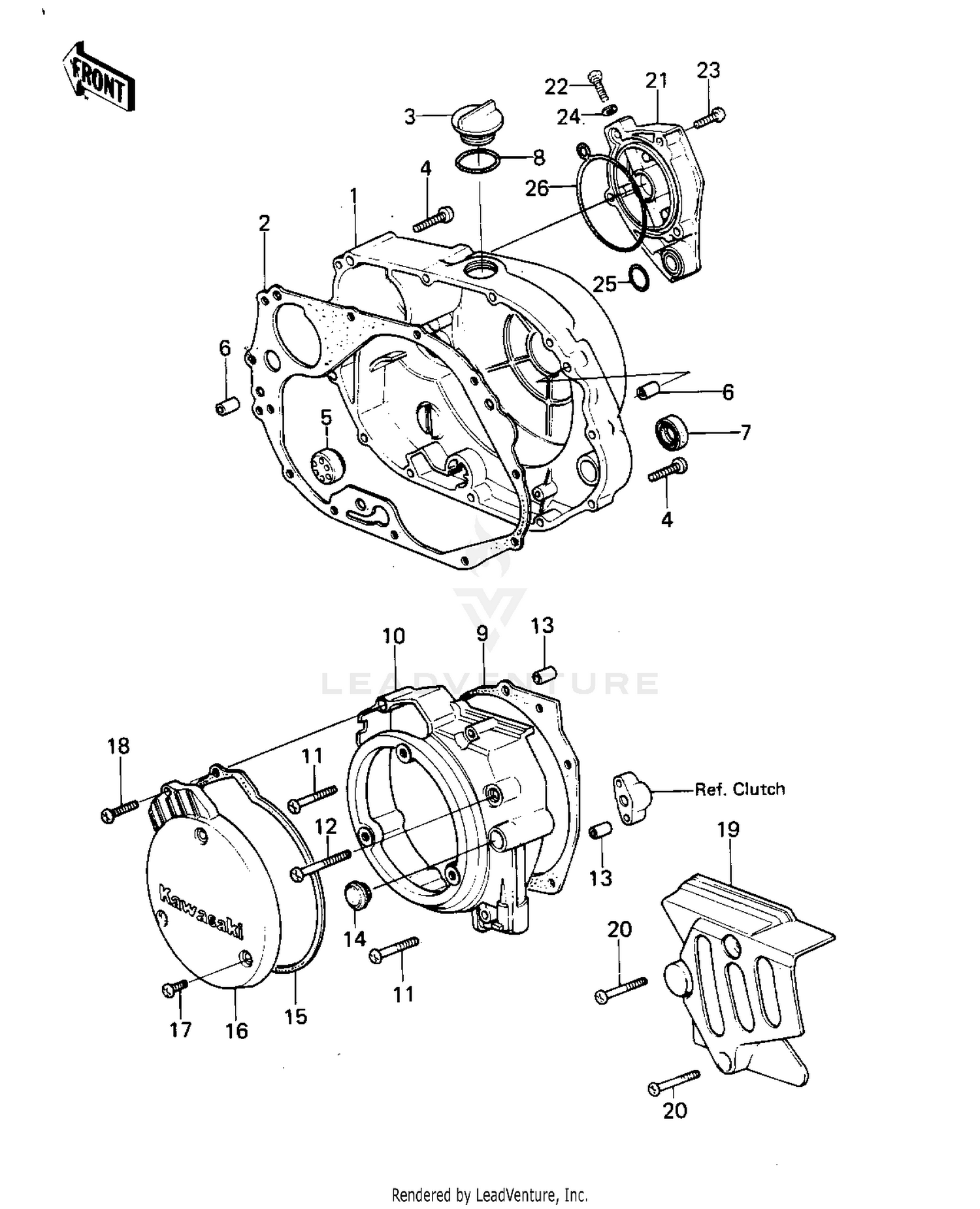

Engine Covers Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,R.H.ENG,F.BLACK
14032-1036
|
$171.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,CLUTCH COVER
11009-1235
Superseded by 11060-1583
|
$35.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP-OIL FILLER
16115-013
Superseded by 16115-1062
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW-PAN-CROS,6X30
220B0630
Superseded by 220AA0630
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
GAUGE,OIL LEVEL
52015-004
|
$46.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
92050-078
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING-O,31.5X2.6
92055-049
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET,GENERATOR COVR
11009-1009
Superseded by 11060-1514
|
$28.01 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER,GENERATOR,F.BLK
14031-1033
|
$160.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-PAN HEAD,6X40
220B0640
Superseded by 220AA0640
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW-PAN-CROS,6X50
220B0650
|
$0.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Unavailable |
|||
|
#14
PLUG
92066-065
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET,GENERATOR CVR
11009-1121
Superseded by 11060-1517
|
$20.86 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER,GENERATOR,F.BLK
14025-1104
|
$97.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW-PAN-CROS,6X25
220B0625
Superseded by 220AA0625
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER,CHAIN,BLACK
14026-1022
|
$20.97 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-PAN-CROS,6X50
220B0650
|
$0.97 | ||
|
Unavailable |
|||
|
#21
COVER,FILTER,F.BLACK
14025-1102
|
$48.72 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT HEX HEAD 6X8
110B0608
|
$0.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW-PAN-CROS,6X25
220B0625
Superseded by 220AA0625
|
$2.70 | ||
|
Unavailable |
|||
|
#24
WASHER,6.2X11X1
92022-304
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
O RING
92055-098
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#26
0 RING,FILTER COVER
92055-1048
|
$13.98 | ||
|
Available to order. Add to View Price |
|||
