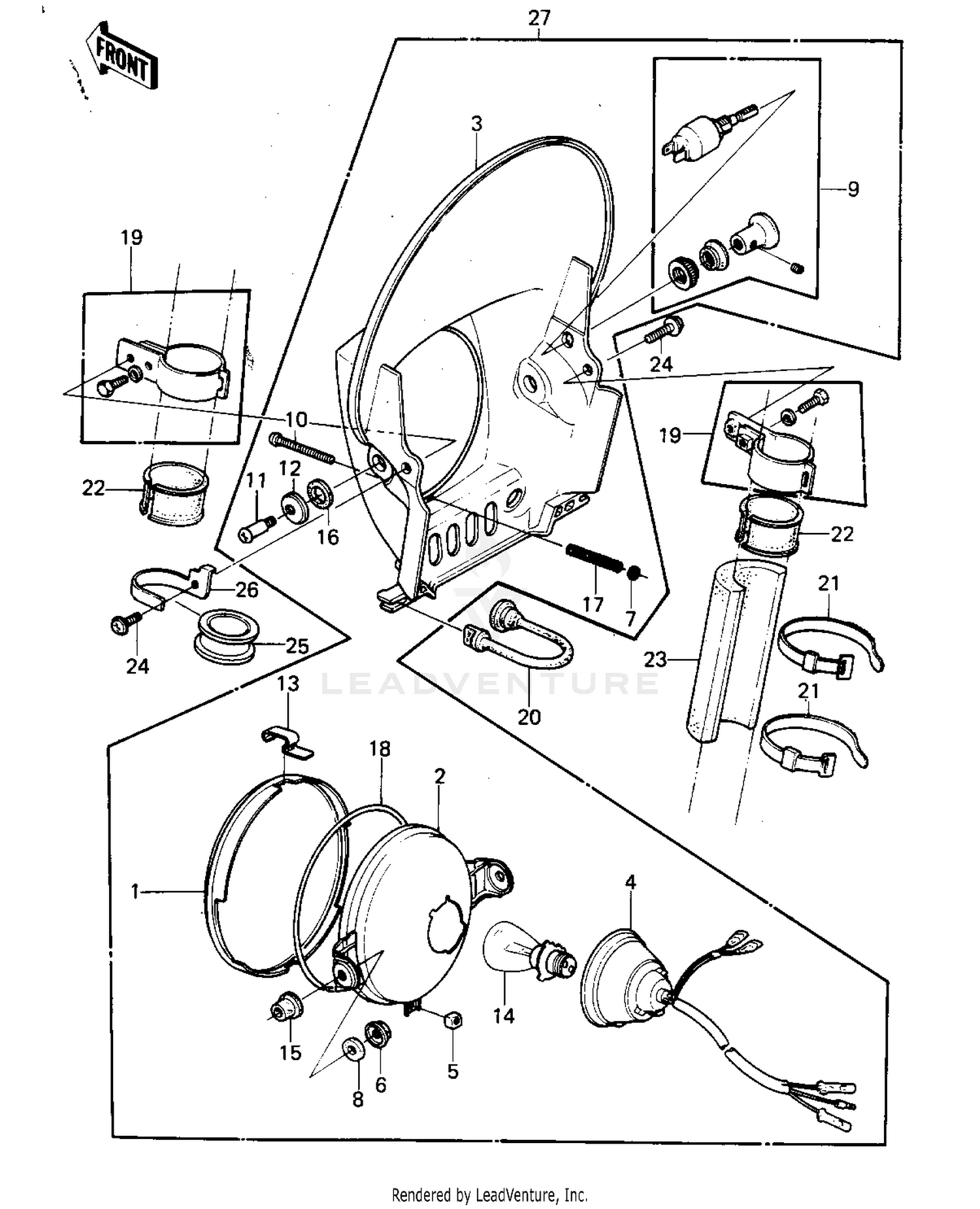

Headlight (optional For Klx250-a1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,HEAD LAMP
14025-4002
|
$27.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
LAMP,HEAD
23004-4001
|
$49.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
BODY-COMP-HEAD LAMP,L
23005-5002-7F
|
$167.81 | ||
|
Available to order. Add to View Price |
|||
|
#4
SOCKET,HEAD LAMP
23008-4001
|
$89.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT,4MM,FOCUS ADJUST
23020-018
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT,HEAD LAMP RIM FIT
23020-023
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
23021-004
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-PLAIN,5MM
23021-012
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH,HEAD LAMP
27004-4001
|
$85.79 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW,ADJUSTING,4X43
92009-4002
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW,HEAD LAMP
92009-4003
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER,HEAD LAMP
92022-4005
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP,HEAD LAMP
92037-4001
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB,6V 35/25W
92069-4001
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER,HEAD LAMP
92075-4009
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER,HEAD LAMP
92075-4010
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING,FOCUS ADJUSTNG
92081-4003
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL,HEAD LAMP
92093-4001
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
*** N.L.A.*** (Canada)
11034-1583
|
$0.12 | ||
|
Unavailable |
|||
|
#20
BAND,HEAD LAMP
92072-077
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND,L=292.1
92072-4003
Superseded by 92072-3509
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#22
92075-1236 (Canada)
92075-1206
|
$2.21 | ||
|
Unavailable |
|||
|
#23
92075-1236 (Canada)
92075-1207
|
$2.21 | ||
|
Unavailable |
|||
|
#24
SCREW,6X14
92009-1287
Superseded by 92172-0401
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#25
CABLE GUIDE,HEAD LAMP
13070-4001
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP, CABLE GUIDE
92037-4002
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
HEAD LAMP ASSY
23001-4001
|
$209.46 | ||
|
Available to order. Add to View Price |
|||
