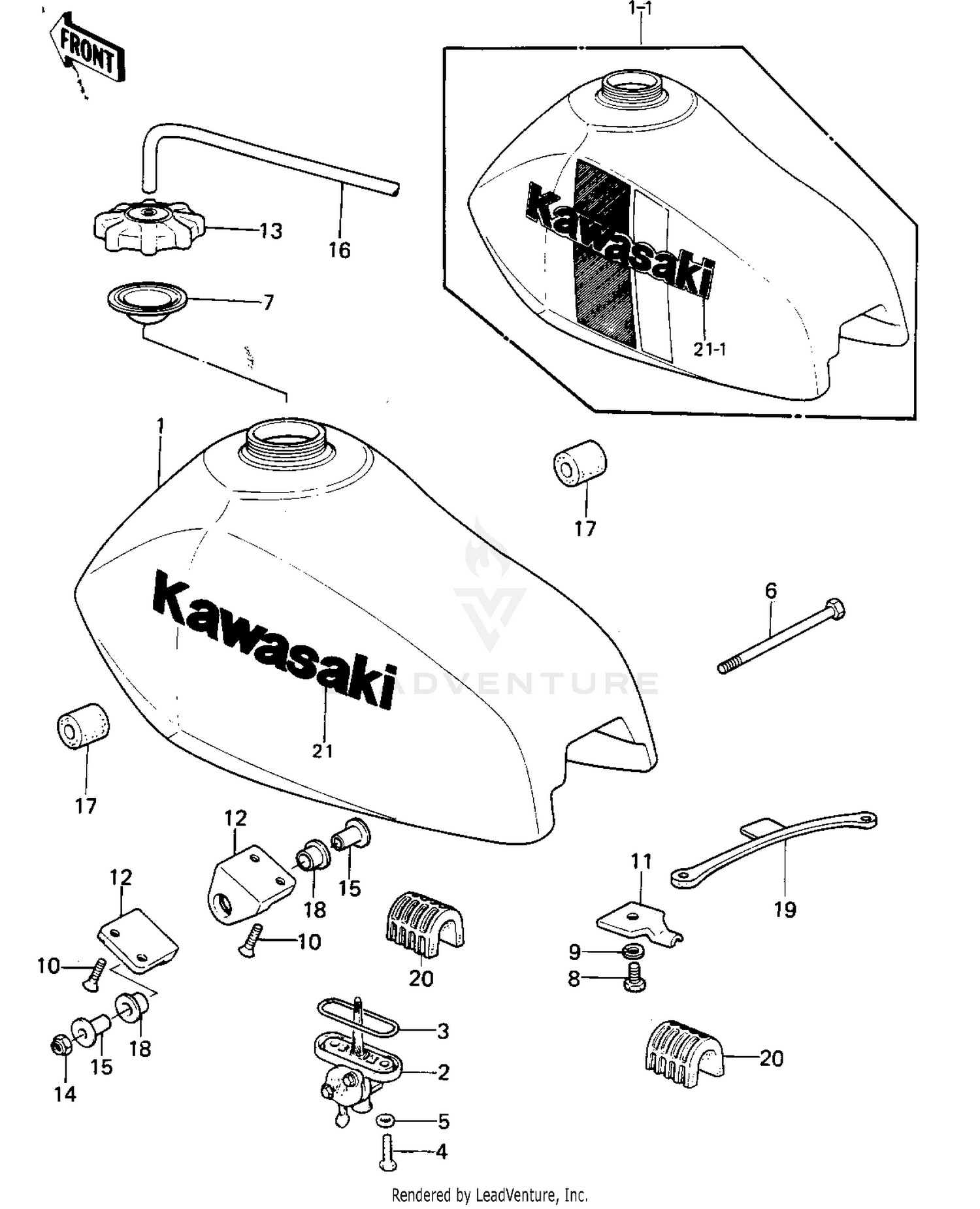

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK-FUEL,L.GREEN
51001-1080-6W
|
$443.57 | ||
|
Available to order. Add to View Price |
|||
|
#1-1
TANK-FUEL,L.GREEN
51001-5106-6W
|
$312.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
COCK ASSY,FUEL
51023-4002
|
$28.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
O RING
51039-003
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,6X20
92001-1091
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER,6.2X11X1.5
92022-183
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT-UPSET,6X105
112G06105
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET,FUEL TANK
11009-1452
|
$21.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT-UPSET,6X10
112G0610
Superseded by 112BA0610
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW-CSK-CROS,6X14
221B0614
Superseded by 221AA0614
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET,FUEL TANK
32052-1009
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET,FUEL TANK
32052-1010
|
$48.46 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP-TANK,FUEL
51049-1006
|
$32.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT,LOCK,6MM
92019-008
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER,FUEL TANK
92026-1015
|
$13.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE,VINYL
92059-1022
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER RUBBER,FUEL
92075-1047
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER RUBBER,FUEL
92075-1048
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND,FUEL TANK
92072-1033
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER RUBBER,FUEL
92075-1027
|
$11.62 | ||
|
Available to order. Add to View Price |
|||
|
#21
DECAL,FUEL TANK
56014-1023
|
$23.66 | ||
|
Available to order. Add to View Price |
|||
|
#21-1
EMBLEM,LH
56014-4005
|
$22.34 | ||
|
Available to order. Add to View Price |
|||
|
#21-1
EMBLEM,RH
56014-4006
|
$37.24 | ||
|
Available to order. Add to View Price |
|||
